Electronic
Patents tagged Electronic
Apr 14, 2026
An electronic shooting training target has a target seat, and multiple target holes penetrate through the target seat. A base plate includes a plate body, multiple triggers and a controller. The base plate is mounted on a rear side of the target seat and positioned at a distance from the rear side. Each of the sensing assemblies has a hollow rod, an elastic part, an impact part, and a screw. The hollow rod is mounted through one of the target holes. The elastic part is sleeved on one end of the hollow rod. The impact part is mounted on the hollow rod. The screw is mounted through another end of the hollow rod and is fixed on the impact part.
Mar 31, 2026
A device and a method thereof for operating an electronic detonator having a response relay function are proposed. The device includes a command signal reception unit configured to receive a command signal transmitted from a blasting control system, a response signal transmission unit configured to transmit a response signal responsive to the received command signal to the blasting control system, and a response signal delivery unit configured to transmit the corresponding response signal to the blasting control system when a response signal of another electronic detonator adjacent within a preset distance is recognized.
Oct 28, 2025
The present disclosure provides techniques, systems, and devices that support indicating gun state information. One or more electronic components may be used to indicate the gun state information, and the electronic components may be coupled with a gun. The gun may identify a state of the gun based on a compute component including a data signal, and the compute component may be coupled with the gun. The gun may select a representation of the state of the gun, where the representation of the state of the gun is compatible with an electronic component coupled with the gun. The gun may indicate, at the electronic component and based on the compute component, the state of the gun with the representation of the state of the gun. Indicating the state of the gun may include displaying an icon, illuminating the electronic component with a color, or pulsating the electronic component.
Aug 12, 2025

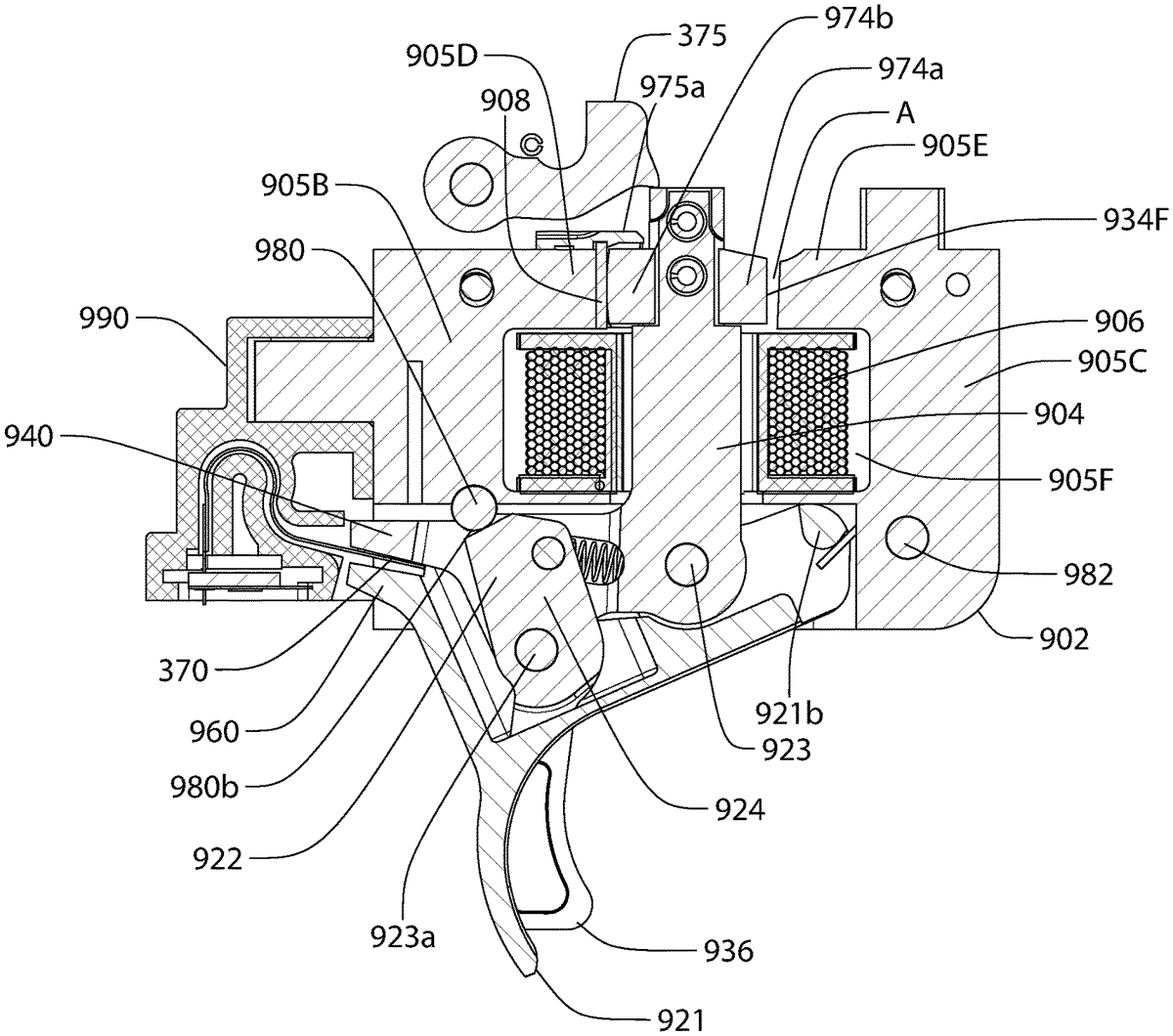

An electronic trigger system with safety mechanism for firearms includes a trigger unit comprising an electromagnetic actuator operably coupled to the firing mechanism and a programmable trigger mechanism microcontroller. The actuator is changeable between a non-powered unactuated position and powered actuated firing position via pulling both an outer trigger and inner safety trigger of the trigger unit. The actuator is operably interfaced with a movable firing component of the firing mechanism operable to discharge the firearm. In a blocking position of the safety trigger, the safety trigger is configured to block outer trigger movement which prevents energizing and actuating the electromagnetic actuator thereby preventing the firearm from discharging. Conversely in an unblocking position, the safety trigger allows outer trigger movement sufficient to discharge the firearm by either energizing the actuator when a pre-selected trigger pull force threshold is applied or applying sufficient trigger force to manually trip the actuator.
