US12698952 - Embedded target tracking training

The present invention relates to a method for embedded combat vehicle gun target tracking training performed at an electronic device, an electronic device for performing the method and a computer readable storage medium storing one or more programs for performing the method. The method comprises determining a trajectory of a virtual target for a period of time; determining an aim point location of the weapon system; displaying, on a display device, a first and second graphical object overlaid onto an image sequence, wherein the first graphical object represents an aim point location of the weapon system and wherein the second graphical object represents a virtual target which moves along the determined trajectory. User inputs are received representative of control signals for causing weapon system movements and the second graphical object is updated based on the weapon system movements.

Assignee: Bae Systems Hägglunds Aktiebolag
Inventors: Johan Persson, Karin Fossum Sjödin, Jerker Wågberg
Filing date: 2021-02-01

trainingcombattrackingelectronicdevice

The invention provides a method and electronic device for target tracking training in combat vehicles, utilizing a display to show a virtual target’s trajectory and the weapon system’s aim point. The system updates graphical representations based on user inputs that control the weapon’s pointing direction, enhancing training effectiveness.

Claim 1

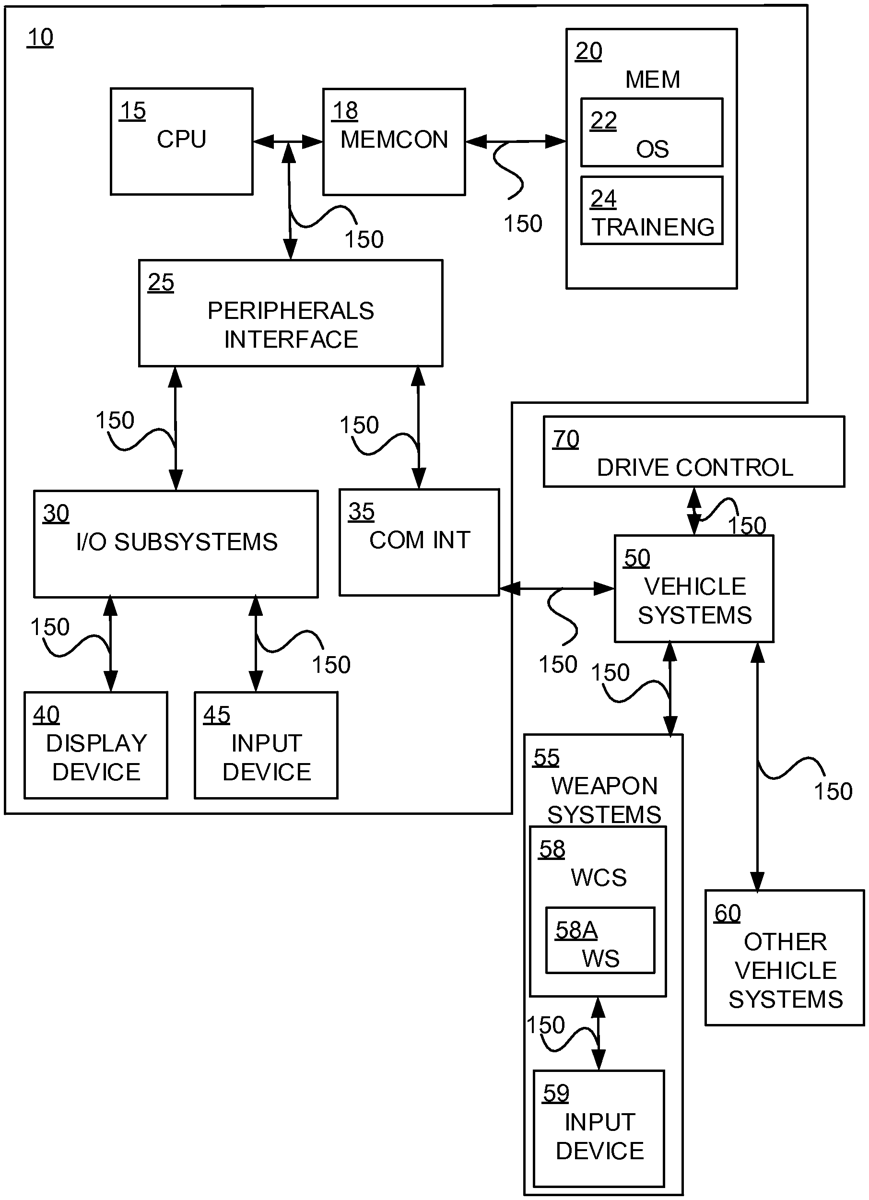

1 . A method at a combat vehicle for embedded combat vehicle weapon system target tracking training performed at the combat vehicle, the method comprising: at an electronic device embedded within the combat vehicle and electrically coupled to a communication bus of the combat vehicle, the electronic device comprising a processor and a display device arranged within the combat vehicle, the electronic device configured to receive sensor data from a weapon control system via the communication bus: determining, by the processor, a trajectory of a virtual target for a period of time; determining, by the processor, an aim point location of the weapon system of the combat vehicle based on a current pointing direction of the weapon system along an azimuth and an elevation direction, wherein the current pointing direction is determined from the sensor data received from the weapon control system; obtaining an image sequence of a sight camera associated with the weapon system of the combat vehicle via the communication bus: displaying, on the display device: said image sequence; a first graphical object, overlaid on the image sequence, wherein the first graphical object is representative of the aim point location and displayed on a first position on the display device to indicate the determined aim point location of the weapon system; and a second graphical object, overlaid on the image sequence, wherein the second graphical object is representative of the virtual target and displayed on a second position on the display device to indicate a starting position of the virtual target based on the determined trajectory over the period of time; while displaying the graphical objects on the display device: updating display of the second graphical object by moving the second graphical object from the second position along the determined trajectory over the period of time; and receiving one or more user inputs from an aiming handle of the weapon control system, the one or more user inputs representative of one or more control signals causing movement of the pointing direction of the weapon system along the azimuth and/or the elevation direction; in response to receiving the one or more user inputs, updating display of the first graphical object by moving the first graphical object from the first position in accordance with the movement of the pointing direction of the weapon system caused by the one or more user inputs. at an electronic device embedded within the combat vehicle and electrically coupled to a communication bus of the combat vehicle, the electronic device comprising a processor and a display device arranged within the combat vehicle, the electronic device configured to receive sensor data from a weapon control system via the communication bus: determining, by the processor, a trajectory of a virtual target for a period of time; determining, by the processor, an aim point location of the weapon system of the combat vehicle based on a current pointing direction of the weapon system along an azimuth and an elevation direction, wherein the current pointing direction is determined from the sensor data received from the weapon control system; obtaining an image sequence of a sight camera associated with the weapon system of the combat vehicle via the communication bus: displaying, on the display device: said image sequence; a first graphical object, overlaid on the image sequence, wherein the first graphical object is representative of the aim point location and displayed on a first position on the display device to indicate the determined aim point location of the weapon system; and a second graphical object, overlaid on the image sequence, wherein the second graphical object is representative of the virtual target and displayed on a second position on the display device to indicate a starting position of the virtual target based on the determined trajectory over the period of time; said image sequence; a first graphical object, overlaid on the image sequence, wherein the first graphical object is representative of the aim point location and displayed on a first position on the display device to indicate the determined aim point location of the weapon system; and a second graphical object, overlaid on the image sequence, wherein the second graphical object is representative of the virtual target and displayed on a second position on the display device to indicate a starting position of the virtual target based on the determined trajectory over the period of time; while displaying the graphical objects on the display device: updating display of the second graphical object by moving the second graphical object from the second position along the determined trajectory over the period of time; and receiving one or more user inputs from an aiming handle of the weapon control system, the one or more user inputs representative of one or more control signals causing movement of the pointing direction of the weapon system along the azimuth and/or the elevation direction; in response to receiving the one or more user inputs, updating display of the first graphical object by moving the first graphical object from the first position in accordance with the movement of the pointing direction of the weapon system caused by the one or more user inputs. updating display of the second graphical object by moving the second graphical object from the second position along the determined trajectory over the period of time; and receiving one or more user inputs from an aiming handle of the weapon control system, the one or more user inputs representative of one or more control signals causing movement of the pointing direction of the weapon system along the azimuth and/or the elevation direction; in response to receiving the one or more user inputs, updating display of the first graphical object by moving the first graphical object from the first position in accordance with the movement of the pointing direction of the weapon system caused by the one or more user inputs.
