US12644679 - Electronic target with MEMS sensor

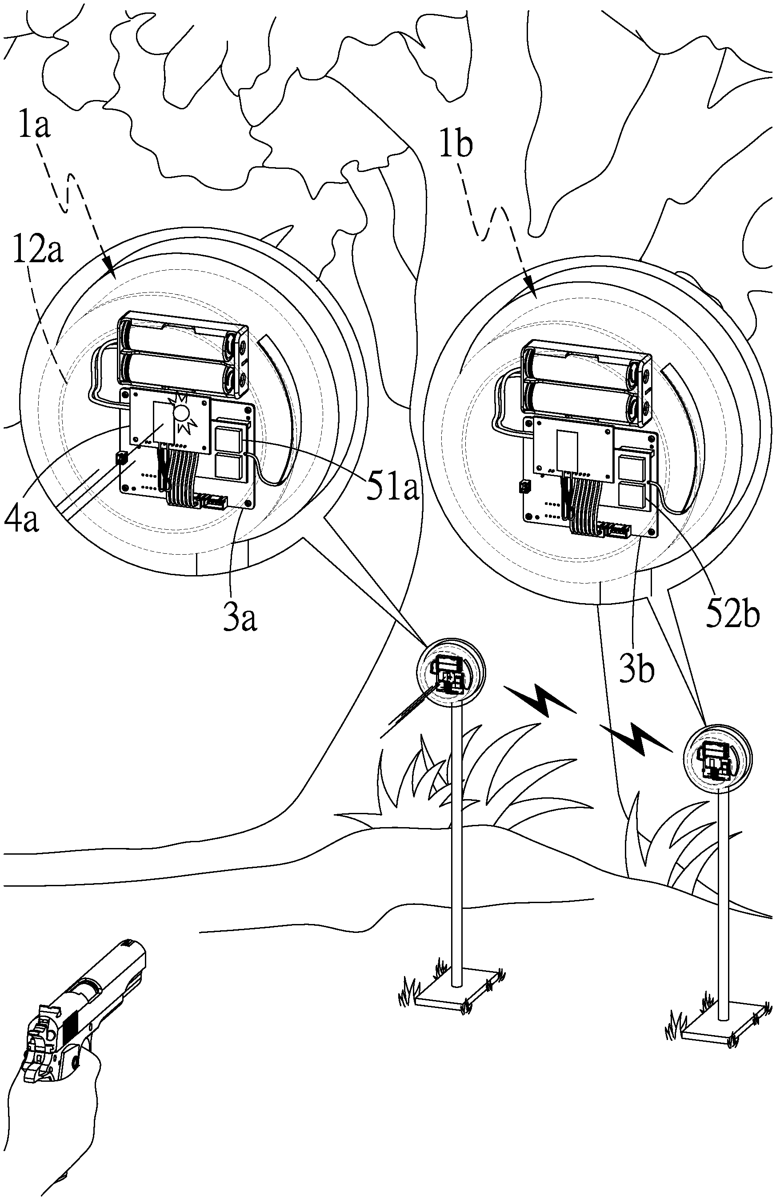

The electronic target includes a main member having a target base and a front plate, a power element inside the target base, a main control device inside the target base and electrically connected to the power element, a MEMS sensor device behind the front plate and electrically connected to the main control device, and a wireless control device mounted on and electrically connected to the main control device. By leveraging the MEMS sensor device and the power element, the assembly and deployment of the electronic target becomes straightforward and less susceptible to damage. Moreover, the use of wireless communications relieves limitation by the venue and reduces susceptibility to interference. This simplifies the configuration and setup process for interactions between targets, achieving increased variability in shooting modes and enhancing entertainment or training effectiveness.

Assignee: GUAY GUAY TRADING CO., LTD.
Inventors: Yin-Hsi Liao
Filing date: 2023-08-24

electronictargetsensormemswireless

The patent describes an electronic target system that incorporates a MEMS sensor and wireless communication capabilities, allowing for easy deployment and reduced susceptibility to damage and interference. This innovation enhances the variability of shooting modes, improving both training and entertainment experiences.

Claim 1

1 . An electronic target, comprising: a main member having a target base and a front plate joined to a front opening of the target base; a power element inside the target base; a main control device inside the target base and electrically connected to the power element; a MEMS (Micro Electro Mechanical Systems) sensor device behind the front plate and electrically connected to the main control device; and a wireless control device mounted on and electrically connected to the main control device, where the wireless control device comprises a radio transmitter for transmitting wireless signals and a radio receiver for receiving wireless signals from another electronic target, and the wireless signals operate within a frequency range of 868 MHz to 1 GHz. a main member having a target base and a front plate joined to a front opening of the target base; a power element inside the target base; a main control device inside the target base and electrically connected to the power element; a MEMS (Micro Electro Mechanical Systems) sensor device behind the front plate and electrically connected to the main control device; and a wireless control device mounted on and electrically connected to the main control device, where the wireless control device comprises a radio transmitter for transmitting wireless signals and a radio receiver for receiving wireless signals from another electronic target, and the wireless signals operate within a frequency range of 868 MHz to 1 GHz.
