US12747926 - Rifle tripod support assembly

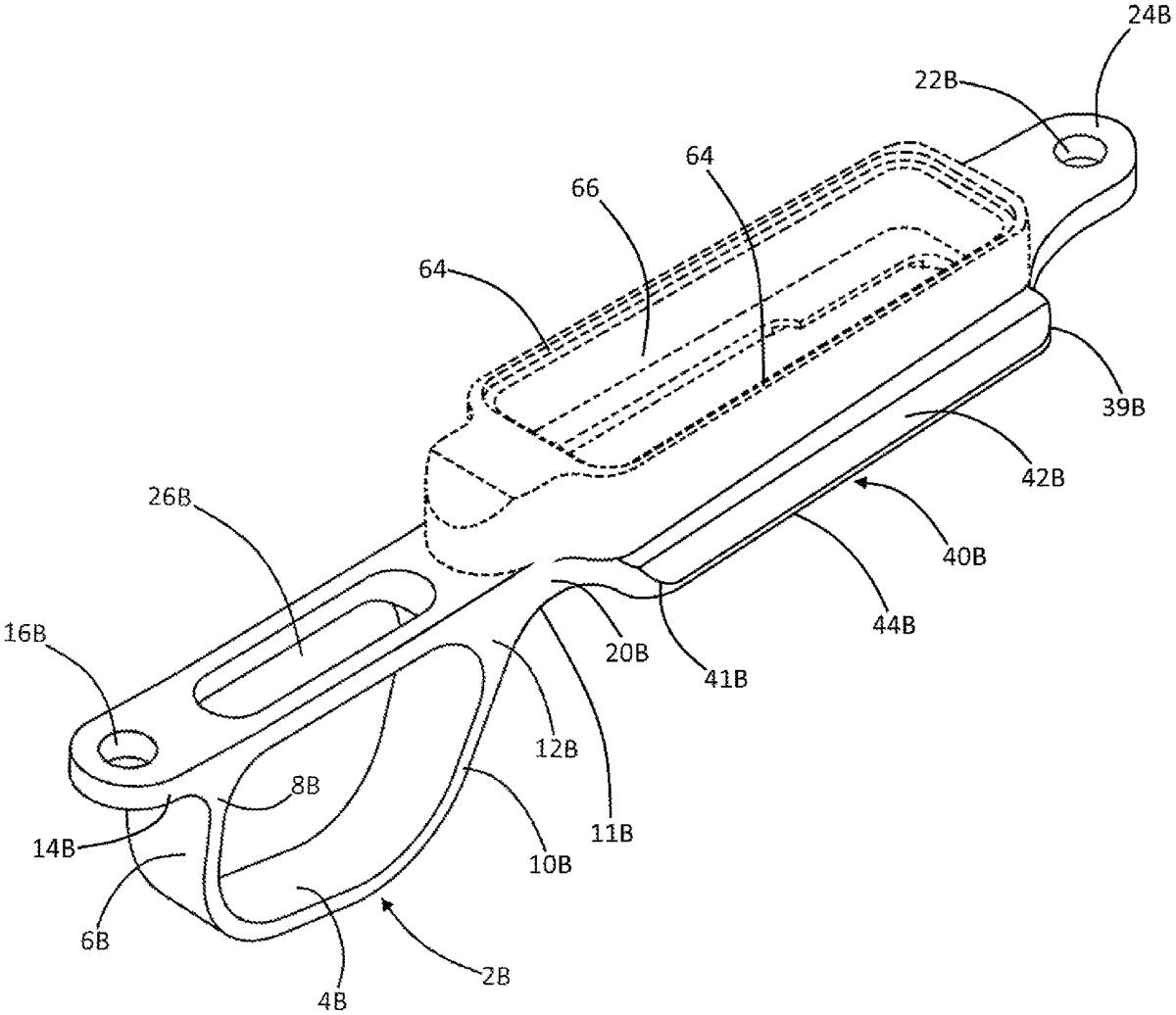

A rifle support assembly incorporating a trigger guard mounting flange having breechward and muzzleward ends; a first tail having a breechward end and a muzzleward end, the first tail's breechward end being positioned muzzlewardly from the flange's breechward end and the first tail's muzzleward end being positioned breechwardly from the flange's muzzleward end, the first tail being fixedly attached to and extending leftwardly from the flange; and a second tail having breechward and muzzleward ends, the second tail's breechward end being positioned muzzlewardly from the flange's breechward end and the second tail's muzzleward end being positioned breechwardly from the flange's muzzleward end, the second tail being fixedly attached to and extending rightwardly from the flange.

Inventors: Shawn Batten
Filing date: 2023-12-01

rifletripodsupportassembly

The patent describes a rifle tripod support assembly that includes a trigger guard mounting flange and two “V” shaped tails extending from the cartridge magazine’s left and right walls, designed to fit into a clamp’s corresponding valleys. This assembly allows for secure mounting of a tripod to a rifle, enhancing stability during use.

Claim 1

1 . An assembly for mounting a tripod to a rifle, wherein the tripod comprises a clamp, wherein the clamp comprises left and right “V” shaped valleys, wherein the rifle comprises a muzzle, a breech, and a cartridge magazine, and wherein the cartridge magazine has breechward and muzzleward ends and has a lower end bounded and defined by left and right walls, said assembly comprising: a. a first “V” shaped tail fitted for receipt within the clamp’s left “V” shaped valley, wherein the first “V” shaped tail is fixedly attached to and extends leftwardly from the cartridge magazine’s left wall; b. a second “V” shaped tail fitted for receipt within the clamp’s right “V” shaped valley, wherein the second “V” shaped tail is fixedly attached to and extends rightwardly from the cartridge magazine’s right wall; c. a screw eye positioned muzzlewardly from the muzzleward end of the cartridge magazine, wherein muzzleward ends of the first and second “V” shaped tails are positioned breechwardly from the screw eye. a. a first “V” shaped tail fitted for receipt within the clamp’s left “V” shaped valley, wherein the first “V” shaped tail is fixedly attached to and extends leftwardly from the cartridge magazine’s left wall; b. a second “V” shaped tail fitted for receipt within the clamp’s right “V” shaped valley, wherein the second “V” shaped tail is fixedly attached to and extends rightwardly from the cartridge magazine’s right wall; c. a screw eye positioned muzzlewardly from the muzzleward end of the cartridge magazine, wherein muzzleward ends of the first and second “V” shaped tails are positioned breechwardly from the screw eye.
