Sep 29, 2026

US12747925 - Spade grip attachment assembly for a minigun

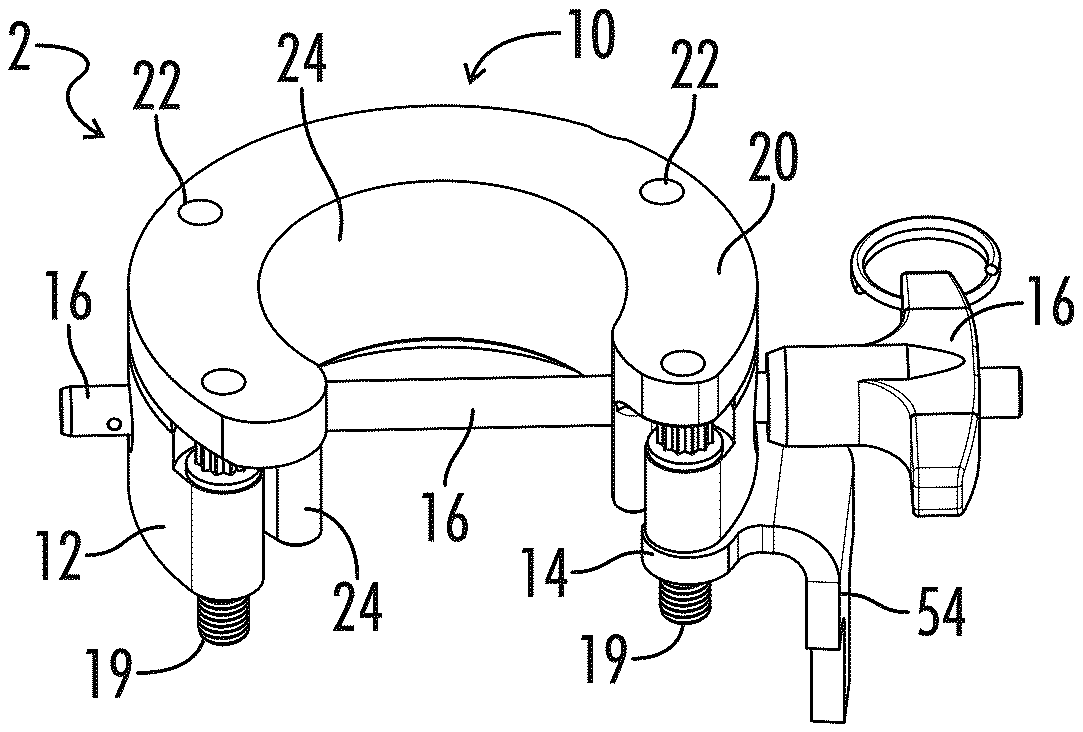

A spade grip attachment assembly for securing a spade grip to a minigun includes a first adapter member and a second adapter member. The first adapter member is on the spade grip. The second adapter member is on the minigun. The first and second adapter members are configured such that one is receivable in the other. Each adapter member can define a pair of coaxially aligned pin holes that align to form a passage in which a fastener is receivable when one adapter member is received in the other. The fastener is receivable in the passage to releasably secure the first adapter member to the second adapter member.

Assignee: CHD Holdings, LLC
Inventors: Kristopher Lee Paulson
Filing date: 2025-10-07

minigungripattachmentfirearm

The patent describes an assembly for attaching a spade grip to a minigun, consisting of two adapter members that can be securely fastened together. The design allows for easy attachment and detachment, enhancing the versatility of the minigun’s operation.

Claim 1

1 . An attachment assembly for securing a spade grip to a minigun, the assembly comprising: a first adapter member on the spade grip; and a second adapter member on the minigun; wherein said adapter members are configured to be releasably secured to each other. a first adapter member on the spade grip; and a second adapter member on the minigun; wherein said adapter members are configured to be releasably secured to each other.

Google Patents

https://patents.google.com/patent/US12747925

USPTO PDF

https://image-ppubs.uspto.gov/dirsearch-public/print/downloadPdf/12747925
