US12747927 - Simulated trigger assemblies

The patent describes a simulated trigger assembly for firearms that includes a magnet and a moveable portion, allowing for a simulated firing experience without altering the existing trigger mechanism. This assembly can be retrofitted to a firearm, maintaining the original trigger, disconnector, and safety systems.

Claim 1

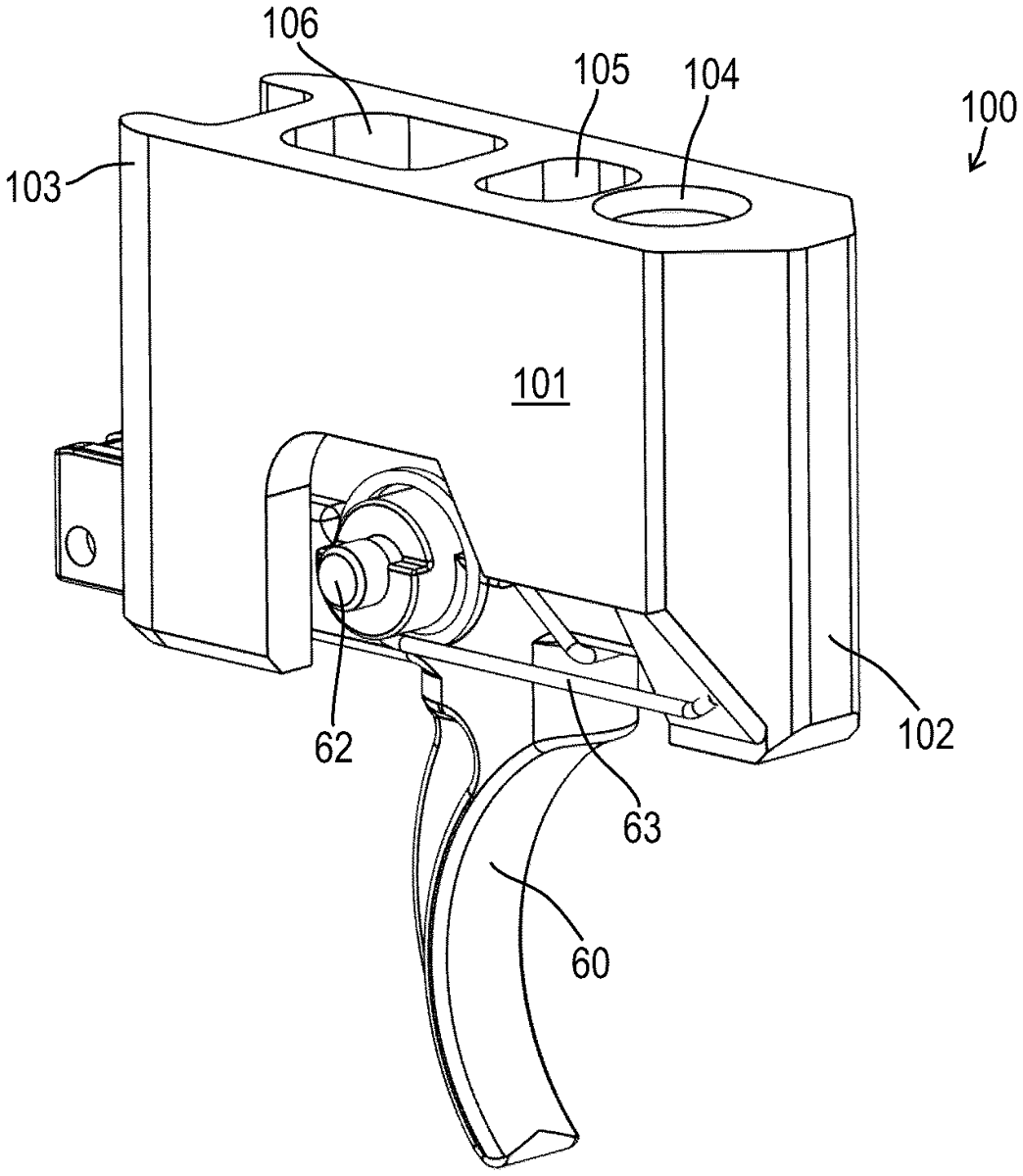

1 . A simulated trigger assembly for a firearm comprising: at least one body comprising at least one recess; at least one magnet disposed within the at least one recess; an initial configuration; and a simulated fired configuration, wherein: in the initial configuration the at least one magnet is at least immediately adjacent to a moveable portion; in the simulated fired configuration the moveable portion has moved to separate the moveable portion from the at least one magnet; the simulated trigger assembly comprises a retrofit kit added to the firearm such that a trigger, a disconnector, and a safety of the firearm are each left installed and unaltered; and the moveable portion is a forward portion of the trigger. at least one body comprising at least one recess; at least one magnet disposed within the at least one recess; an initial configuration; and a simulated fired configuration, wherein: in the initial configuration the at least one magnet is at least immediately adjacent to a moveable portion; in the simulated fired configuration the moveable portion has moved to separate the moveable portion from the at least one magnet; the simulated trigger assembly comprises a retrofit kit added to the firearm such that a trigger, a disconnector, and a safety of the firearm are each left installed and unaltered; and the moveable portion is a forward portion of the trigger.
