Sep 8, 2026

US12729929 - Stock for a firearm

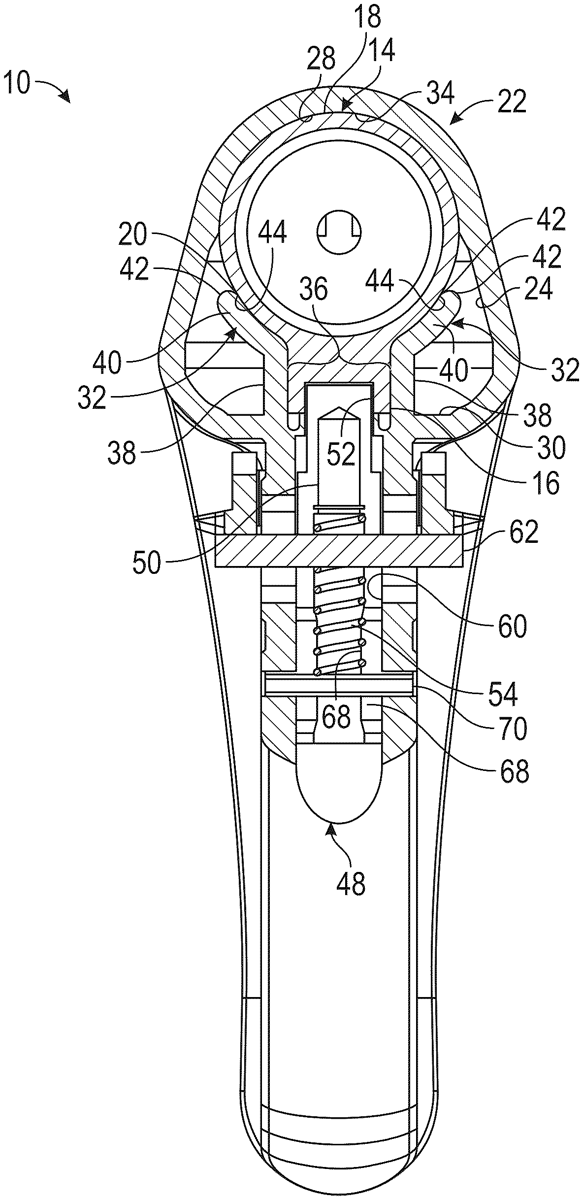

A stock for a firearm has a body defining a passage with a forward opening, the passage configured to closely receive the rearwardly extending tube, the body having a first wall portion defining a first portion of the passage and configured to conformally contact a first cylindrical portion of the rearwardly extending tube, the body having a second wall portion facing a second portion of the rearwardly extending tube and spaced apart from the second portion of the rearwardly extending tube, and a flexible support element connected to the second wall portion and extending to a position configured to contact the second portion of the rearwardly extending tube. The first wall portion may be an upper portion of the body. A lower surface of the first wall portion may be an elongated cylindrical section. The second wall portion may be below the first wall portion.

Assignee: CARACAL INTERNATIONAL, LLC
Inventors: Andrew Palmer, Konstantin Nedev, Naser Ali Alomaira
Filing date: 2024-09-13

firearmstockaccessory

The patent describes a firearm stock designed to accommodate a rearwardly extending tube, featuring a body with a passage that closely fits the tube. It includes a flexible support element that contacts the tube while remaining entirely contained within the passage, enhancing stability and fit.

Claim 1

1 . A stock for a firearm having a rearwardly extending tube, the stock comprising: a body defining a passage with a forward opening; the passage configured to closely receive the rearwardly extending tube; the body having a first wall portion defining a first portion of the passage and configured to conformally contact a first cylindrical portion of the rearwardly extending tube; the body having a second wall portion facing a second portion of the rearwardly extending tube and spaced apart from the second portion of the rearwardly extending tube; a flexible support element connected to the second wall portion and extending to a position configured to contact the second portion of the rearwardly extending tube; and the flexible support element being entirely contained within the passage. a body defining a passage with a forward opening; the passage configured to closely receive the rearwardly extending tube; the body having a first wall portion defining a first portion of the passage and configured to conformally contact a first cylindrical portion of the rearwardly extending tube; the body having a second wall portion facing a second portion of the rearwardly extending tube and spaced apart from the second portion of the rearwardly extending tube; a flexible support element connected to the second wall portion and extending to a position configured to contact the second portion of the rearwardly extending tube; and the flexible support element being entirely contained within the passage.
