US12729928 - Bolt action rifle chassis

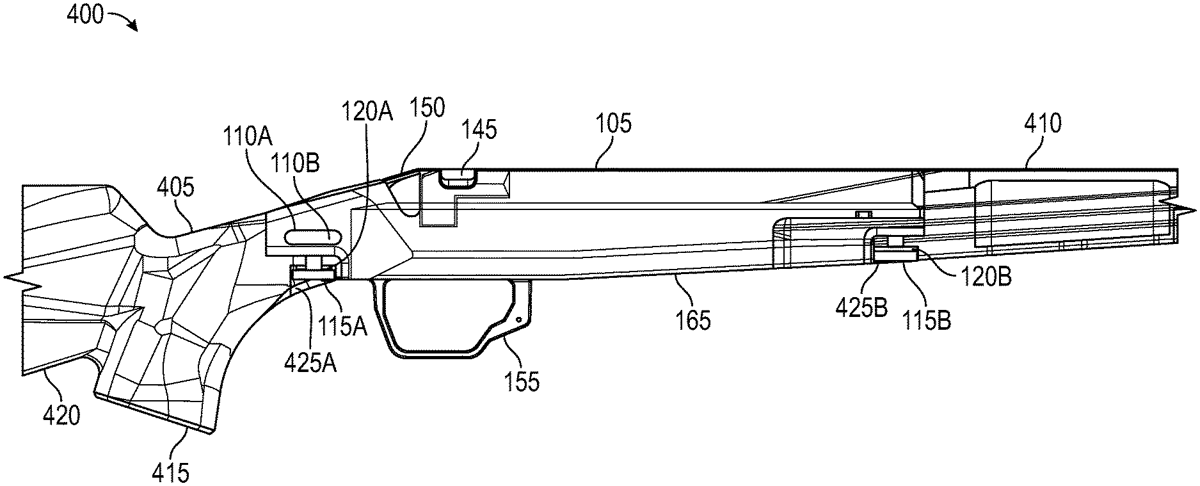

A chassis includes an internal portion which corresponds to a rifle action of a first type. The chassis further includes an external portion which corresponds with a rifle stock. The chassis is attached to the rifle action of the first type and to rifle stock.

Assignee: Amend2, LLC
Inventors: Colby Coombs, Matthew Bellitti, Austin Damoth, Craig Lockwood
Filing date: 2023-01-17

firearmriflechassisbolt_action

The patent describes a bolt action rifle chassis that features an internal portion designed to connect with a specific type of rifle action and an external portion that interfaces with a rifle stock. It includes unique takedown screw holes and a trigger guard integrated into the chassis, enhancing functionality and accessibility.

Claim 1

1 . A chassis, comprising: an internal portion which connects to a bolt action rifle action of a first type by takedown screw holes located to correspond with corresponding screw holes in the bolt action rifle action of the first type; an external portion which connects to a rifle stock by mounting holes which are located to correspond with corresponding bolt holes in the rifle stock, wherein the takedown screw holes extend through the external portion and are inaccessible through the rifle stock, a pinhole in a side of the external portion of the chassis which intersects the mounting holes in the external portion of the chassis; and a trigger guard, the trigger guard included as part of the chassis and formed in the external portion of the chassis between the mounting holes. an internal portion which connects to a bolt action rifle action of a first type by takedown screw holes located to correspond with corresponding screw holes in the bolt action rifle action of the first type; an external portion which connects to a rifle stock by mounting holes which are located to correspond with corresponding bolt holes in the rifle stock, wherein the takedown screw holes extend through the external portion and are inaccessible through the rifle stock, a pinhole in a side of the external portion of the chassis which intersects the mounting holes in the external portion of the chassis; and a trigger guard, the trigger guard included as part of the chassis and formed in the external portion of the chassis between the mounting holes.
