Apr 14, 2026

US12601554 - Firearm loader

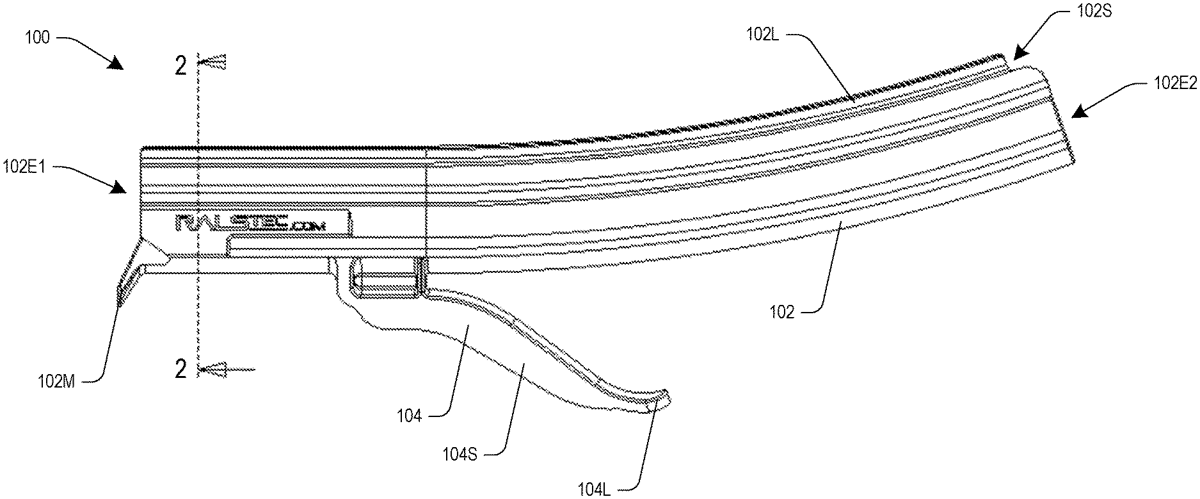

A firearm loader includes a body defining a cavity with a first open end and a slot communicating with the cavity and an interface arm extending from the body. A method includes positioning a firearm loader on a firearm, the firearm loader comprising a body defining a cavity with a first open end and a slot communicating with the cavity and an interface arm extending from the body and transferring cartridges positioned in the cavity through a magazine opening of the firearm by engaging the cartridges through the slot and pushing the cartridges through the first open end. Positioning the firearm loader on the firearm comprises positioning the interface arm on a trigger guard of the firearm to align the first open end with the magazine opening.

Inventors: Leslie A. Wagner, Susan A. Arndt, Robert D Rohr, Robert H Meier
Filing date: 2024-03-12

firearmloaderammunition

The patent describes a firearm loader designed to facilitate the loading of cartridges into a firearm’s magazine by utilizing a body with a cavity and a slot for cartridge engagement. The loader’s interface arm is positioned on the trigger guard to ensure proper alignment with the magazine opening during use.

Claim 1

1 . A firearm loader, comprising: a body defining a cavity with a first open end and a slot communicating with the cavity; outwardly turned lips defined in the body on edges of the slot; and an interface arm extending from the body. a body defining a cavity with a first open end and a slot communicating with the cavity; outwardly turned lips defined in the body on edges of the slot; and an interface arm extending from the body.
