Jul 14, 2026
A projectile including a reactive composition is disclosed. The reactive composition includes at least one fuel comprising a titanium-boron composite, at least one oxidizer, and at least one metal hydride. When the projectile penetrates through a surface of a target having a volume of 0.2 m 3 , the reactive composition is configured to cause, behind the surface of the target, at least one of an overpressure of greater than 36 pounds per square inch (psi) or an incendiary effect duration of greater than 70 milliseconds. The reactive composition may be configured to partially or entirely surround a pin or penetrator. The projectile may lack a pin or penetrator, and the reactive composition is contained within a metal tube or cup configured to travel toward, within, and/or behind a surface of the target, wherein the process produces a punch out from the target, thereby acting as a second projectile, which enhances lethality.
Jun 30, 2026
Systems and methods are presented for control of munitions, missiles and projectiles in flight and more particularly with the use of activatable or deployable flow effectors that remain stowed or inactive during launch or firing, and can be actuated after launch or firing on demand. More specifically, systems and methods are presented for control of munitions, missiles, and projectiles by activating and/or deactivating a control actuation system (CAS) based on measurements of an inertial measurement unit (IMU) and sensors integrated into such IMU, the IMU and sensors being at least part of a configurable guidance sensor suite (CGSS).
May 12, 2026
A method for simultaneous blasting of projectiles includes i.) calculating the position of the target, ii.) estimating the target's position, iii.) firing a first projectile at the target, iv.) firing a second projectile at the target, v.) braking the first projectile with a braking device arranged in the projectile, and vi.) detonating the projectiles in a coordinated fashion based on an initiation signal. A fire-control system for directing fire against a target comprising at least one sensor, in order to measure the position of the target as a function of time, and a combat system including a firing device are also provided.
Mar 17, 2026
The present invention relates to navigation, fuzing, and guidance of vehicles, and more particularly to such capabilities for unmanned vehicles, drones, or other related systems. More particularly, the present invention is directed to a flight deck unit comprising sensors and electronics adapted to perform the navigation, fuzing, and/or guidance for such systems. Preferably, the flight deck unit is adapted for performing navigation, fuzing, and guidance in GPS denied or degraded environments and is immune to spoofing, jamming, and hacking, thereby providing safe and accurate navigation, fuzing, and guidance regardless of the arena or environment. Further, the invention is directed to a system for providing safety supervision of weapons systems on vehicles or projectiles. More particularly, the safety supervision is adapted for ensuring that weapon-level safety measures are unable to be disengaged while the vehicle or projectile is within a safety zone.

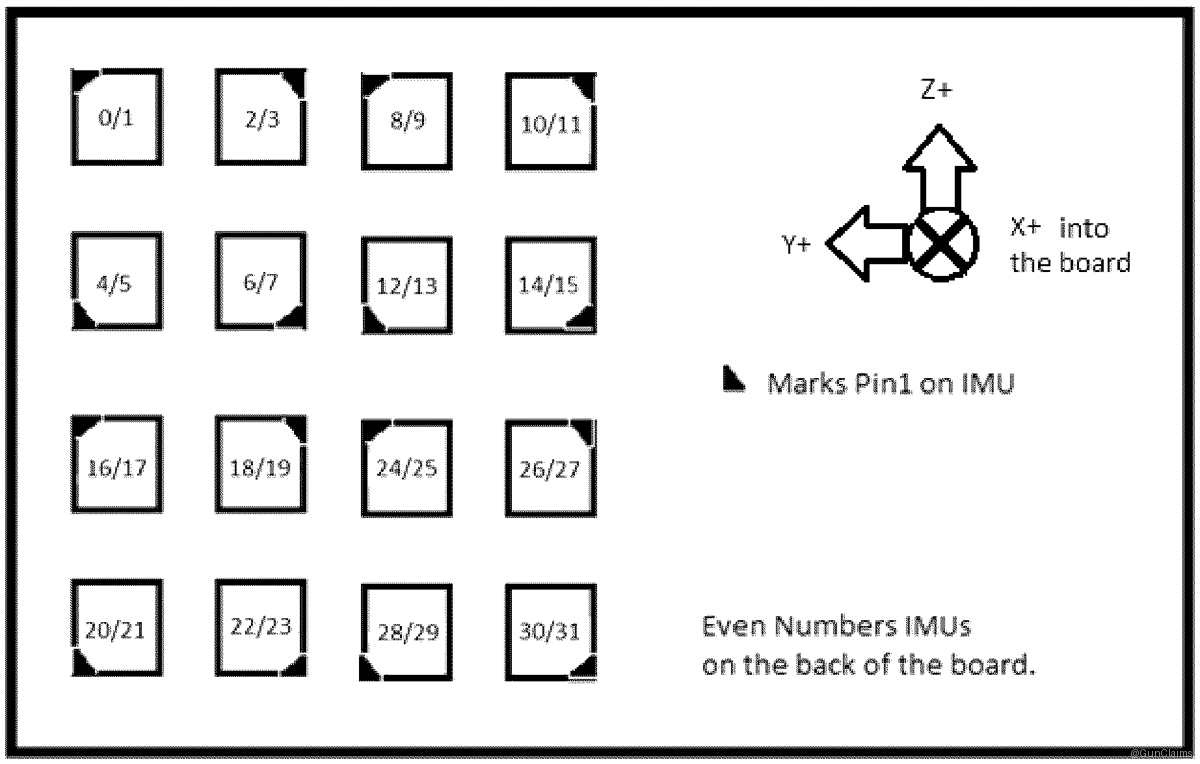

Mar 17, 2026
Presented herein are systems and methods using inertial measurement units (IMUs) for providing location and guidance, and more particularly for providing location and guidance in environments where global position systems (GPS) are unavailable or unreliable (GPS denied and/or degraded environments), and for such location and guidance being provided to projectiles, munitions, or rounds that are released, fired, or deployed from vehicles or weapons systems. More particularly, this disclosure relates to the use of a series of low-accuracy or low-resolution IMUs, in combination, to provide high-accuracy or high-resolution location and guidance results. This further relates to an electronics-control system for handing off control of the measurement and guidance of a body in flight between groups or subgroups of IMUs to alternate between high dynamic range/lower resolution and lower dynamic range/higher resolution measurement and guidance as the environment dictates.
Oct 14, 2025
Composite projectiles include various material compositions, diameters, and cavities within the projectiles having a variety of cavity diameters, sidewalls, and bottoms selected and formed to induce different levels of penetration and disintegration of the composite projectiles upon impact with targets.
