Apr 14, 2026

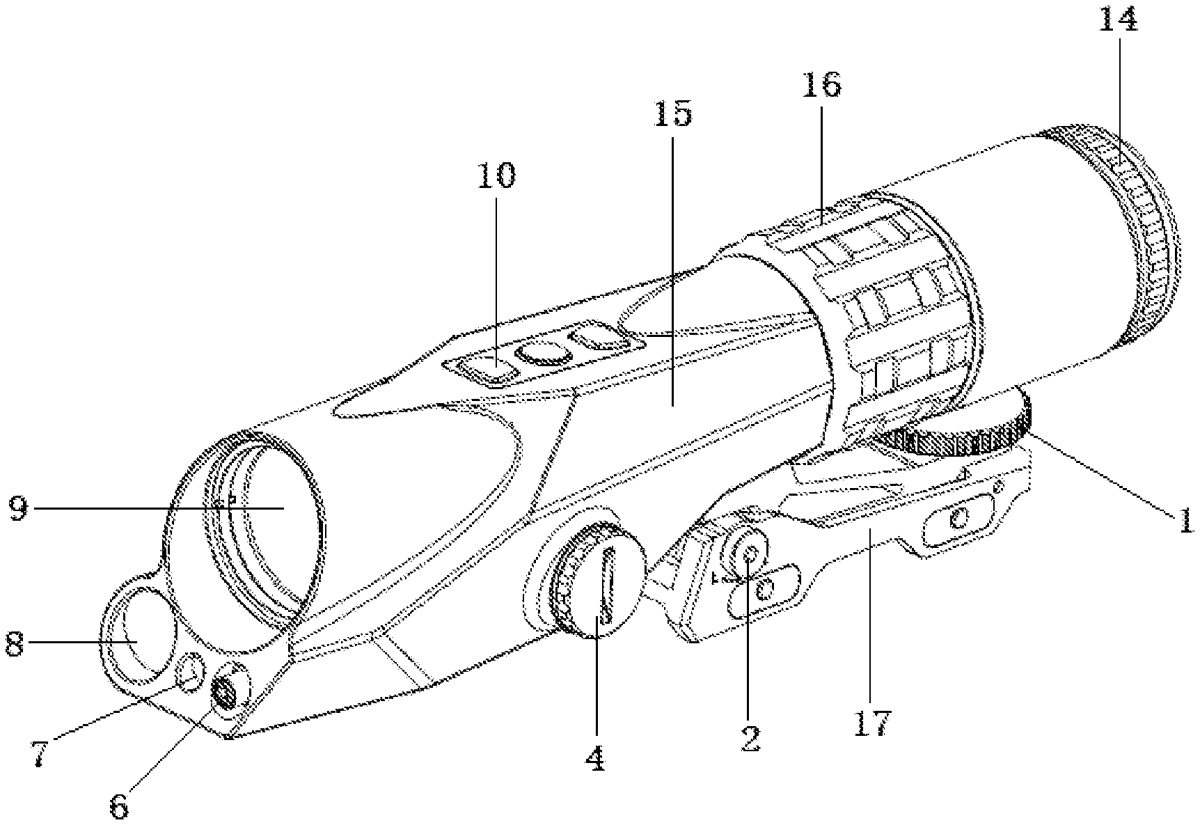

The invention relates to a ranging and ballistic display optical sight featuring a mounting bracket, control mainboard, laser emitter, and receiver. An objective lens group and beam splitter prism are arranged coaxially, with the prism positioned above the laser receiver. The laser beam emitted is reflected by the prism into the receiver. A digital reticle plate, aligned with the optical path, displays the range data. The control mainboard calculates distance based on the time difference between laser emission and reception, then displays the result on the reticle. This system enhances shooting precision and efficiency.
