US12693517 - Viewing optic with an integrated display system

The patent describes a viewing optic that integrates a display system to project images into the first focal plane of the optical system. This design includes an ocular lens system, an objective lens system, an erector lens system, and a beam combiner, enhancing the user’s visual experience by combining real and digital imagery.

Claim 1

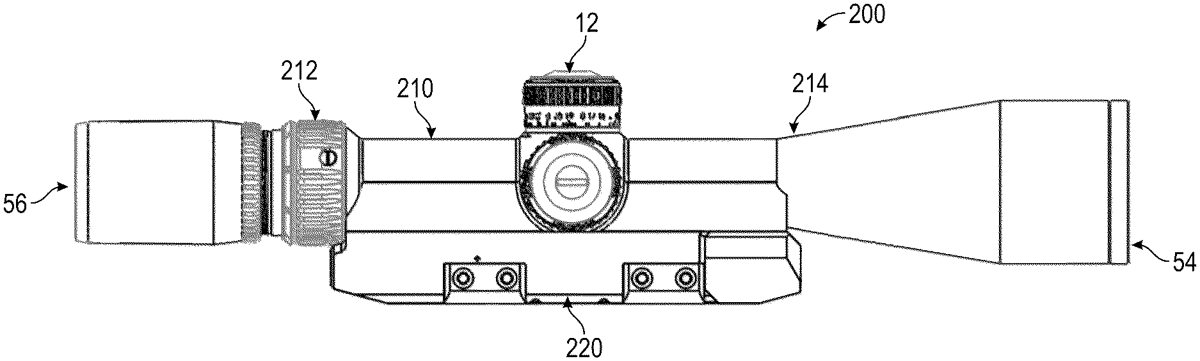

1 . A viewing optic comprising: a body having an ocular lens system and an objective lens system that focuses a target image from an outward scene to a first focal plane, an erector lens system, wherein the first focal plane is located between the objective lens system and erector lens system, a beam combiner located between the objective lens system and the first focal plane; and a base coupled to a bottom portion of the body and having an active display configured to generate an image that is viewed in the first focal plane. a body having an ocular lens system and an objective lens system that focuses a target image from an outward scene to a first focal plane, an erector lens system, wherein the first focal plane is located between the objective lens system and erector lens system, a beam combiner located between the objective lens system and the first focal plane; and a base coupled to a bottom portion of the body and having an active display configured to generate an image that is viewed in the first focal plane.
