US12774876 - Training system—modular and adjustable shoot house

The patent describes a modular training system for firearms that features ballistic penetration-resistant walls designed for adjustable configurations. Each wall is constructed with unique edge structures that facilitate vertical movement and interconnection, enhancing the adaptability of the shoot house.

Claim 1

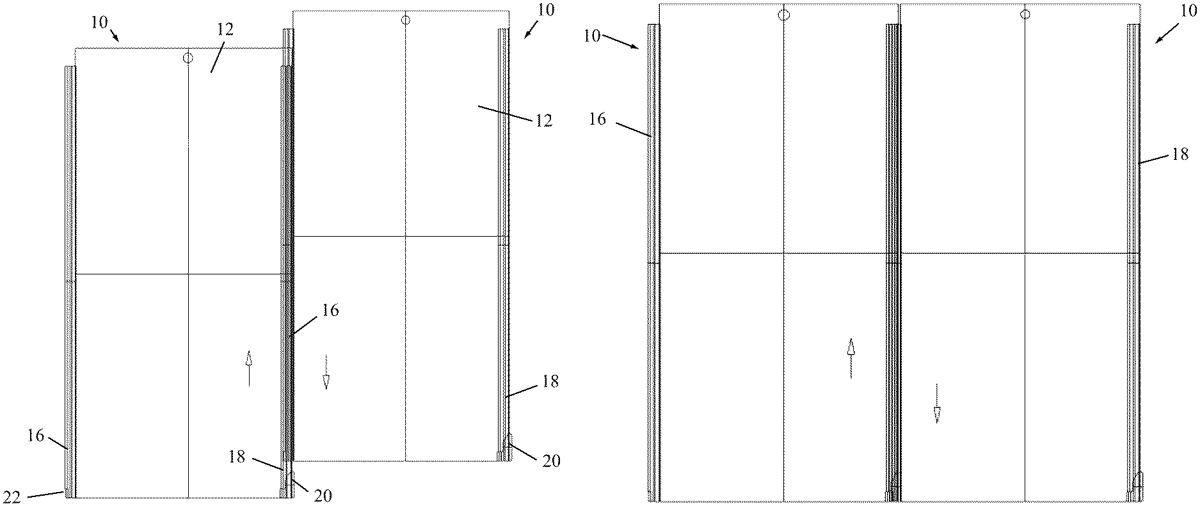

1 . A training system comprising: shoot house walls connected to each other, each of said walls being constructed of a ballistic penetration-resistant material, and each of said walls comprising front and back surfaces extending from first and second edge connective structures, wherein said first edge connective structure extends in an upright direction and comprises two edge members that slant outwards towards each other to form an arrow-head shape when viewed from above said walls, wherein said second edge connective structure extends in the upright direction and comprises two edge members that slant inwards towards each other to form an arrow-receptacle shape when viewed from above said walls, and wherein said second edge connective structures comprises an upright projection extending in the upright direction and received in a crevice located in said first edge connective structure that allows for relative vertical motion in the upright direction between adjoining ones of said walls. shoot house walls connected to each other, each of said walls being constructed of a ballistic penetration-resistant material, and each of said walls comprising front and back surfaces extending from first and second edge connective structures, wherein said first edge connective structure extends in an upright direction and comprises two edge members that slant outwards towards each other to form an arrow-head shape when viewed from above said walls, wherein said second edge connective structure extends in the upright direction and comprises two edge members that slant inwards towards each other to form an arrow-receptacle shape when viewed from above said walls, and wherein said second edge connective structures comprises an upright projection extending in the upright direction and received in a crevice located in said first edge connective structure that allows for relative vertical motion in the upright direction between adjoining ones of said walls.
