US12768618 - Enclosed reflex sight for firearms, assembly, system and method

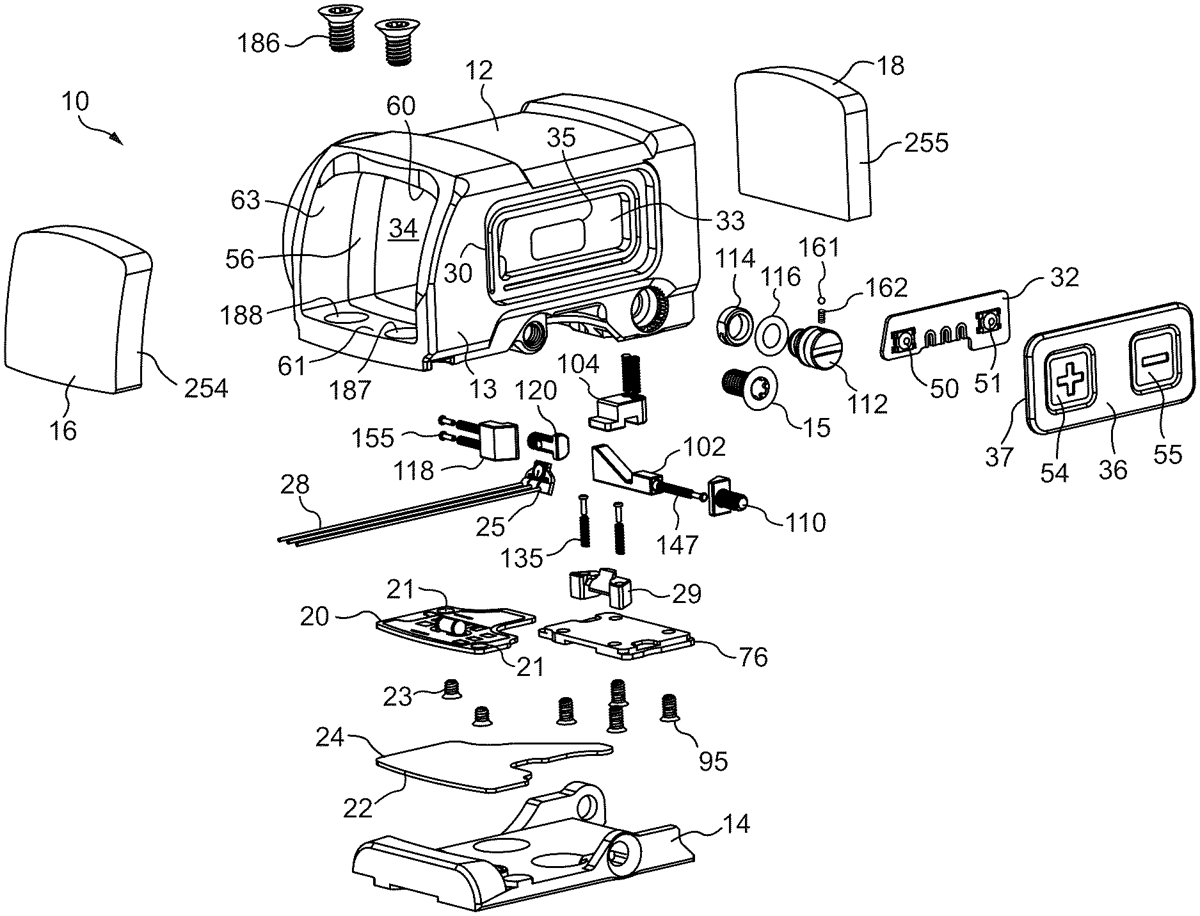

The disclosure is related to an enclosed reflex sight for one or more firearms. The enclosed reflex sight may be provided as part of an assembly including a mounting interface. The enclosed reflex sight includes a rearward bottom portion that houses an adjustment assembly, wherein the rearward bottom portion includes a lowermost surface of the enclosed reflex sight. The enclosed reflex sight includes an upper bottom surface forward of the rearward bottom portion of the enclosed reflex sight, the upper bottom surface comprising an abutment surface for the mounting interface. When the assembly is secured to an upper mounting surface of a firearm then the lowermost surface of the rearward bottom portion of the enclosed reflex sight is closer to the upper mounting surface of the firearm than the upper bottom surface of the enclosed reflex sight.

Inventors: Robert E Sheets, Jr.
Filing date: 2025-05-22

firearmsightaccessory

The patent describes an enclosed reflex sight designed for firearms, featuring a mounting interface that accommodates various firearm models. This sight includes a rearward bottom portion with an adjustment assembly, ensuring optimal positioning when secured to a firearm’s upper mounting surface.

Claim 1

1 . An assembly, comprising: an enclosed reflex sight; and a mounting interface selected from a plurality of mounting interfaces; wherein each of the plurality of mounting interfaces is configured to secure the enclosed reflex sight to a plurality of firearms comprising a plurality of upper mounting surface footprints amongst the plurality of firearms; wherein when the assembly is secured to an upper mounting surface of a first firearm of the plurality of firearms then the assembly is located on top of the first firearm forward of a rear end surface of the first firearm; wherein the enclosed reflex sight includes a rearward bottom portion located behind the selected mounting interface; and wherein the assembly includes a first maximum height and the enclosed reflex sight includes a rear surface having a second maximum height the same as the first maximum height. an enclosed reflex sight; and a mounting interface selected from a plurality of mounting interfaces; wherein each of the plurality of mounting interfaces is configured to secure the enclosed reflex sight to a plurality of firearms comprising a plurality of upper mounting surface footprints amongst the plurality of firearms; wherein when the assembly is secured to an upper mounting surface of a first firearm of the plurality of firearms then the assembly is located on top of the first firearm forward of a rear end surface of the first firearm; wherein the enclosed reflex sight includes a rearward bottom portion located behind the selected mounting interface; and wherein the assembly includes a first maximum height and the enclosed reflex sight includes a rear surface having a second maximum height the same as the first maximum height.
