US12768612 - Paintball gun barrel system

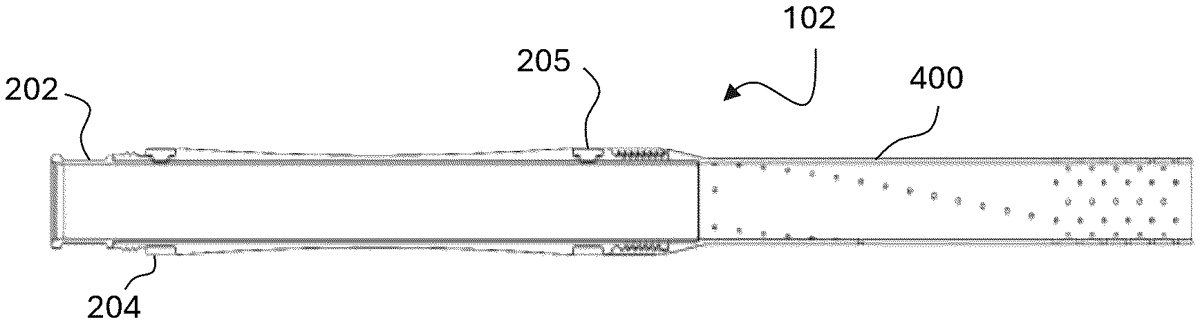

Apparatus and methods relate to barrel arrangements for use with paintball guns. The barrel arrangement includes an insert that may be tubular and selectable by a user to have an inside bore diameter to provide desired fit with a paintball. An external barrel receives the insert and is attachable to a frame of the paintball gun. An externally mounted resilient band around an outside circumference of the external barrel facilitates centering and retention of the insert within the external barrel. Specifically, the external barrel includes a set of apertures through which extensions on an inside surface of the resilient band protrude into biasing contact with an outside surface of the insert.

Assignee: METHOD DEVELOPMENT PRODUCTS LLC
Inventors: Jerod Bushman, John Chambers
Filing date: 2025-08-12

paintballgunbarrelsystem

The patent describes a paintball gun barrel system featuring an external barrel that accommodates a user-selectable tubular insert to achieve the desired fit with paintballs. A resilient band is mounted externally to ensure the insert is centered and retained within the external barrel, utilizing extensions that engage through radial apertures.

Claim 1

1 . A barrel assembly for a paintball gun, comprising: an external barrel having a threaded end for mating with a body of the paintball gun and at least one set of radial apertures disposed around a circumference of the external barrel; an insert that is tubular shaped and disposed inside of the external barrel; and at least one resilient band disposed around the external barrel and having extensions along an inside surface of the at least one resilient band that protrude through the at least one set of radial apertures and are urged into contact with the insert. an external barrel having a threaded end for mating with a body of the paintball gun and at least one set of radial apertures disposed around a circumference of the external barrel; an insert that is tubular shaped and disposed inside of the external barrel; and at least one resilient band disposed around the external barrel and having extensions along an inside surface of the at least one resilient band that protrude through the at least one set of radial apertures and are urged into contact with the insert.
