Oct 20, 2026

US12768611 - Water gun

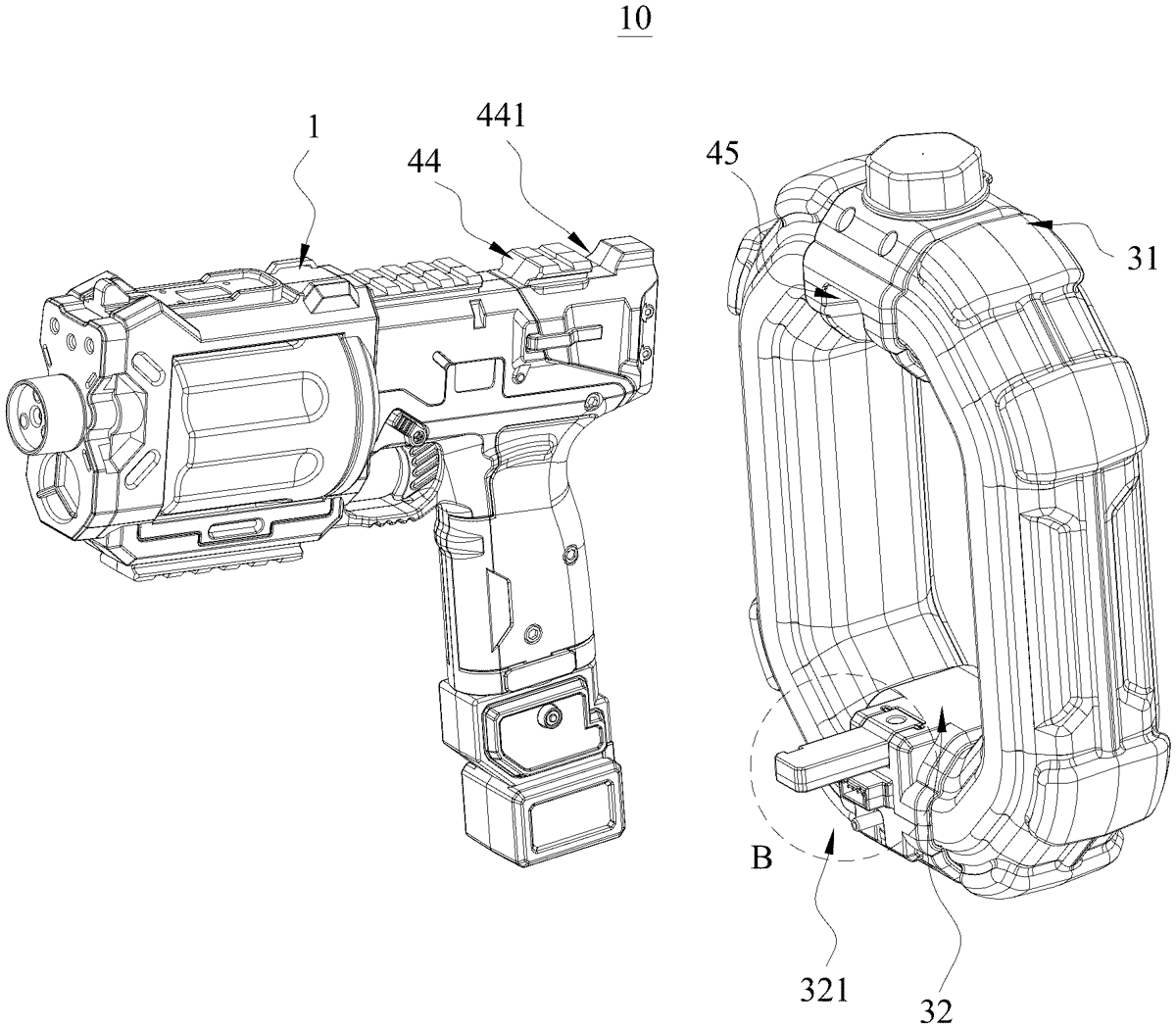

A water gun is provided. On the water gun, when a first mating position and a second mating position are in alignment fit, a plug-in member is detachably plugged into a plug-in hole, so that a reset clamping member is movably clamped to the plug-in member, thus achieving quick assembling and disassembling of a storage device and a gun body, and enhancing disassembling convenience. Furthermore, when the first mating position and the second mating position are in alignment fit, a first conductive component and a second conductive component are also in detachable fit, so that an electrical element or a power source on the storage device can be mated and electrically connected with a circuit on the gun body, thus eliminating an additional circuit mating and assembling step and further simplifying an assembling process.

Inventors: Da Cai
Filing date: 2026-02-06

watergunpneumaticairgun

The patent describes a water gun that features a detachable storage device and a shooting device, allowing for quick assembly and disassembly through a plug-in mechanism that also facilitates electrical connections. This design enhances convenience by eliminating the need for additional circuit assembly steps, streamlining the overall assembly process.

Claim 1

1 . A water gun, comprising: a gun body provided with a first mating position; a shooting device having a receiving end and a shooting end, wherein the shooting device is arranged on the gun body; the shooting end is exposed from a surface of the gun body and is communicated with the receiving end; the receiving end is exposed within the first mating position; a storage device having a storage cavity, a second mating position, and an output end, wherein the output end is exposed within the second mating position and is communicated with the storage cavity; a mating device comprising a plug-in member, a plug-in hole, and a reset clamping member, wherein one of the plug-in member and the plug-in hole is arranged at the first mating position, and the other one of the plug-in member and the plug-in hole is arranged at the second mating position; the reset clamping member is movably disposed within the plug-in hole; and a conductive device comprising a first conductive component and a second conductive component, wherein the first conductive component is disposed within the first mating position, and the second conductive component is disposed within the second mating position; when the first mating position and the second mating position are in alignment fit, the first conductive component and the second conductive component are in detachable fit and are communicated with each other; and the plug-in member is detachably plugged into the plug-in hole, so that the reset clamping member is movably clamped to the plug-in member, thereby electrically connecting the output end with the receiving end; wherein the storage device comprises a storage member, a fixed ring, and an electrical element; the storage cavity is provided on the storage member; the fixed ring is arranged on the storage member; the second mating position is arranged on the fixed ring; and the electrical element is electrically connected to the second conductive component. a gun body provided with a first mating position; a shooting device having a receiving end and a shooting end, wherein the shooting device is arranged on the gun body; the shooting end is exposed from a surface of the gun body and is communicated with the receiving end; the receiving end is exposed within the first mating position; a storage device having a storage cavity, a second mating position, and an output end, wherein the output end is exposed within the second mating position and is communicated with the storage cavity; a mating device comprising a plug-in member, a plug-in hole, and a reset clamping member, wherein one of the plug-in member and the plug-in hole is arranged at the first mating position, and the other one of the plug-in member and the plug-in hole is arranged at the second mating position; the reset clamping member is movably disposed within the plug-in hole; and a conductive device comprising a first conductive component and a second conductive component, wherein the first conductive component is disposed within the first mating position, and the second conductive component is disposed within the second mating position; when the first mating position and the second mating position are in alignment fit, the first conductive component and the second conductive component are in detachable fit and are communicated with each other; and the plug-in member is detachably plugged into the plug-in hole, so that the reset clamping member is movably clamped to the plug-in member, thereby electrically connecting the output end with the receiving end; wherein the storage device comprises a storage member, a fixed ring, and an electrical element; the storage cavity is provided on the storage member; the fixed ring is arranged on the storage member; the second mating position is arranged on the fixed ring; and the electrical element is electrically connected to the second conductive component.
