Sep 8, 2026

US12728824 - Military vehicle

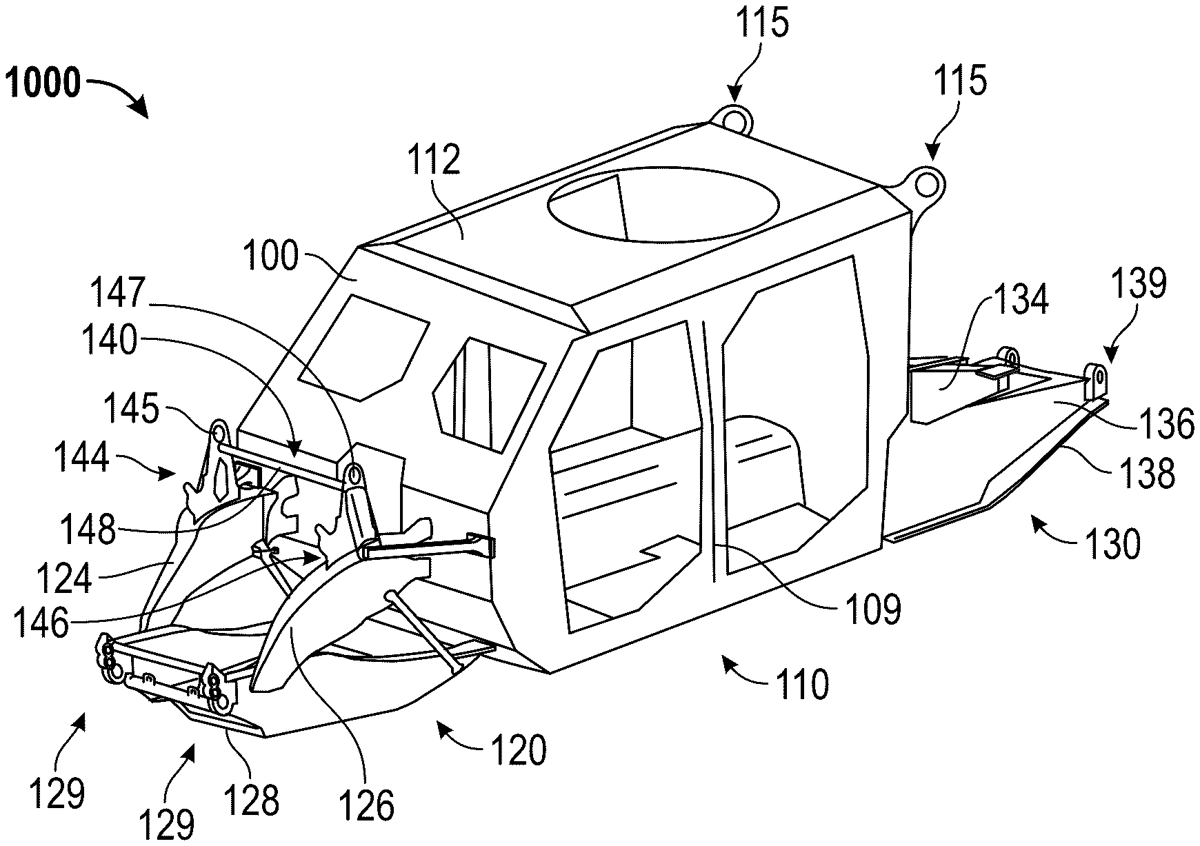

A passenger capsule includes a frame rail-less monocoque hull structure having a front end and a rear end. The first protrusion and the second protrusion provide a pair of rear lift points. The frame rail-less monocoque hull structure includes a roof, a floor, and sidewalls that are bolted together. The floor defines a tunnel having an arcuate-shaped profile extending into an interior of the frame rail-less monocoque hull structure. The front end of the frame rail-less monocoque hull structure includes a plurality of front module interfaces. The plurality of front module interfaces are configured to releasably couple with a front module including a front subframe assembly and a front axle. The rear end of the frame rail-less monocoque hull structure includes a plurality of rear module interfaces. The plurality of rear module interfaces are configured to releasably couple with a rear module including a rear subframe assembly and a rear axle.

Assignee: Oshkosh Defense, LLC
Inventors: Don Verhoff, Gary Schmiedel, Chris Yakes, Rob Messina, Brian Wilkins, Kent Schulte, Daniel R. Seffernick, Joseph Holda, Michael Peotter, David McGraw, Anthony Seefeldt, Dave Pelko, Jesse Gander, Jerry Reineking, Jesse Steinke
Filing date: 2023-12-11

The patent describes a passenger capsule designed for military vehicles, featuring a frame rail-less monocoque hull structure with modular interfaces for front and rear subframe assemblies. It includes a unique rear lift structure with protrusions for enhanced lifting capabilities, along with door apertures and an arcuate-shaped tunnel in the floor.

Claim 1

1 . A passenger capsule for a military vehicle, the passenger capsule comprising: a frame rail-less monocoque hull structure having a front end and a rear end, wherein: the frame rail-less monocoque hull structure includes a roof, a floor, and sidewalls that are bolted together; at least one sidewall of the sidewalls defines a front door aperture and a rear door aperture; the floor defines a tunnel having an arcuate-shaped profile extending into an interior of the frame rail-less monocoque hull structure; the front end of the frame rail-less monocoque hull structure includes a plurality of front module interfaces, the plurality of front module interfaces configured to releasably couple with a front subframe assembly of a front module; the rear end of the frame rail-less monocoque hull structure includes a plurality of rear module interfaces, the plurality of rear module interfaces configured to releasably couple with a rear subframe assembly of a rear module; and at least one of the plurality of front module interfaces is positioned along an underside of the frame rail-less monocoque hull structure; at least one of the plurality of front module interfaces is positioned along a front side of the frame rail-less monocoque hull structure; at least one of the plurality of rear module interfaces is positioned along the underside of the frame rail-less monocoque hull structure; at least one of the plurality of rear module interfaces is positioned along a rear side of the frame rail-less monocoque hull structure; and a rear lift structure including a first protrusion and a second protrusion extending rearward from opposing lateral sides of a rear wall of the frame rail-less monocoque hull structure at the rear end thereof, the first protrusion and the second protrusion providing a pair of rear lift points. a frame rail-less monocoque hull structure having a front end and a rear end, wherein: the frame rail-less monocoque hull structure includes a roof, a floor, and sidewalls that are bolted together; at least one sidewall of the sidewalls defines a front door aperture and a rear door aperture; the floor defines a tunnel having an arcuate-shaped profile extending into an interior of the frame rail-less monocoque hull structure; the front end of the frame rail-less monocoque hull structure includes a plurality of front module interfaces, the plurality of front module interfaces configured to releasably couple with a front subframe assembly of a front module; the rear end of the frame rail-less monocoque hull structure includes a plurality of rear module interfaces, the plurality of rear module interfaces configured to releasably couple with a rear subframe assembly of a rear module; and at least one of the plurality of front module interfaces is positioned along an underside of the frame rail-less monocoque hull structure; at least one of the plurality of front module interfaces is positioned along a front side of the frame rail-less monocoque hull structure; at least one of the plurality of rear module interfaces is positioned along the underside of the frame rail-less monocoque hull structure; at least one of the plurality of rear module interfaces is positioned along a rear side of the frame rail-less monocoque hull structure; and the frame rail-less monocoque hull structure includes a roof, a floor, and sidewalls that are bolted together; at least one sidewall of the sidewalls defines a front door aperture and a rear door aperture; the floor defines a tunnel having an arcuate-shaped profile extending into an interior of the frame rail-less monocoque hull structure; the front end of the frame rail-less monocoque hull structure includes a plurality of front module interfaces, the plurality of front module interfaces configured to releasably couple with a front subframe assembly of a front module; the rear end of the frame rail-less monocoque hull structure includes a plurality of rear module interfaces, the plurality of rear module interfaces configured to releasably couple with a rear subframe assembly of a rear module; and at least one of the plurality of front module interfaces is positioned along an underside of the frame rail-less monocoque hull structure; at least one of the plurality of front module interfaces is positioned along a front side of the frame rail-less monocoque hull structure; at least one of the plurality of rear module interfaces is positioned along the underside of the frame rail-less monocoque hull structure; at least one of the plurality of rear module interfaces is positioned along a rear side of the frame rail-less monocoque hull structure; and a rear lift structure including a first protrusion and a second protrusion extending rearward from opposing lateral sides of a rear wall of the frame rail-less monocoque hull structure at the rear end thereof, the first protrusion and the second protrusion providing a pair of rear lift points.
