US12723854 - Broadhead

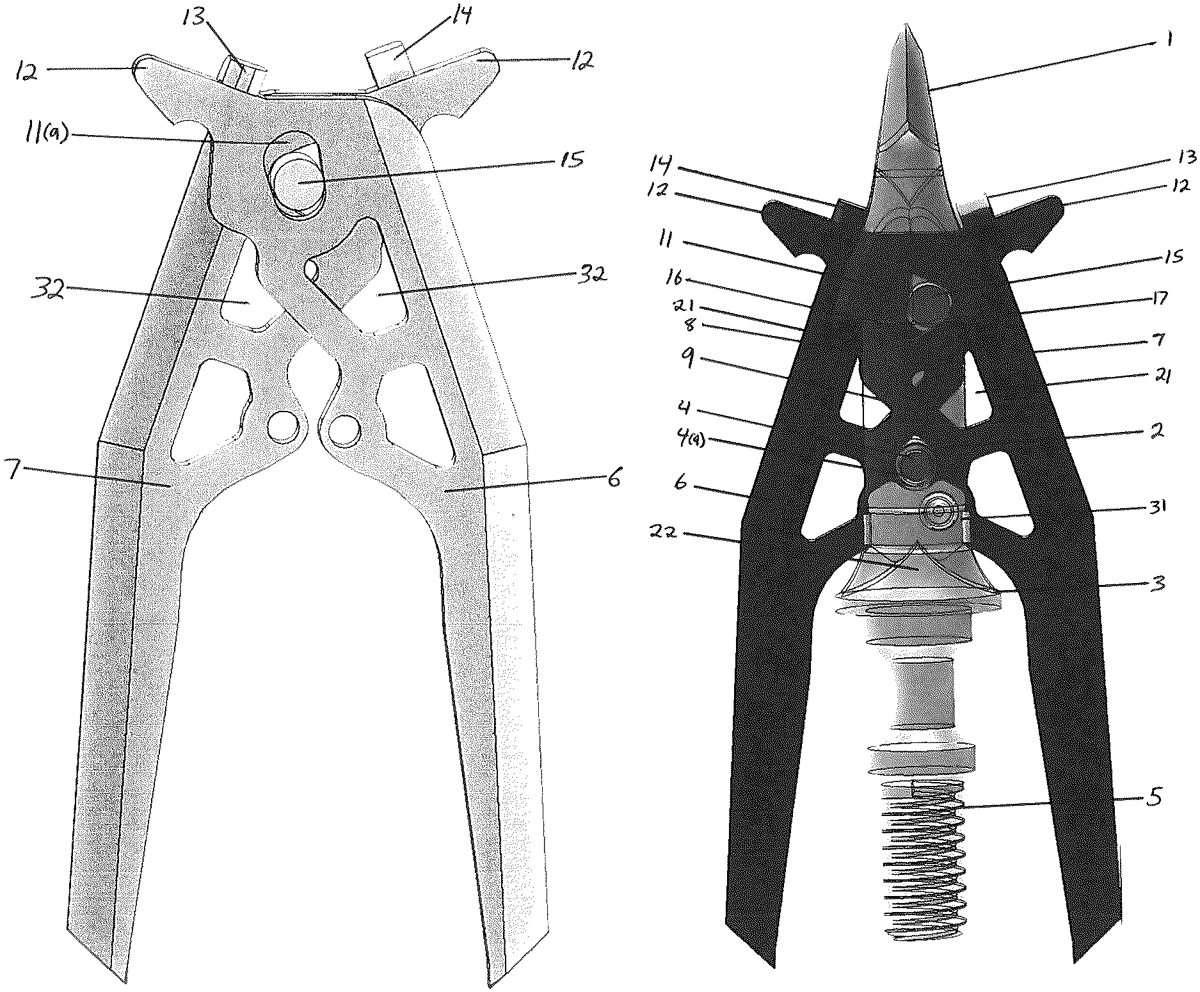

The patent describes a broadhead design featuring at least two overlapping blades that are housed within an elongated groove, allowing for independent pivoting movement. Each blade is connected by a free-floating movable member that can move both horizontally and vertically within the groove, enhancing the broadhead’s functionality.

Claim 1

1 . A broadhead comprising: at least two overlapping blades received within an elongated groove of a body, each blade coupled together with a free-floating movable member, wherein the free-floating movable member is configured to move freely within the elongated groove of the body, wherein at least one of the overlapping blades comprises a second elongated groove for receiving the free-floating movable member, and wherein the free-floating movable member is movable in a horizontal direction and a vertical direction relative to the body. at least two overlapping blades received within an elongated groove of a body, each blade coupled together with a free-floating movable member, wherein the free-floating movable member is configured to move freely within the elongated groove of the body, wherein at least one of the overlapping blades comprises a second elongated groove for receiving the free-floating movable member, and wherein the free-floating movable member is movable in a horizontal direction and a vertical direction relative to the body.
