Aug 18, 2026

US12710248 - Apparatus for remotely adjusting scope magnification

An assembly allows for remote control of magnification of a scope of a firearm, the assembly comprising a housing for an adjustable-magnification scope to be mounted thereto, a motor carried by the housing and coupled to a magnification adjuster ring of the scope for causing selective rotation thereof, and a battery carried by the housing and configured for providing electrical power to the motor and to accessories carried by the firearm. A switch actuated by a user controls operation of the motor.

Inventors: Arrius Lee Sorbonne, Benjamin Latham Griffith
Filing date: 2025-01-19

firearmscopeadjustmentmagnification

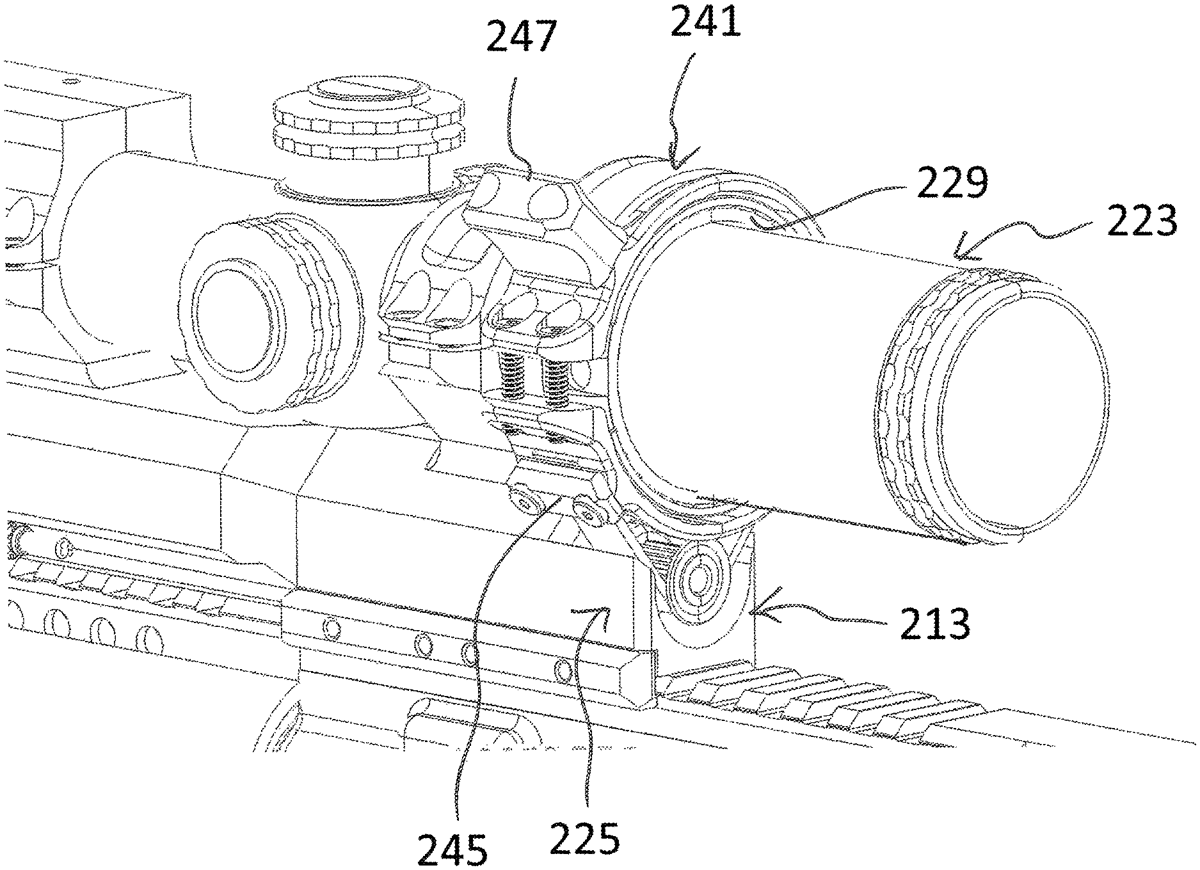

The patent describes an assembly that enables remote control of a firearm scope’s magnification through a motorized system, which includes a battery for power and a user-actuated switch. This assembly features a mount for the scope, a ring adapter for coupling to the scope’s adjuster ring, and a belt connecting the motor to the ring adapter for precise adjustments.

Claim 1

1 . An assembly allowing for remote control of magnification of a scope of a firearm, the assembly comprising: a mount adapted for an adjustable-magnification scope to be mounted thereto; a motor carried by the mount; a battery configured for providing electrical power to the motor; a ring adapter adapted to be coupled to an adjuster ring of the scope for rotation therewith, the ring adapter having a pair of retainers; a belt having opposite end portions and coupling the motor to the ring adapter, each retainer configured for attaching one of the end portions to the ring; and a switch adapted to be actuated by a user for controlling operation of the motor for causing selective rotation of the adjuster ring to adjust a magnification of the scope. a mount adapted for an adjustable-magnification scope to be mounted thereto; a motor carried by the mount; a battery configured for providing electrical power to the motor; a ring adapter adapted to be coupled to an adjuster ring of the scope for rotation therewith, the ring adapter having a pair of retainers; a belt having opposite end portions and coupling the motor to the ring adapter, each retainer configured for attaching one of the end portions to the ring; and a switch adapted to be actuated by a user for controlling operation of the motor for causing selective rotation of the adjuster ring to adjust a magnification of the scope.
