Aug 18, 2026

US12710247 - Firearm grip

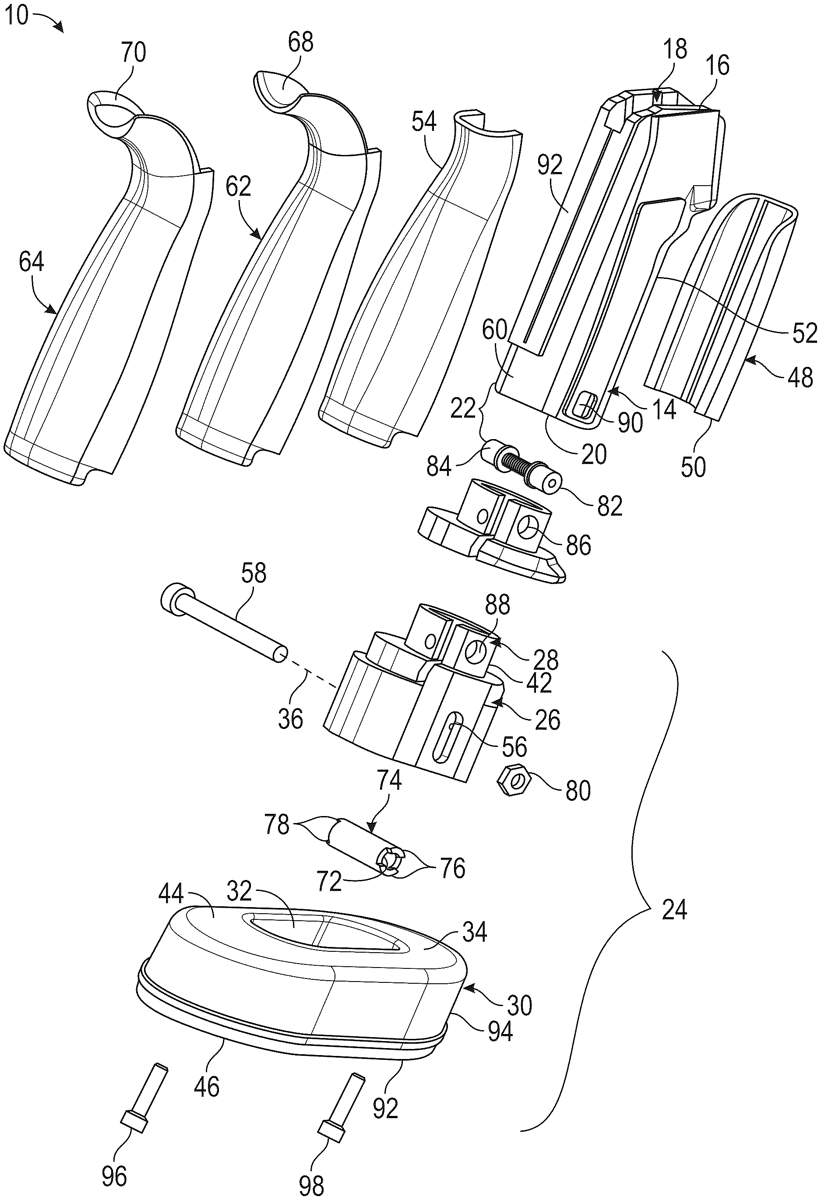

A firearm grip has an elongated body having an upper end having an upper attachment facility configured to attach to a firearm, the elongated body having an opposed lower end having a second attachment facility, a palm rest element having a base element having a third attachment facility configured to removably connect to the second attachment facility, the palm rest having a palm support element connected to the base element, and the palm support element defining a central aperture receiving the base element and having an upper surface encompassing the base element. The palm support element may be pivotally connected to the base element. The palm support element may be connected to pivot about a pivot axis transverse to a major plane of the firearm. The pivot axis may be at a level below the opposed lower end of the elongated body.

Assignee: CARACAL INTERNATIONAL, LLC
Inventors: Andrew Palmer, Konstantin Nedev, Naser Ali Alomaira
Filing date: 2024-09-11

firearmgripaccessory

The patent describes a firearm grip featuring an elongated body with attachment facilities at both ends and a removable palm rest element that can pivot about a transverse axis. The design allows for enhanced ergonomics and adaptability, improving user comfort and control while handling the firearm.

Claim 1

1 . A firearm grip comprising: an elongated body having an upper end having an upper attachment facility configured to attach to a firearm; the elongated body defining a longitudinal axis and a first outside diameter; the elongated body having an opposed lower end having a second attachment facility; the elongated body having a first length along the longitudinal axis; a palm rest element having a base element having a third attachment facility configured to removably connect to the second attachment facility; the palm rest element having a palm support element connected to the base element; the palm rest element having a second length along the longitudinal axis less than the first length; and the palm support element defining a central aperture receiving the base element and a second outside diameter wherein the second outside diameter is greater than the first outside diameter and having an upper surface encompassing the base element.
