Aug 11, 2026

US12704342 - Electronically controlled recoil positioning (ECRP) system for firearms

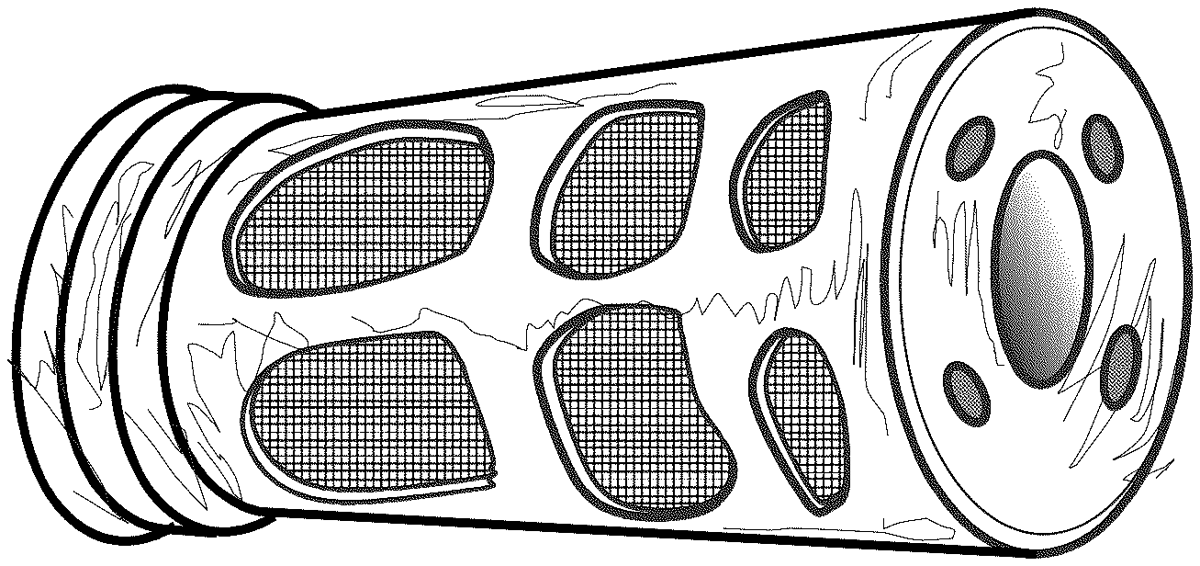

An Electronic Controlled Recoil Position (ECRP) unit is muzzle-mounted on a firearm and is designed for nearly real-time correction of the firearm's recoil. This correction can maintain a shooters aim on target or else nearly remove recoil for easier control of the firearm during full or semi-automatic fire. The ECRP unit is primarily designed as a cylindrical body that attaches to the muzzle of a firearm barrel via threaded or snap-on connection. The unit features an internal bore aligned with the barrel to allow projectiles to pass through unimpeded.

Inventors: John Alexander DeVita
Filing date: 2025-10-21

firearmrecoilcontrolsystem

The Electronically Controlled Recoil Position (ECRP) system is designed to be mounted on the muzzle of a firearm, allowing for real-time correction of recoil to help maintain a shooter’s aim during firing. It features a cylindrical body with a central bore for projectile passage and multiple variably-sized vents controlled by actuators that respond to detected recoil forces.

Claim 1

1 . An electronically controlled recoil positioning (ECRP) system for a firearm, comprising: a cylindrical body configured to attach to a muzzle of a firearm barrel, the cylindrical body having a central bore aligned with the firearm barrel; a plurality of variably-sized vents positioned around the cylindrical body, the plurality of variably-sized vents comprising at least one large vent, at least one medium vent, and at least one small vent arranged on each of a top side, a bottom side, a left side, and a right side of the cylindrical body; a plurality of actuators, each actuator configured to selectively open and close a corresponding one of the plurality of variably-sized vents; and a control system configured to selectively control each of the plurality of actuators based on detected recoil forces. a cylindrical body configured to attach to a muzzle of a firearm barrel, the cylindrical body having a central bore aligned with the firearm barrel; a plurality of variably-sized vents positioned around the cylindrical body, the plurality of variably-sized vents comprising at least one large vent, at least one medium vent, and at least one small vent arranged on each of a top side, a bottom side, a left side, and a right side of the cylindrical body; a plurality of actuators, each actuator configured to selectively open and close a corresponding one of the plurality of variably-sized vents; and a control system configured to selectively control each of the plurality of actuators based on detected recoil forces.
