US12704338 - Trigger device

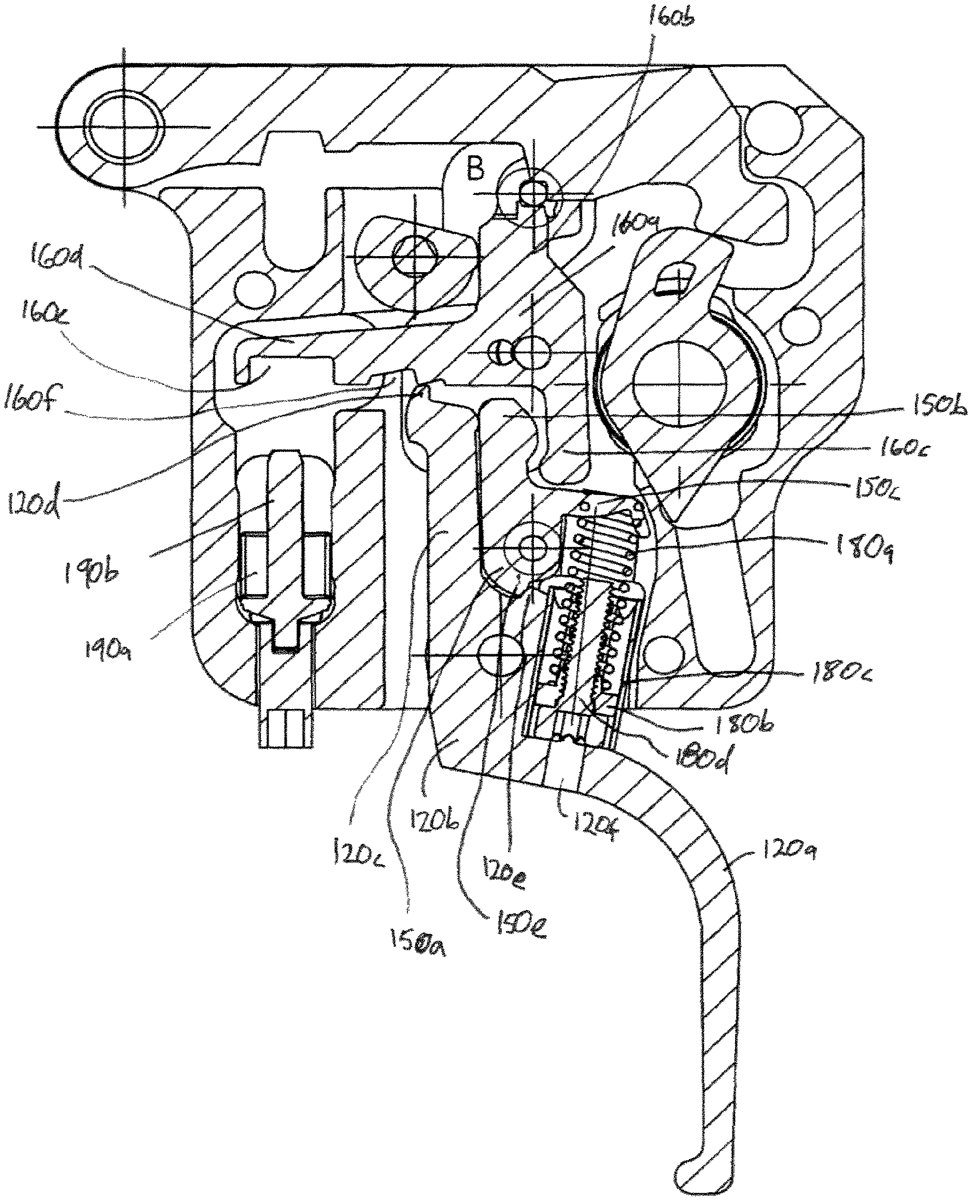

The patent describes a trigger device designed to activate a firing mechanism, featuring a housing, a sear, and a trigger with an extender that prevents the sear from unloading until the trigger is rotated to a ready position. Additionally, the device includes a ticker that allows the sear to unload and activate the firing mechanism upon further pressure applied to the trigger.

Claim 1

1 . A trigger device for activating a firing mechanism, the trigger device comprising: a housing; a sear pivotally mounted on the housing via a sear pivot pin; and a trigger pivotally mounted on the housing via a trigger pivot pin, the trigger comprising a trigger extender; and a ticker pivotally mounted on the housing via a ticker pivot pin, the ticker configured to inhibit movement of the sear until the trigger is rotated to a ready position, thereby inhibiting the sear from unloading; wherein the ticker is configured to unload the sear in response to further pressure applied to the trigger, thereby activating the firing mechanism. a housing; a sear pivotally mounted on the housing via a sear pivot pin; and a trigger pivotally mounted on the housing via a trigger pivot pin, the trigger comprising a trigger extender; and a ticker pivotally mounted on the housing via a ticker pivot pin, the ticker configured to inhibit movement of the sear until the trigger is rotated to a ready position, thereby inhibiting the sear from unloading; wherein the ticker is configured to unload the sear in response to further pressure applied to the trigger, thereby activating the firing mechanism.
