US12704337 - Firearm magazine release lever apparatus and related methods

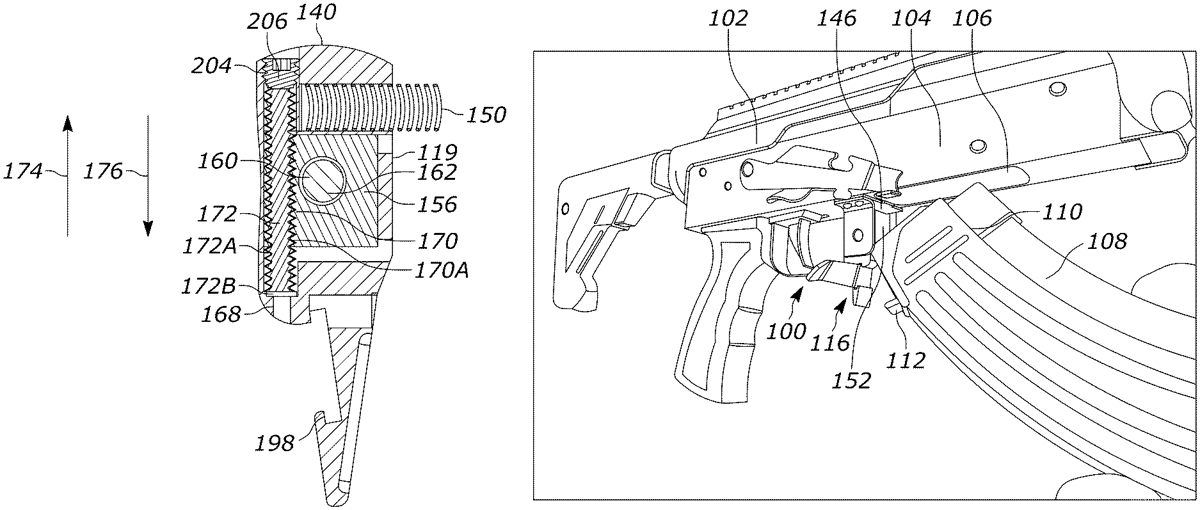

A magazine release lever apparatus is provided having an engagement portion and a lever arm. The engagement portion is to engage a portion of an ammunition magazine to secure the ammunition magazine to the firearm. The lever arm extends from the engagement portion. The lever arm is pivotable about a pivot axis to move the engagement portion between a magazine securing position and a magazine release position. The lever arm is to be adjustably mounted to the firearm to permit adjustment of a position of the engagement portion relative to the pivot axis.

Inventors: Marc Krebs
Filing date: 2025-03-26

firearmmagazinereleaselever

The patent describes a magazine release lever apparatus designed to secure and release an ammunition magazine from a firearm using a pivotable lever arm. This lever arm can be adjustably mounted to allow for customization of the engagement portion’s position relative to the pivot axis, enhancing user convenience and functionality.

Claim 1

1 . A magazine release lever apparatus comprising: an engagement portion to engage a portion of an ammunition magazine to secure the ammunition magazine to a firearm, a lever arm extending from the engagement portion, the lever arm pivotable about a pivot axis to move the engagement portion between a magazine securing position and a magazine release position, the lever arm to be adjustably mounted to the firearm to permit adjustment of a position of the engagement portion relative to the pivot axis; and an adjustment block pivotably connected to the firearm, the lever arm connected to the adjustment block to pivot with the adjustment block, the lever arm movable relative to the adjustment block and the pivot axis to permit adjustment of the position of the engagement portion. an engagement portion to engage a portion of an ammunition magazine to secure the ammunition magazine to a firearm, a lever arm extending from the engagement portion, the lever arm pivotable about a pivot axis to move the engagement portion between a magazine securing position and a magazine release position, the lever arm to be adjustably mounted to the firearm to permit adjustment of a position of the engagement portion relative to the pivot axis; and an adjustment block pivotably connected to the firearm, the lever arm connected to the adjustment block to pivot with the adjustment block, the lever arm movable relative to the adjustment block and the pivot axis to permit adjustment of the position of the engagement portion.
