US12674637 - Trigger lock device

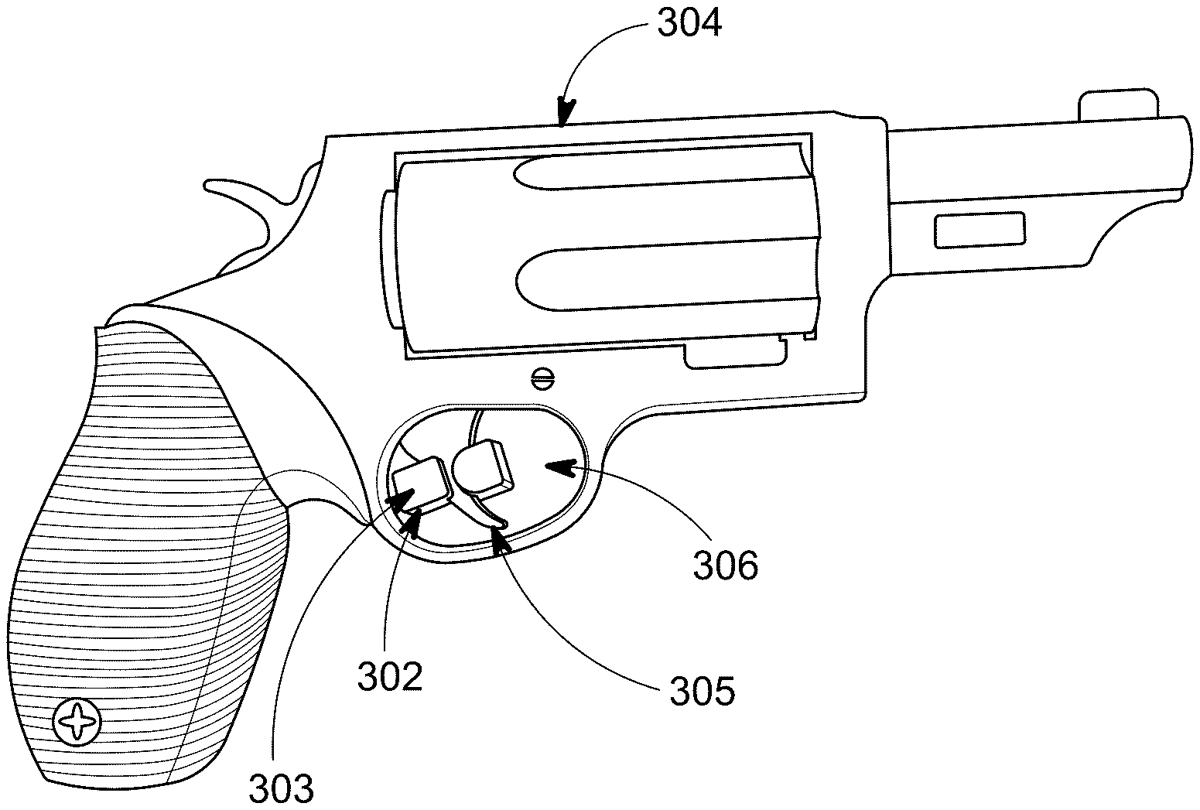

A secure trigger lock for a firearm includes a solid body, an interior region formed within the solid body and adapted to accept a trigger of the firearm via an entrance formed to allow insertion of the trigger into the interior region of the solid body, the trigger when inserted into the interior region resting against an arcuate interior wall of the interior region of the solid body. A heavy jamb security device for a firearm is disclosed. The heavy jamb security device includes a pin lock; two legs coupled to the pin lock; a leg holder coupled to the heavy jamb security device; pin lock head tabs; and a guard rail nose configured to guide the two legs of the heavy jamb security device down to a bottom of the leg holder on either side of the leg holder.

Inventors: Harvey Jackson
Filing date: 2024-05-03

firearmtriggerlocksecurity

The patent describes a secure trigger lock device designed to accommodate a firearm’s trigger, featuring a flexible solid body with an interior region that allows the trigger to rest against an arcuate wall. Additionally, it includes a user-friendly tab for easy release and can be positioned in multiple orientations within the firearm’s trigger region.

Claim 1

1 . A secure trigger lock device for a firearm, comprising: a flexible solid body; an interior region formed within the solid body and adapted to accept a trigger of the firearm via an entrance formed to allow insertion of the trigger into the interior region of the flexible solid body, the trigger when inserted into the interior region resting against a flexible arcuate interior wall of the interior region of the flexible solid body; and a tab positioned upon the solid body of the secure trigger lock device and proximate to the entrance to the interior region, the tab configured to accept a finger of the user to allow release of the secure trigger lock device, and where the flexible solid body is configured for positioning in more than one orientation within an interior trigger region of the firearm to allow insertion of the trigger into the interior region of the flexible solid body. a flexible solid body; an interior region formed within the solid body and adapted to accept a trigger of the firearm via an entrance formed to allow insertion of the trigger into the interior region of the flexible solid body, the trigger when inserted into the interior region resting against a flexible arcuate interior wall of the interior region of the flexible solid body; and a tab positioned upon the solid body of the secure trigger lock device and proximate to the entrance to the interior region, the tab configured to accept a finger of the user to allow release of the secure trigger lock device, and where the flexible solid body is configured for positioning in more than one orientation within an interior trigger region of the firearm to allow insertion of the trigger into the interior region of the flexible solid body.
