Jun 9, 2026

US12650613 - Aiming glasses

Aiming glasses can be used for finding a line of aim when shooting firearms and pneumatic weapons, as well as in archery, billiards, golf, and curling. The aiming glasses include an optical part in which aiming guides can be moved and rotated relative to a frame in order to align the center of the guides with the visual axis of the eye, which passes through the center of the fovea and the target, and to vertically orient the guides. The results are improved at aiming accuracy and greater versatility of the aiming glasses for use in different types of sport. A further technical result is that of enabling a sportsperson to cultivate a reproducible afterimage of the aiming guides at the start of a line of aim.

Assignee: Valery Anatolyevich PANCHENKO
Inventors: Valery Anatolyevich Panchenko, Boris Valeryevich Panchenko
Filing date: 2022-03-31

aimingglassesfirearmssports

The patent describes aiming glasses designed to enhance accuracy in shooting and various sports by allowing the user to adjust movable and rotatable luminous aiming guides relative to their visual axis. This innovative optical system facilitates the alignment of the aiming reticle with the user’s eye and target, promoting improved aim and consistency in performance.

Claim 1

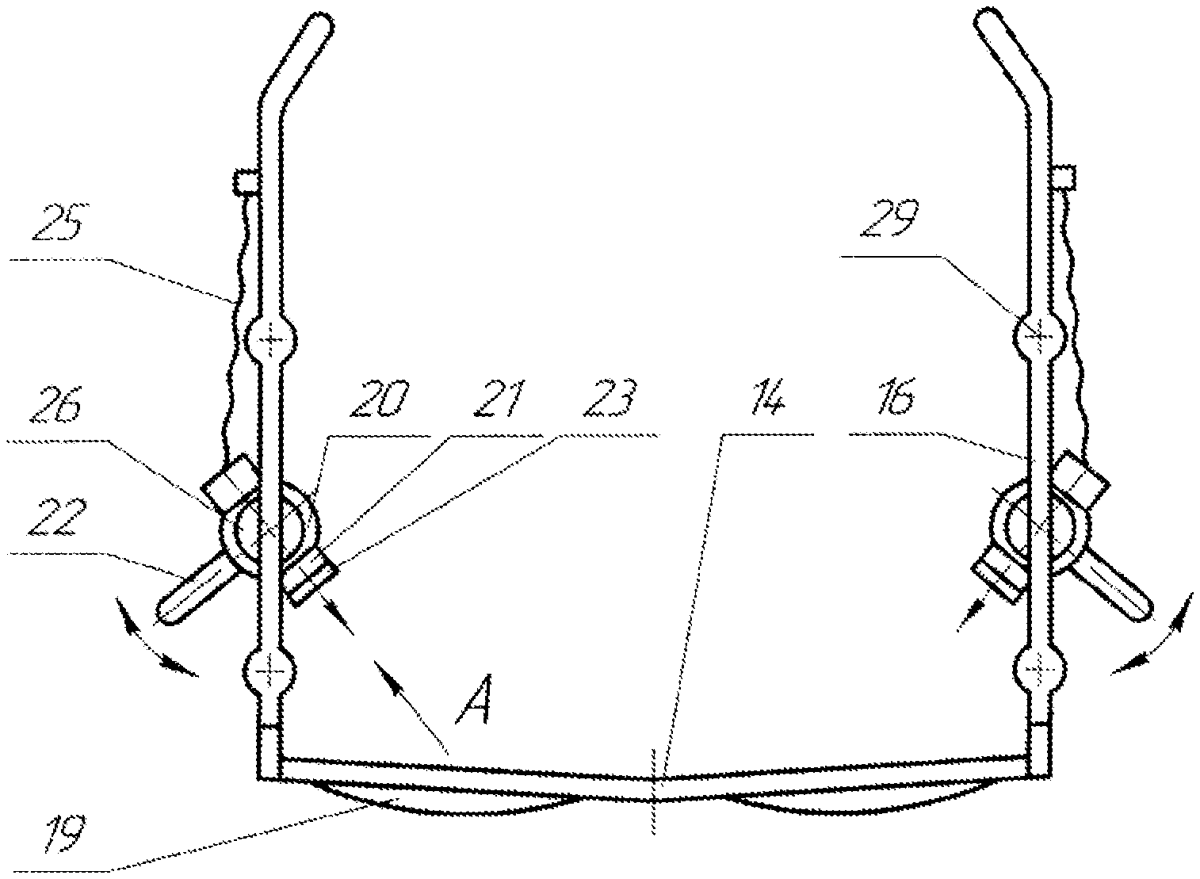

1 . Aiming glasses, comprising an optical part having aiming guides and a frame, wherein the optical part is configured in the form of movable and rotatable luminous aiming guides on non-movable lenses so as to enable determining the disposition of the center of a pit in an eye yellow spot and that of the visual axis origin inside the eye and aligning the center of a visible aiming reticle on the lenses and its visible vertical line passing throughout the lens and throughout the eye’s field of vision with the center of the pit in the eye yellow spot and a target, and to enable to subsequently checking of the disposition of the external aiming guides with respect to the center of the aiming reticle, its vertical line and the target, the aiming reticle being disposed on the lenses at a distance shorter than the eye focal distance, the luminous aiming guides being configured in the form of an aiming reticle and produced by movable and rotatable light emitters disposed on the arms of the glasses, wherein the light emitter movement and rotation device is configured in the form of a Hooke’s joint.
