US12638265 - Wrist strap trigger-actuated safety release

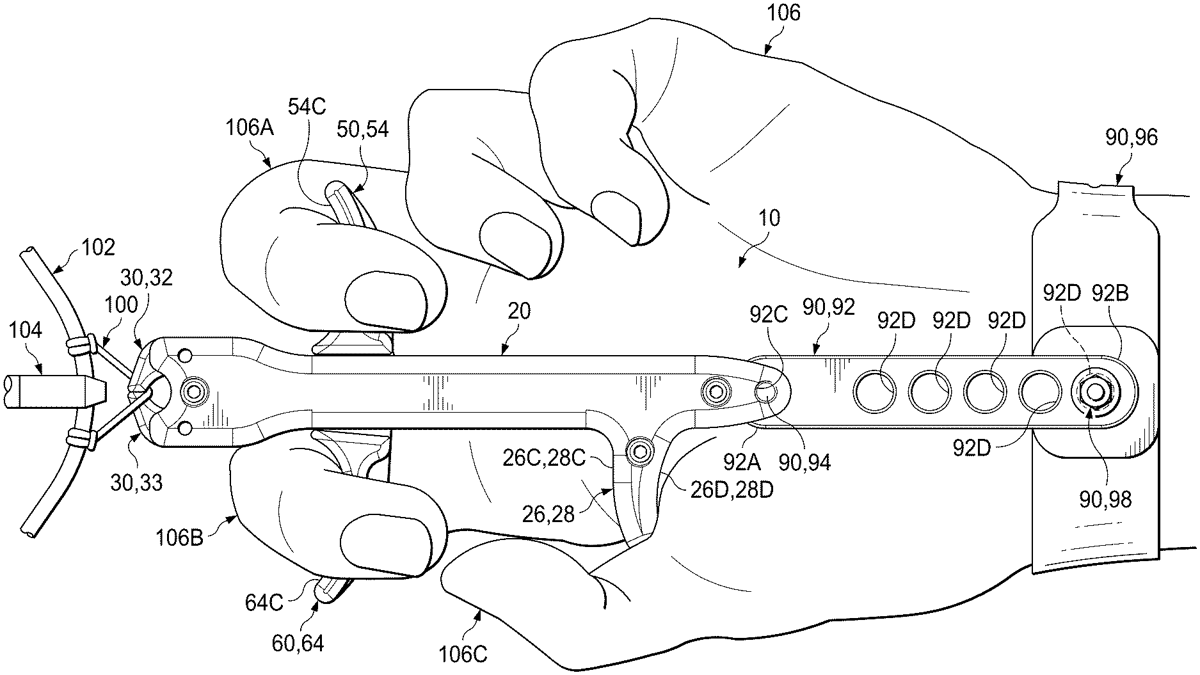

An archery release for firing an arrow from a bow. The archery release includes a main body, a jaw assembly that operably engages with the main body and is adapted to receive and hold a D-loop formed on a bowstring, a pair of triggers that operably engages with the jaw assembly for moving the jaw assembly between a closed position and an open position, and a biaser that operably engages with the main body and at least one trigger of the pair of triggers for biasing the pair of triggers towards the closed position. The archery release also includes that when the pair of triggers moves from a first position to a second position, a first jaw component and a second jaw component of the jaw assemblies simultaneously transition from the closed positioned to the open position.

Assignee: True Form Archery LLC
Inventors: Paul E. Turley
Filing date: 2024-07-10

archerysafetyrelease

The patent describes an archery release mechanism that features a main body, a jaw assembly for holding a bowstring’s D-loop, and a pair of triggers that control the opening and closing of the jaw assembly. It includes a biasing mechanism that ensures the triggers return to a closed position, allowing for simultaneous operation of the jaw components when the triggers are activated.

Claim 1

1 . An archery release, comprising: a main body; a jaw assembly operably engaging with the main body that is adapted to receive and hold a D-loop formed on a bowstring; a pair of triggers operably engaging with the jaw assembly for moving the jaw assembly between an open position and a closed position; and a biaser operably engaging with the main body and at least one trigger of the pair of triggers for biasing the pair of triggers towards the closed position; wherein when the pair of triggers moves from a first position to a second position, a first jaw and a second jaw of the jaw assembly simultaneously transition from the closed position to the open position. a main body; a jaw assembly operably engaging with the main body that is adapted to receive and hold a D-loop formed on a bowstring; a pair of triggers operably engaging with the jaw assembly for moving the jaw assembly between an open position and a closed position; and a biaser operably engaging with the main body and at least one trigger of the pair of triggers for biasing the pair of triggers towards the closed position; wherein when the pair of triggers moves from a first position to a second position, a first jaw and a second jaw of the jaw assembly simultaneously transition from the closed position to the open position.
