US12638264 - Arrow rest launcher accessory

An arrow rest launcher apparatus and installation method is disclosed which comprises a multilayered sheet in various shape configurations which are adapted to install on an arrow rest launcher, the apparatus is robust and reduces the sound made by an arrow sliding along the arrow rest launcher during bow draw.

Inventors: Jon P Walterscheit, Jr.
Filing date: 2024-08-06

accessoryarcherybow

The patent describes an arrow rest launcher apparatus featuring a multilayered sheet designed to reduce noise from arrows sliding during bow draw. The sheet includes a central portion with flanges and is constructed from two materials that adhere to the arrow rest launcher.

Claim 1

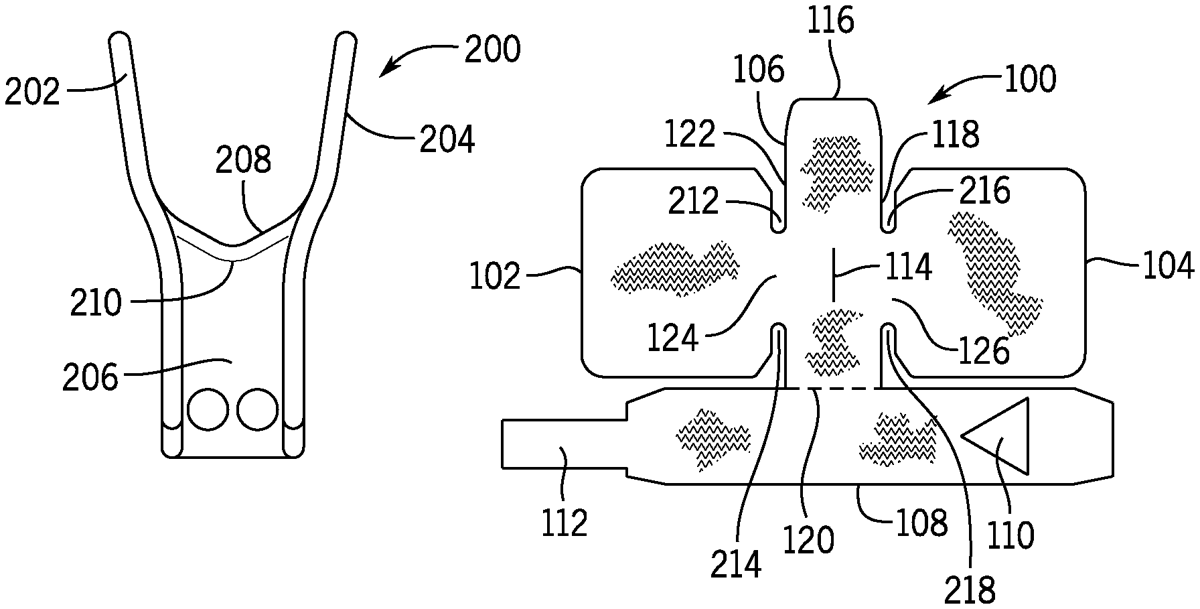

1 . An arrow rest launcher apparatus comprising: a sheet comprising: a first layer comprising a first material with a first material top surface and a first material bottom surface; and a second layer with a second material top surface and a second material bottom surface, the second material top surface adhered to the first material bottom surface and configured to at least partially adhere to an arrow rest launcher, wherein the sheet further comprises: a central portion comprising a first side, a second side, a third side, and a fourth side, the fourth side located opposite the second side; a right flange connected to a second side of the central portion; a bottom portion comprising at least two ends and connected to a third side of the central portion and arranged perpendicular to the central portion; and a left flange connected to fourth side of the central portion. a sheet comprising: a first layer comprising a first material with a first material top surface and a first material bottom surface; and a second layer with a second material top surface and a second material bottom surface, the second material top surface adhered to the first material bottom surface and configured to at least partially adhere to an arrow rest launcher, a first layer comprising a first material with a first material top surface and a first material bottom surface; and a second layer with a second material top surface and a second material bottom surface, the second material top surface adhered to the first material bottom surface and configured to at least partially adhere to an arrow rest launcher, wherein the sheet further comprises: a central portion comprising a first side, a second side, a third side, and a fourth side, the fourth side located opposite the second side; a right flange connected to a second side of the central portion; a bottom portion comprising at least two ends and connected to a third side of the central portion and arranged perpendicular to the central portion; and a left flange connected to fourth side of the central portion. a central portion comprising a first side, a second side, a third side, and a fourth side, the fourth side located opposite the second side; a right flange connected to a second side of the central portion; a bottom portion comprising at least two ends and connected to a third side of the central portion and arranged perpendicular to the central portion; and a left flange connected to fourth side of the central portion.
