Apr 21, 2026

US12607430 - Pistol stabilizer platform

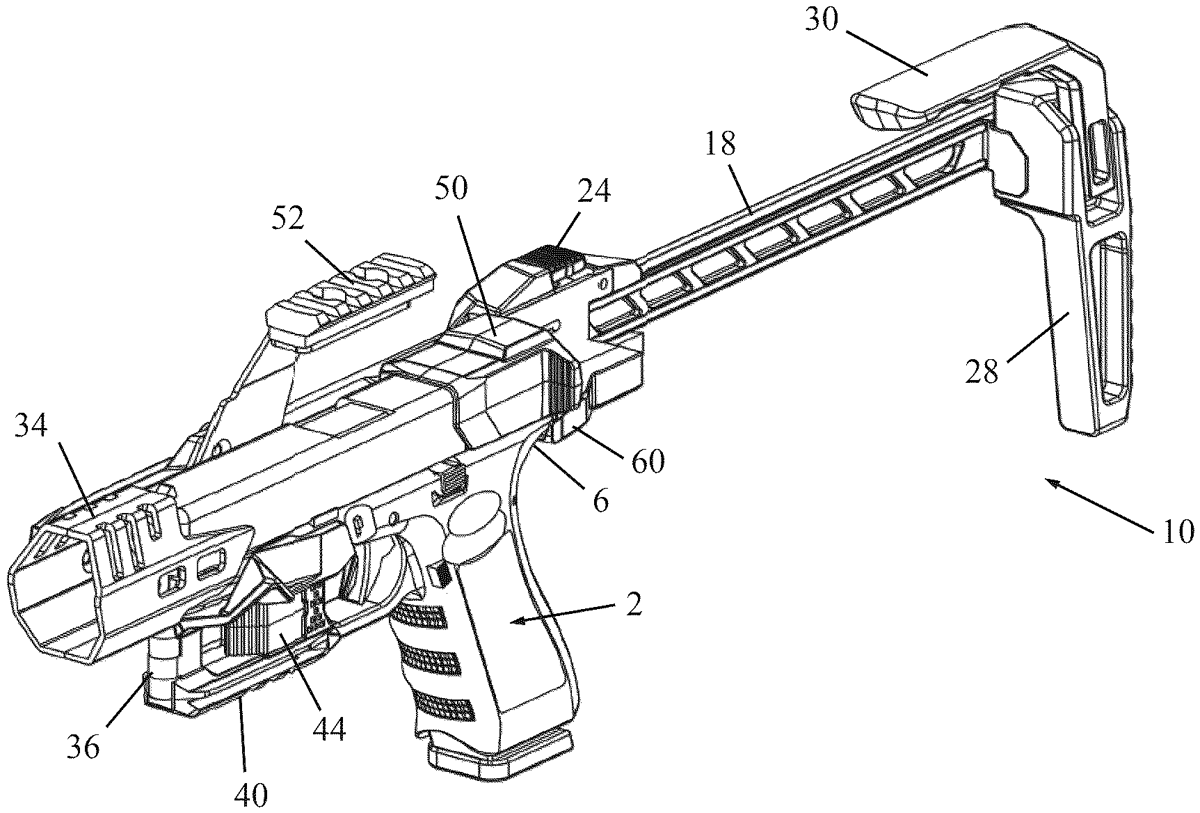

A pistol stabilizer platform includes a platform member including multiple mounting provisions, a forward handgun clasping assembly secured to the platform member at a first one of the multiple mounting provisions, and a rear grip abutment member secured to the platform member at a second one of the multiple mounting provisions. The platform member is located only on one side of the handgun placed in the pistol stabilizer platform.

Assignee: RT Recover Innovations Ltd.
Inventors: Tamir Porat
Filing date: 2024-10-15

pistolstabilizerfirearmaccessory

The patent describes a pistol stabilizer platform that features a platform member with multiple mounting provisions, designed to secure a handgun by clasping its forward portion and supporting its rear grip. This platform is uniquely positioned on one side of the handgun and includes an extendable rear buttstock rail for added stability.

Claim 1

1 . A pistol stabilizer platform comprising: a platform member comprising multiple mounting provisions; a forward handgun clasping assembly secured to said platform member at a first one of said multiple mounting provisions, said forward handgun clasping assembly being configured to secure a forward portion of a handgun placed in said pistol stabilizer platform and to abut against a trigger guard of the handgun; and a rear grip abutment member secured to said platform member at a second one of said multiple mounting provisions, said rear grip abutment member being configured to secure a rear portion of the handgun placed in said pistol stabilizer platform, and wherein said platform member is located only on one side of the handgun placed in said pistol stabilizer platform; and further comprising an extendable rear buttstock rail arranged to slide in a channel bounded on one side thereof by said platform member. a platform member comprising multiple mounting provisions; a forward handgun clasping assembly secured to said platform member at a first one of said multiple mounting provisions, said forward handgun clasping assembly being configured to secure a forward portion of a handgun placed in said pistol stabilizer platform and to abut against a trigger guard of the handgun; and a rear grip abutment member secured to said platform member at a second one of said multiple mounting provisions, said rear grip abutment member being configured to secure a rear portion of the handgun placed in said pistol stabilizer platform, and wherein said platform member is located only on one side of the handgun placed in said pistol stabilizer platform; and further comprising an extendable rear buttstock rail arranged to slide in a channel bounded on one side thereof by said platform member.
