US12601573 - Method and tool for producing a base piece of a multi-part cartridge case, base piece and cartridge case

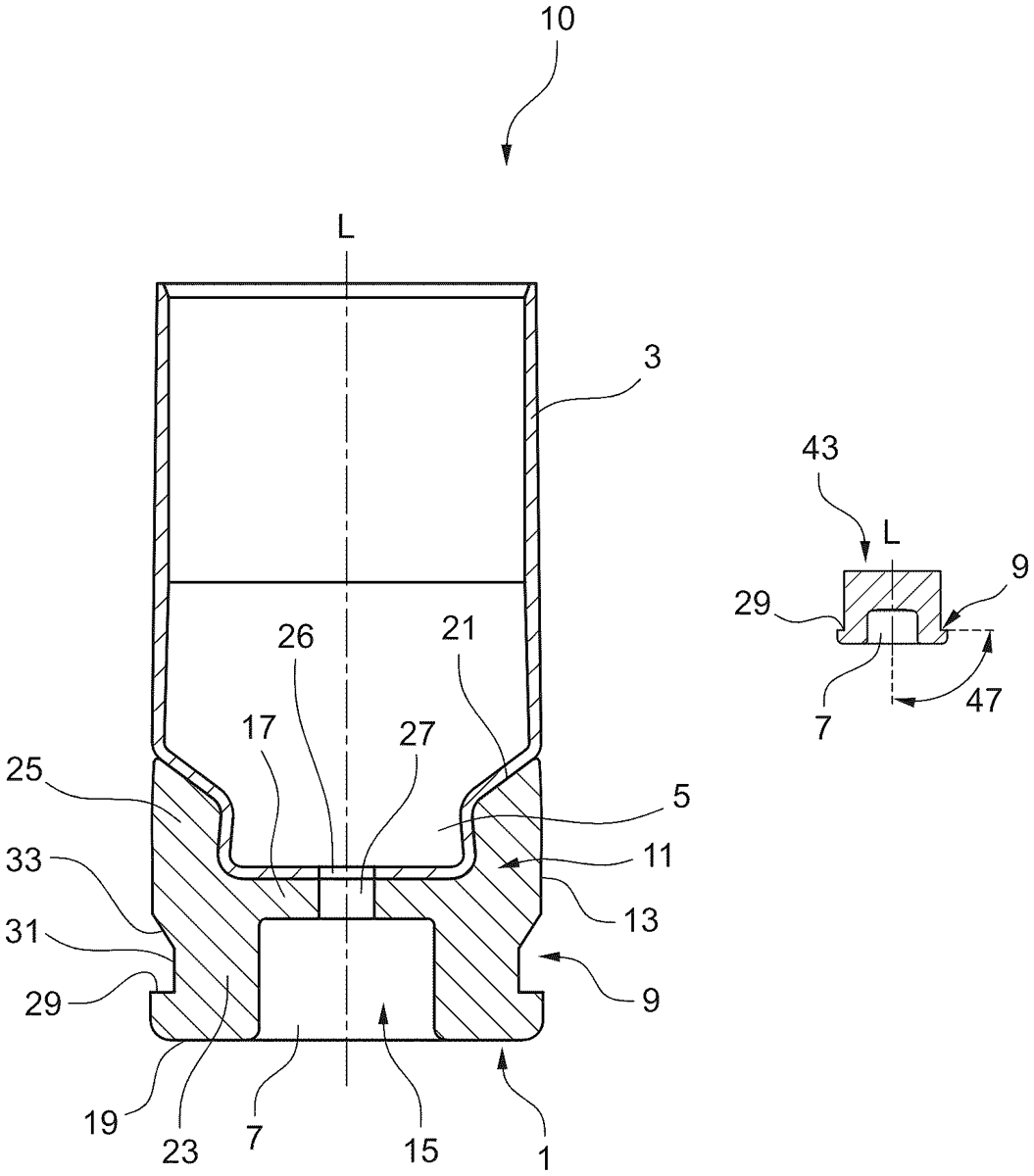

A method for producing a base piece for receiving a primer for a multi-part cartridge case may include producing (e.g., by deforming) an extraction groove for engagement by a firearm ejector. The production of the extraction groove may be before a receptacle for a case jacket of the multi-part cartridge case for receiving a projectile is produced, such as by deforming. A tool arrangement for producing a base piece may be used to produce the base piece.

Assignee: RUAG Ammotec AG
Inventors: Peter Biedermann, Fabian Gloor
Filing date: 2022-09-15

cartridgeammunitionfirearm

This patent describes a method for creating a base piece of a multi-part cartridge case that includes forming an extraction groove for firearm ejector engagement before producing a receptacle for the case jacket. A specialized tool arrangement is utilized to facilitate the production of this base piece.

Claim 1

1 . A method for producing a base piece adapted to receive a primer for a multi-part cartridge case, the method comprising: producing, by deforming a blank, an extraction groove adapted to engage with a firearm ejector; and producing, by deforming the blank and after production of the extraction groove, a receptacle for a case jacket of the multi-part cartridge case adapted to receive a projectile. producing, by deforming a blank, an extraction groove adapted to engage with a firearm ejector; and producing, by deforming the blank and after production of the extraction groove, a receptacle for a case jacket of the multi-part cartridge case adapted to receive a projectile.
