US12601564 - Alignment guidance system

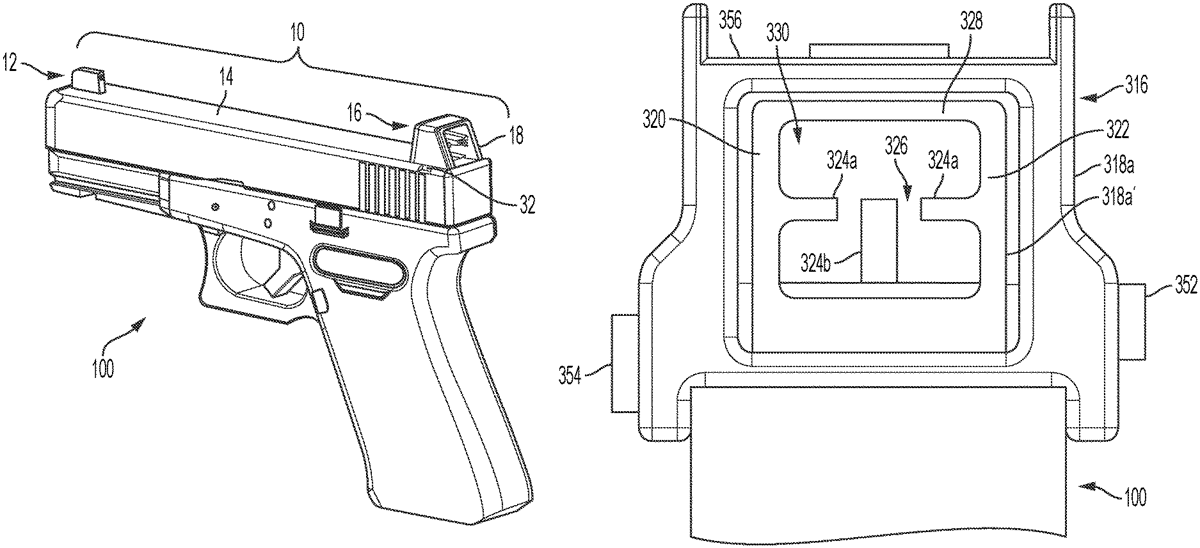

A combined sight and optic sight mount securable to an upper surface of a firearm comprising: an aperture frame including: a stationary aft aperture frame; and a movable aft aperture sub-frame situated within the stationary aft aperture frame and comprising: opposed vertical sidewalls, a top wall connecting the opposed vertical sidewalls, and a pair of substantially horizontal planar aiming reference members extending inwardly from the vertical sidewalls and defining a gap therebetween.

Inventors: Christopher Rocca
Filing date: 2022-10-26

firearmsightopticmount

The patent describes a rear sight for firearms that features a combined sight and optic mount with a unique aperture frame design, allowing for improved aiming accuracy. It includes a movable sub-frame and planar aiming reference members that enhance alignment and targeting capabilities.

Claim 1

1 . A rear sight for a firearm comprising: an aperture frame securable to an upper surface of a rear end of a firearm including opposed vertical sidewalls and defining a single square, rectangular or octagonal central aperture; and at least one planar aiming reference member extending inwardly from the aperture frame having a distal end terminating at about a center region of the aperture frame. an aperture frame securable to an upper surface of a rear end of a firearm including opposed vertical sidewalls and defining a single square, rectangular or octagonal central aperture; and at least one planar aiming reference member extending inwardly from the aperture frame having a distal end terminating at about a center region of the aperture frame.
