Mar 24, 2026

US12584711 - Universal mount systems and methods for tactical accessories

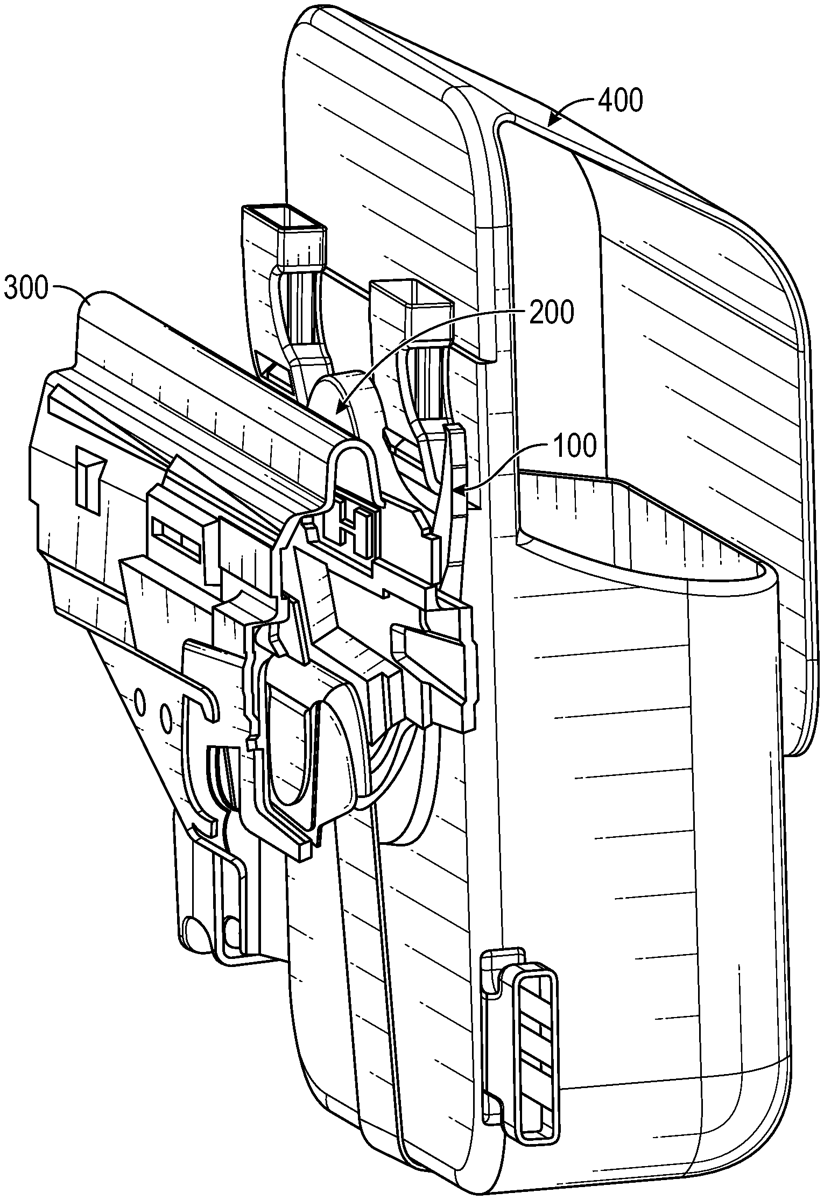

A universal mount system for mounting an accessory to a base in various orientations is provided. The present disclosure provides a universal mount capable of being coupled to various bases. An accessory mount is then coupled to the universal mount in one of a number of different orientations. An accessory, such as a holster, is then coupled to the accessory mount.

Assignee: BP Tactical, LLC
Inventors: Adam Main
Filing date: 2022-12-02

mountaccessorytactical

The patent describes a universal mount system that allows for the attachment of accessories to a base in various orientations, utilizing a wheel mechanism and a fastener for secure coupling. This system includes an accessory mount with protrusions that fit into channels of the universal mount, enabling versatile positioning of accessories like holsters.

Claim 1

1 . A universal mount system comprising: a universal mount; an accessory mount configured to be coupled to the universal mount, wherein the accessory mount is configured to be coupled in multiple orientations; and an accessory coupled to the accessory mount, wherein the universal mount comprises a wheel mechanism comprising channels radially spaced around a central bore, wherein the accessory mount comprises protrusions radially spaced around a central hole, wherein the universal mount is configured to be coupled to the accessory mount in multiple orientations by securing a fastener through the central hole and the central bore when the protrusions are inserted into the channels, wherein the accessory comprises a cavity disposed on a first surface of the accessory, and wherein the accessory mount comprises a t-slot configured to couple with the cavity. a universal mount; an accessory mount configured to be coupled to the universal mount, wherein the accessory mount is configured to be coupled in multiple orientations; and an accessory coupled to the accessory mount, wherein the universal mount comprises a wheel mechanism comprising channels radially spaced around a central bore, wherein the accessory mount comprises protrusions radially spaced around a central hole, wherein the universal mount is configured to be coupled to the accessory mount in multiple orientations by securing a fastener through the central hole and the central bore when the protrusions are inserted into the channels, wherein the accessory comprises a cavity disposed on a first surface of the accessory, and wherein the accessory mount comprises a t-slot configured to couple with the cavity.
