US12372332 - Additively manufactured armor and method for making the same

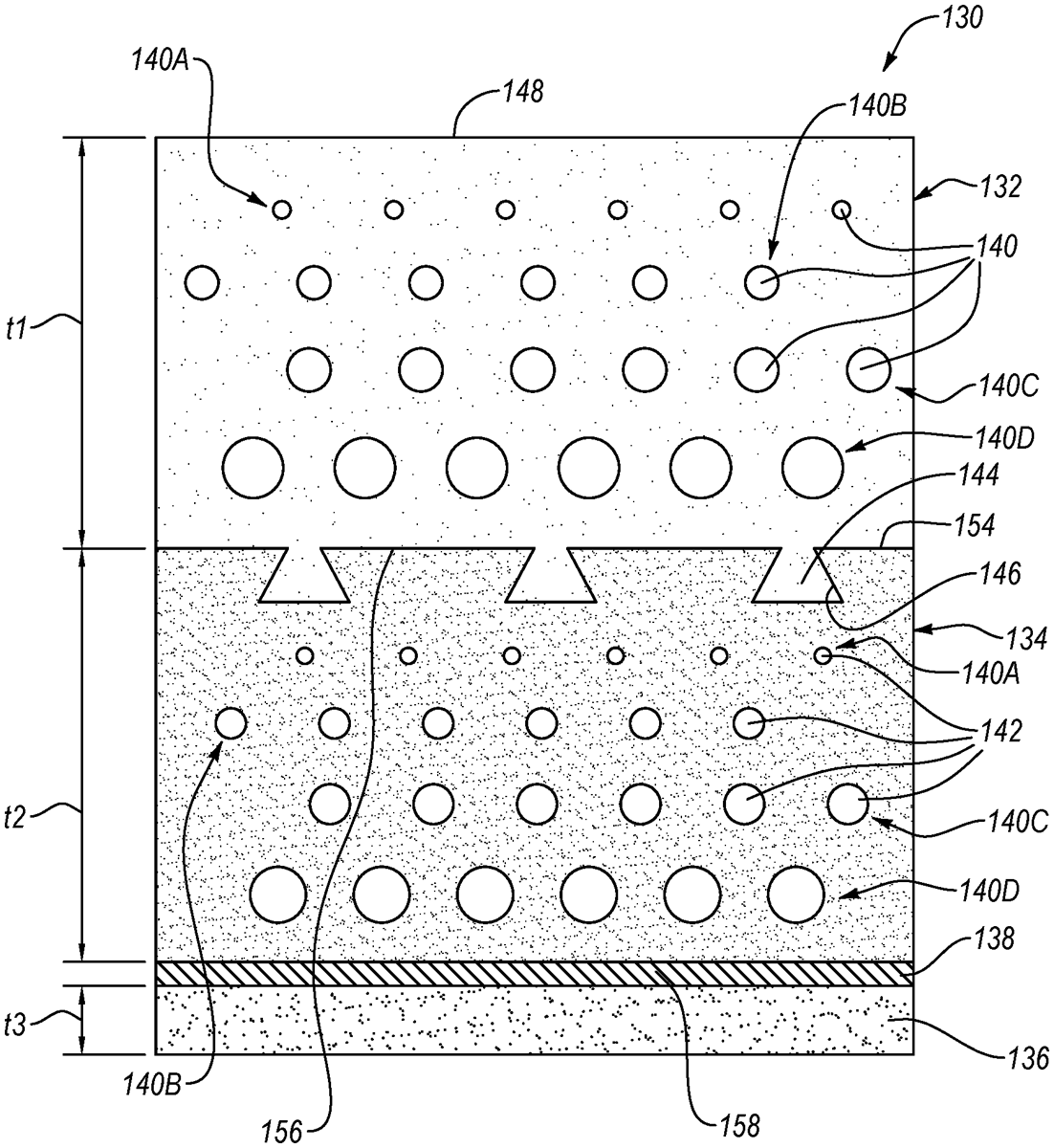

Disclosed herein is an additively manufactured multi-layered ballistic armor and a method of forming a multi-layered ballistic armor. The multi-layered ballistic armor includes a metal layer and a ceramic layer. The metal layer includes first mechanical interconnection features and a plurality of first pores. The ceramic layer includes second mechanical interconnection features configured to mechanically interconnect with the first mechanical interconnection features and a plurality of second pores.

Assignee: The Boeing Company
Inventors: Michael D. Nevinsky, Antonio Paesano, Nilay B. Pandya
Filing date: 2022-06-06

The patent describes a multi-layered ballistic armor made through additive manufacturing, consisting of a metal layer with mechanical interconnection features and a ceramic layer that interconnects with the metal layer. Both layers have varying densities due to strategically placed pores, enhancing their ballistic performance.

Claim 1

A ballistic armor comprising: a metal layer, comprising: first mechanical interconnection features; and a plurality of first pores; and a ceramic layer, comprising: second mechanical interconnection features, configured to mechanically interconnect with the first mechanical interconnection features; and a plurality of second pores; wherein: the plurality of first pores is configured such that a density of the metal layer varies across a thickness of the metal layer; and the plurality of second pores is configured such that a density of the ceramic layer varies across a thickness of the ceramic layer. a metal layer, comprising: first mechanical interconnection features; and a plurality of first pores; and first mechanical interconnection features; and a plurality of first pores; and a ceramic layer, comprising: second mechanical interconnection features, configured to mechanically interconnect with the first mechanical interconnection features; and a plurality of second pores; second mechanical interconnection features, configured to mechanically interconnect with the first mechanical interconnection features; and a plurality of second pores; wherein: the plurality of first pores is configured such that a density of the metal layer varies across a thickness of the metal layer; and the plurality of second pores is configured such that a density of the ceramic layer varies across a thickness of the ceramic layer. the plurality of first pores is configured such that a density of the metal layer varies across a thickness of the metal layer; and the plurality of second pores is configured such that a density of the ceramic layer varies across a thickness of the ceramic layer.
