Jul 22, 2025

US12364323 - Quick detach belt loop

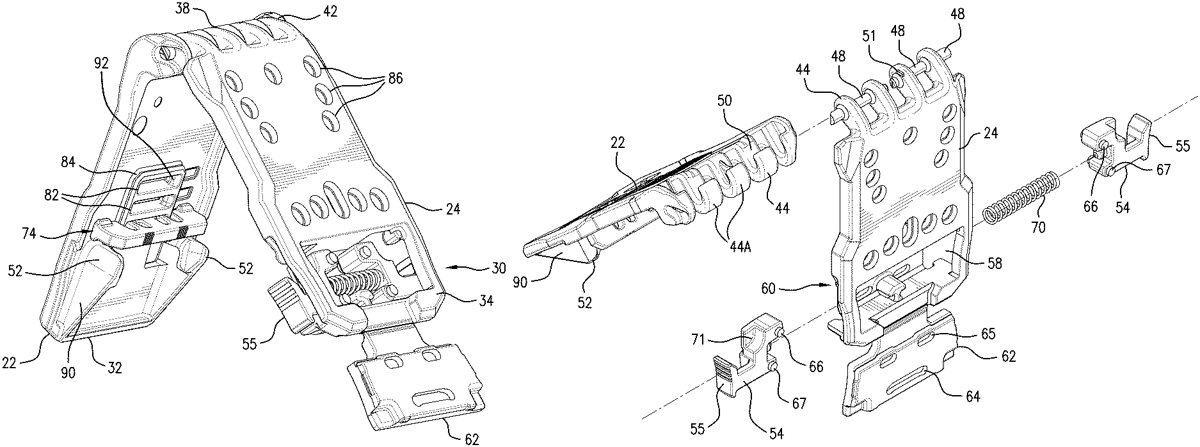

In embodiments, a belt clamp includes an inboard plate and an outboard plate that are pivotally coupled at their upper ends. The belt clamp may also include a spring biased locking mechanism that selectively and releasably connects the lower end of the inboard plate to the lower end of the outboard plate by way of locking posts in the inboard plate that are displaced upwardly from the lower edge of said plate. The outboard locking plate may have latch members that are entirely contained (except for opposing actuation buttons) within a compartment formed by two portions of the outboard plate connected by a living hinge. The opposing actuation buttons require a motion in a first direction, such as upwardly, to allow motion in a second direction, such as inwardly, to rotate the latching members inwardly to release the locking posts.

Assignee: Revelyst Operations LLC
Inventors: Christopher J. Michael, Daniel Sereday
Filing date: 2024-04-29

The patent describes a quick detach belt loop that features a pivotally coupled belt clamp with spring-biased locking mechanisms for securing holsters or accessories to a user’s belt. The design includes latching members that can be easily engaged or disengaged using opposing finger buttons, enhancing user convenience and functionality.

Claim 1

A belt clamp for securing a holster or accessories to a user’s belt, the belt clamp comprising: a first plate and a second plate that are pivotally coupled at respective first ends; one or more spring biased first locking mechanisms configured to selectively and releasably connect a second end of the first plate to a second end of the second plate, wherein the one or more spring biased first locking mechanisms comprise one or more latching members positionable between a latched position and an unlatched position, wherein the one or more latching members comprise two finger buttons facing in opposite directions to one another, the one or more latching members configured to be biased to the latched position; and one of the second end of the first plate and the second end of the second plate comprising one or more second locking mechanisms configured to engage with the one or more latching members. a first plate and a second plate that are pivotally coupled at respective first ends; one or more spring biased first locking mechanisms configured to selectively and releasably connect a second end of the first plate to a second end of the second plate, wherein the one or more spring biased first locking mechanisms comprise one or more latching members positionable between a latched position and an unlatched position, wherein the one or more latching members comprise two finger buttons facing in opposite directions to one another, the one or more latching members configured to be biased to the latched position; and one of the second end of the first plate and the second end of the second plate comprising one or more second locking mechanisms configured to engage with the one or more latching members.

Google Patents

https://patents.google.com/patent/US12364323

USPTO PDF

https://image-ppubs.uspto.gov/dirsearch-public/print/downloadPdf/12364323
