May 6, 2025

US12292255 - Adjustable stock

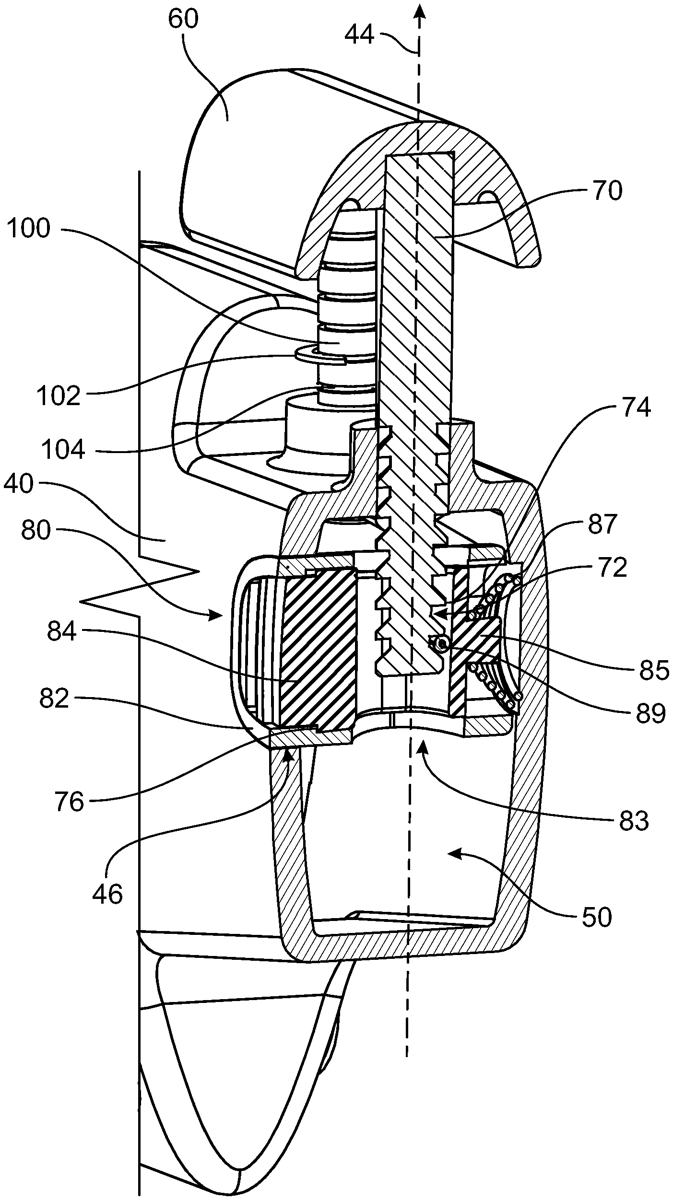

A stock has a buttstock. The buttstock includes an adjustable comb. The comb is connected to a body of the buttstock via a rod extending into the body of the buttstock and movable along a first axis. The position of the rod and comb is locked and unlocked by a latch. The buttstock includes an adjustable recoil pad. The recoil pad is connected to the body via a threaded rod mated with a nut embedded within an end of the body. The threaded rod and recoil pad move a direction along a longitudinal axis of the body depending on the rotation of the nut.

Assignee: Smith & Wesson Inc.
Inventors: Zachary Kusnierz
Filing date: 2023-08-11

firearmstockadjustable

The patent describes an adjustable firearm stock featuring a buttstock with a movable comb and recoil pad, allowing for customization of fit and comfort. The comb’s position is secured or released by a latch mechanism, enabling adjustments along a transverse axis relative to the stock’s longitudinal axis.

Claim 1

A stock for a firearm, said stock comprising: a body extending along a longitudinal axis; a chamber positioned within said body and defined by an inner surface of said body, said chamber comprising an opening providing access to said chamber; a comb positioned on said body overlying said chamber; a rod connected to said comb, said rod configured to extend through said opening into said chamber; and a latch comprising a first engagement surface positioned within said chamber, said latch movable between a first position in which said first engagement surface engages said rod to fix a position of said comb, and a second position in which said first engagement surface does not engage said rod thereby permitting motion of said comb relative to said body, wherein said rod and said comb are movable along a first axis oriented transversely to said longitudinal axis. a body extending along a longitudinal axis; a chamber positioned within said body and defined by an inner surface of said body, said chamber comprising an opening providing access to said chamber; a comb positioned on said body overlying said chamber; a rod connected to said comb, said rod configured to extend through said opening into said chamber; and a latch comprising a first engagement surface positioned within said chamber, said latch movable between a first position in which said first engagement surface engages said rod to fix a position of said comb, and a second position in which said first engagement surface does not engage said rod thereby permitting motion of said comb relative to said body, wherein said rod and said comb are movable along a first axis oriented transversely to said longitudinal axis.
