May 6, 2025
US12292252 - Feeder door and method of use

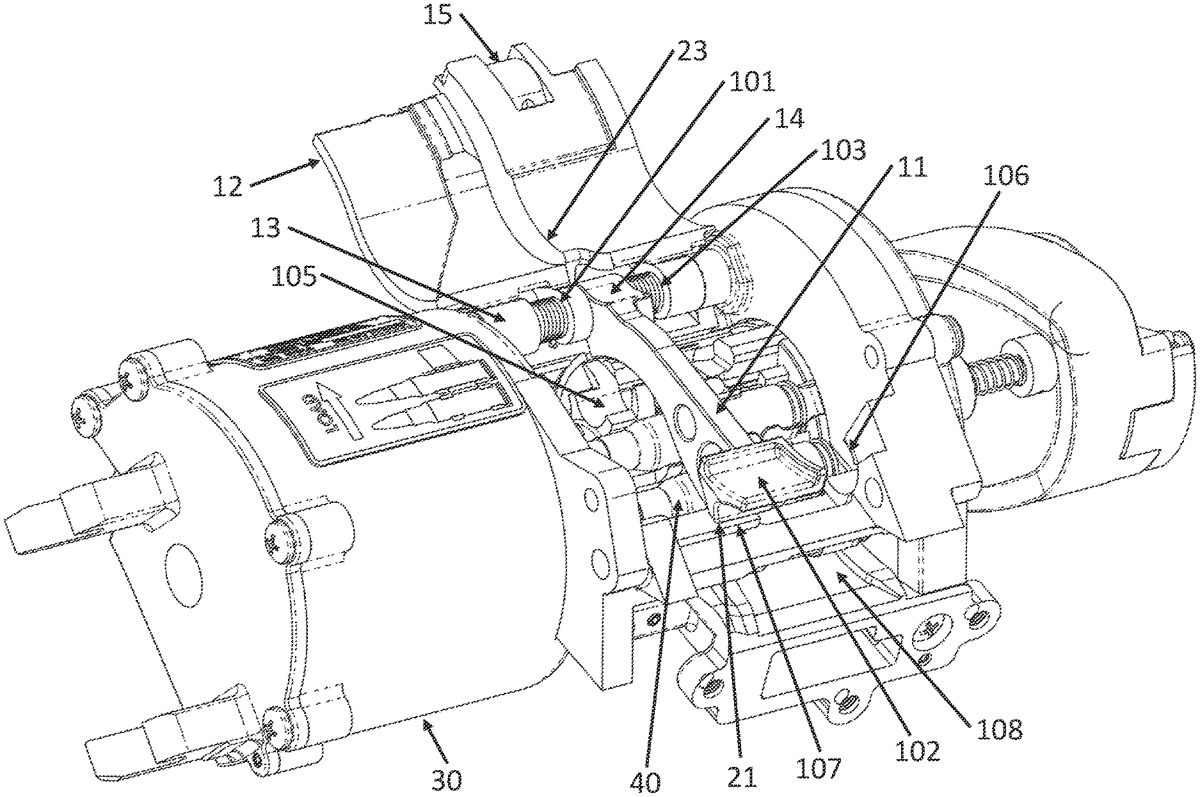

A feeder door of a feeder of a machine gun, the feeder including a feeder housing and the feeder door spring-loaded and pivotally coupled via a pivotal coupling to the feeder housing between at least an open position and a closed position, the feeder door comprising a base including a slot; a retainer lever; and a pivotal coupling independent of the feeder door and feeder housing pivotal coupling configured to spring-load and pivotally couple the retainer lever to the feeder housing between at least a stowed position with the retainer lever retracted in the slot of the base of the feeder door and a deployed position with the deployable portion extending outwardly from the slot of the base feeder door.
