US12716688 - Firearm-scope-attachable diopter lens device

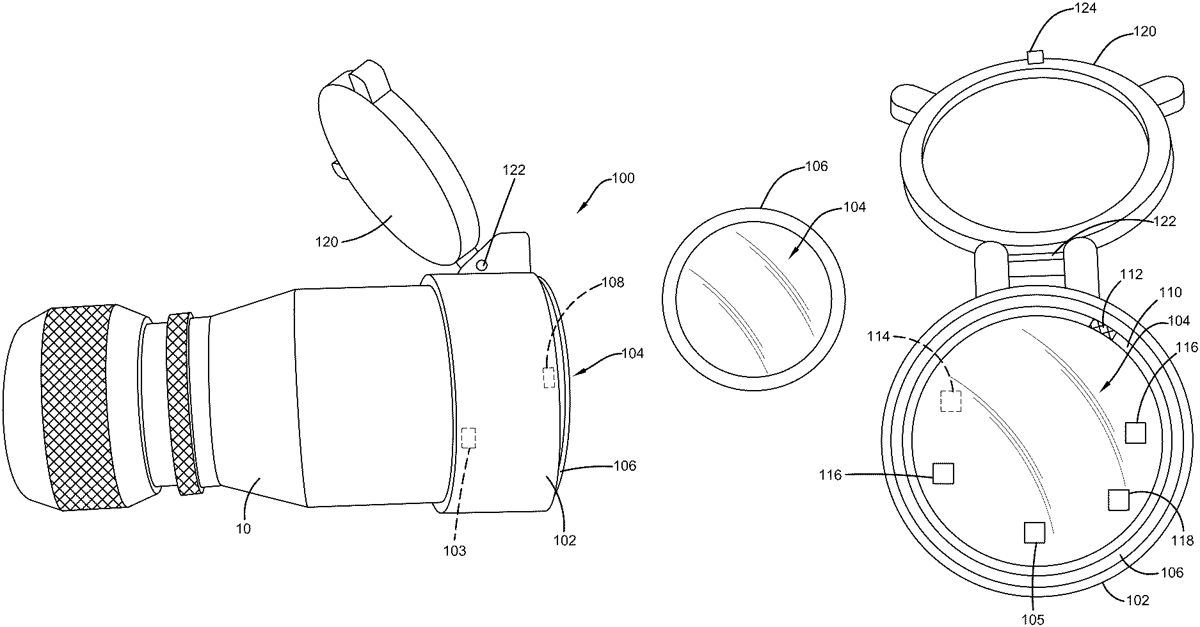

A firearm-scope-attachable diopter lens device is provided. The device is comprised of an eyepiece-mounted optical accessory configured to affix securely over the eyepiece of a standard firearm scope without requiring any permanent modification to the scope itself. The device comprises a housing with at least one optically-aligned diopter lens, available in a range of diopter strengths to correct myopia, hyperopia, or astigmatism. In certain embodiments, the lens is installed in a removable cartridge that interfaces with the housing via a fastener such as a magnetic ring, twist-lock, or bayonet mechanism. Selective lens tinting may be applied to enhance contrast and reduce glare in varying light conditions. An optional micro-adjustment ring concentrically aligned with the lens permits fine diopter calibration in increments of ±0.25 diopters. A protective flip-up cap with a silent hinge mechanism and optional locking feature is integrated to shield the lens from debris when not in use.
