Nov 11, 2025

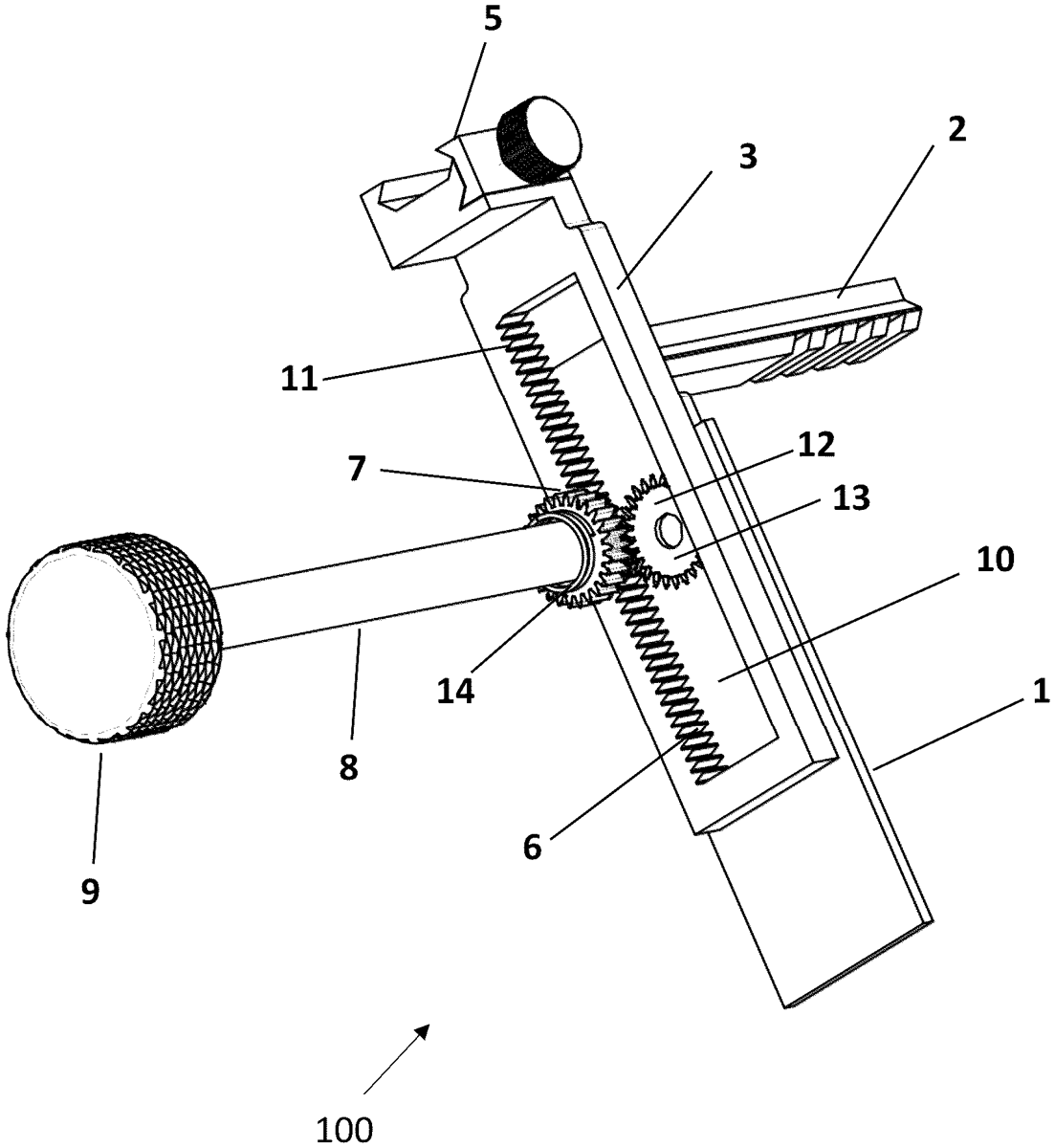

US12467711 - Gun support elevation adjuster

An elevation adjuster for a gun support includes a support mount for detachably mounting the elevation adjuster to a gun support, a base portion connected to the support mount, and a pinion rotatably connected to the base portion. The elevation adjuster further includes an extendible member slidably engaged with the base portion. The extendible member comprises a rack portion which is engaged with the pinion, such that rotation of the pinion causes the extendible member to move relative to the base portion. The pinion is connected to a handle for manipulation by a user of a gun which is connected, in use, to the elevation adjuster. The extendible member comprises a gun mount for detachably connecting the elevation adjuster to a gun.

Jun 17, 2025

US12332009 - Arrangement of an elevation device for a vehicle mounted weapon system

The present invention relates to an arrangement for an elevation device of a vehicle mounted weapon system. The weapon system comprise a weapon and a feeding chute. Said elevation device is arranged to allow elevation movement of the weapon about an elevation axis. Said elevation is performed in connection to sides of said elevation device about said elevation axis. Said feeding chute is configured to be arranged in connection to one side. Said arrangement comprises an arc-shaped sector bearing device of a bearing configuration for facilitating said elevation. Said bearing device is arranged in connection to a front portion at said one side at a radial distance from said elevation axis so as to provide space for said feeding chute on said one side in connection to said elevation axis. The invention also relates to a vehicle with an arrangement according to the present invention.
