Disassembly
Patents tagged Disassembly
Dec 2, 2025

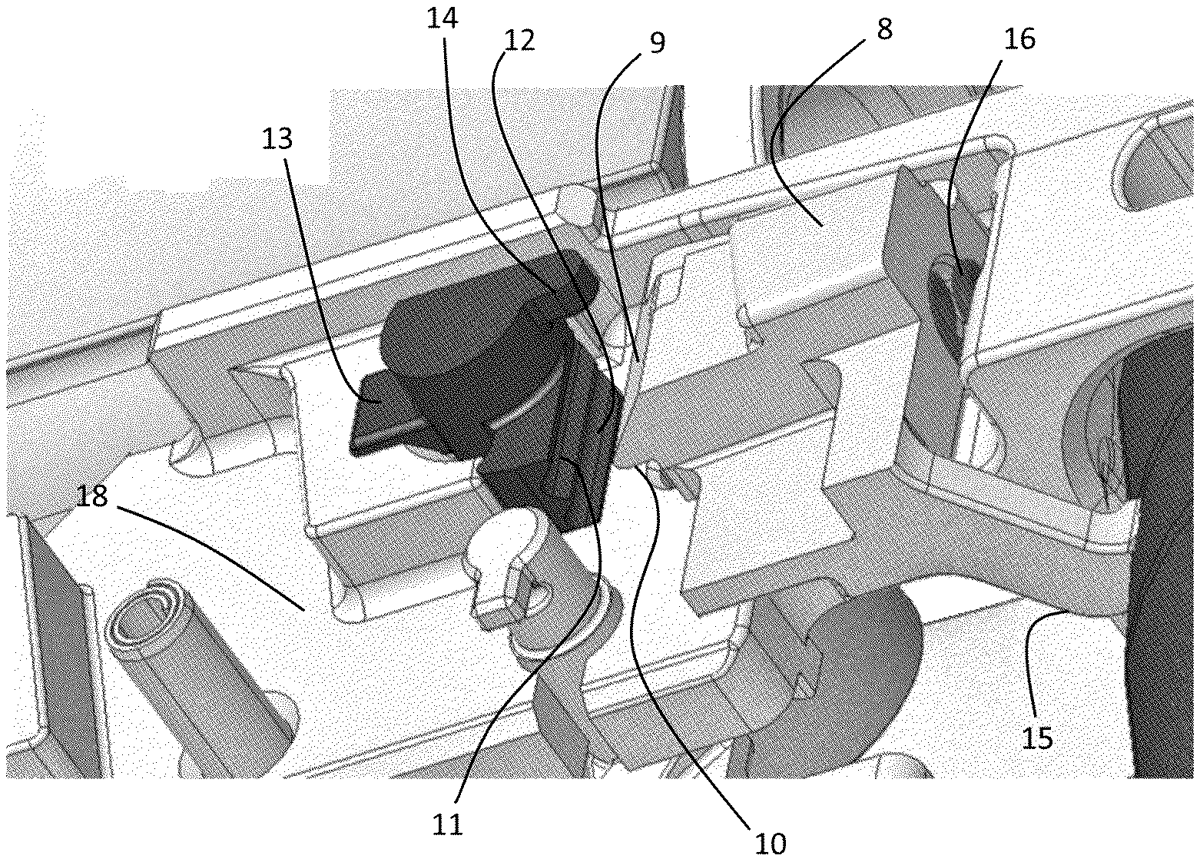

This disclosure concerns a pistol having an anti-disassembly protection device, which includes a disassembly key arranged rotatably in a frame, and which can be manually turned between an angular locking position and an angular disassembly position, and which disassembly key may occupy a transverse resting position and a transverse rotation position. The disassembly key has blocking means that cooperate with additional blocking means on the frame in order to prevent rotation of the disassembly key into the angular disassembly position when the disassembly key occupies the transverse resting position.
Aug 26, 2025
A firearm system which allows firearm disassembly without trigger actuation. The system includes a slide having a divot or cavity disposed laterally off of the main channel. This divot allows for the pivoting of the striker sleeve such that the striker tang sear can move between a first position that is engaged with a corresponding trigger bar sear of a frame and a second position whereby the striker tang sear is disposed at least partially within the divot. This allows the striker tang sear to clear the trigger bar sear for disassembly without requiring a pull of the trigger.
Jun 3, 2025
Disclosed is a quick disassembly recoil group structure for firearms that are used in hunting and defense fields and that have various recoil groups due to its working principle, which enables simple assembly and disassembly of the recoil group using various hand tools in cases where cleaning, maintenance or part replacement is required.
