Adjustment
Patents tagged Adjustment
Feb 17, 2026
An archery cam adjustment assembly for an archery bow includes an axle extending along an axis from a first end to an opposing second end and structured to traverse a limb of an archery bow. The axle further includes a central portion defining a plurality of threads. A cam support is structured to support a cam and to engage the central portion of the axle. A securing member is structured to be moved between a locked and an unlocked state. In the unlocked state, the axle is enabled to rotate freely relative to the cam support to move the cam support along the axis and displace the cam in a lateral direction with respect to the limb. In the locked state, the axle is inhibited from rotating relative to the cam support and the cam support is inhibited from moving along the axis.
Feb 10, 2026
An apparatus has a ring adapter coupled to a magnification adjustment ring of a scope and a slider assembly carried on a portion of a firearm spaced from the adapter. The slider assembly has a slider configured for longitudinal translation relative to the firearm and has at least one front pulley located forward of the slider, and a pair of rear pulleys are located below the ring adapter. A cable couples the slider to the ring adapter, the cable extending from one portion of the ring adapter and around one of the rear pulleys, the cable then extending forward and around the front pulley and then rearward and around the other of the rear pulleys to another portion of the ring adapter. The slider is coupled to the cable, so that translation of the slider causes motion of the cable about the pulleys and corresponding rotation of the ring adapter.
Nov 18, 2025
An adjustment tool assembly for a firearm comprised of a double-sided adjuster tool and a housing having a handle. Each end of the double-sided adjuster tool can be comprised of a tool, each tool can have a shaft, and a middle portion can be positioned between the shaft of each tool end. The handle of the housing can have a receiving cavity for at least a portion of the double-sided adjuster tool, and the middle portion of the adjuster tool can engage with the receiving cavity to secure the adjuster tool to the handle.
Oct 7, 2025

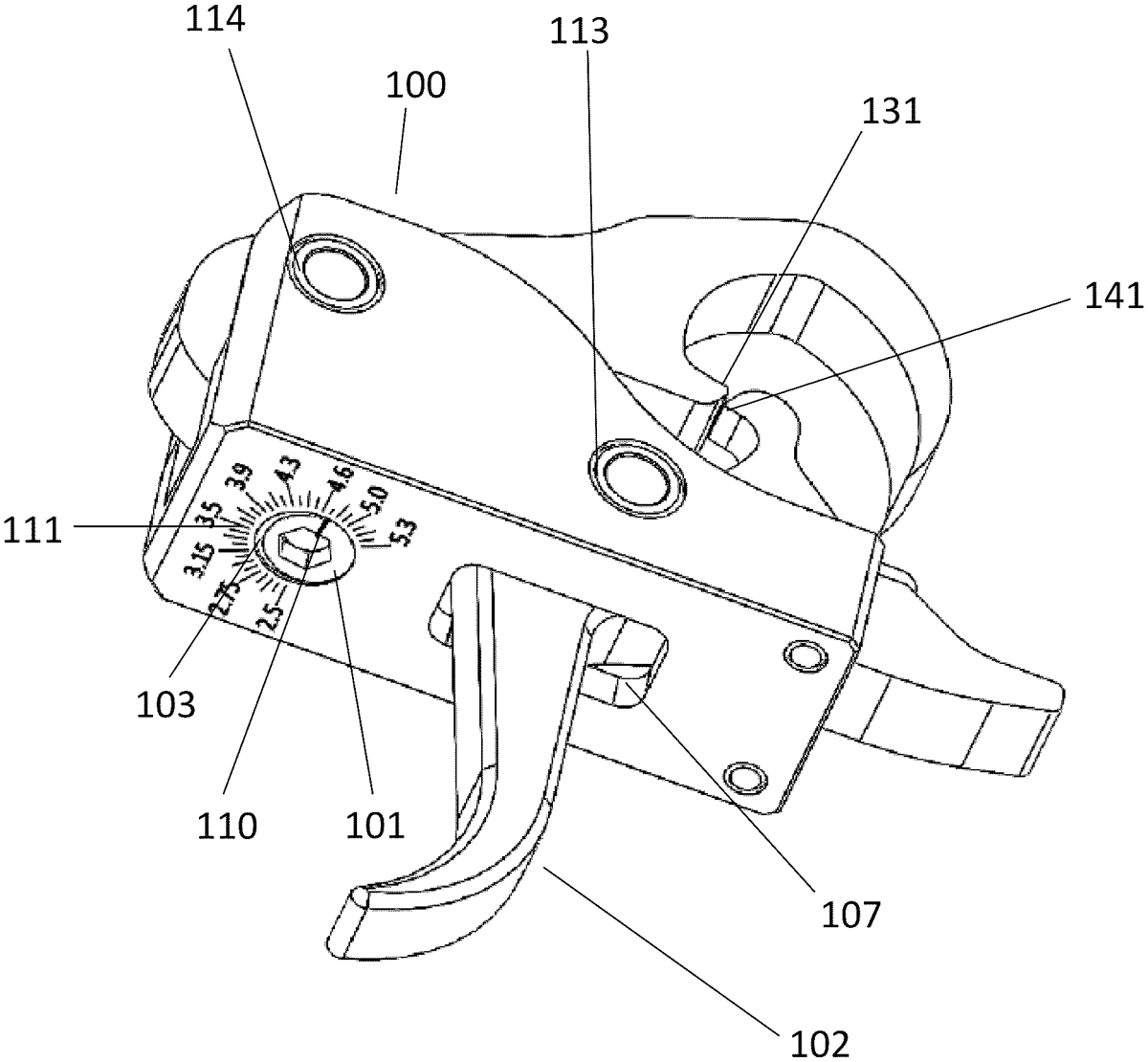

A trigger assembly and associated method for use for the adjustment of trigger pull force of a firearm. The trigger assembly having a housing with an adjustment means in the form of a fastener in communication with one or more trigger springs that interface with a trigger. The adjustment means can be configured to adjust a length of one or more trigger springs to adjust the trigger pull force of the trigger assembly. A calibrated force tester can be coupled to a portion of the trigger to test the amount of trigger pull force necessary to release a hammer of the trigger assembly. The trigger assembly enables a calibrated repeatable method of giving a user the ability to adjust the trigger system pull force by the means of a calibrated laser etched scale on the trigger housing that works in conjunction with the adjustment means.
Sep 30, 2025
An adjustment assembly having a rotary encoder, riflescopes incorporating the same, and related methods are provided. In one example, an adjustment assembly includes a first rotational component configured to rotate about an axis, a first gear coupled with the first rotational component and a second gear coupled with the first rotational component. The assembly further includes an encoder. The encoder includes a position gear engaged with the first gear, the first gear and the position gear having a 1:1 gear ratio, and a revolution gear engaged with the second gear, the second gear and the revolution gear having a gear ratio other than 1:1, wherein the gear ratio of the second gear and the revolution gear independent of a ratio of the respective diameters of the second gear and the revolution gear. Sensors may determine the rotational positions of the position sensor and the revolution sensors.
