US12774872 - Extension adapter and shooting assembly

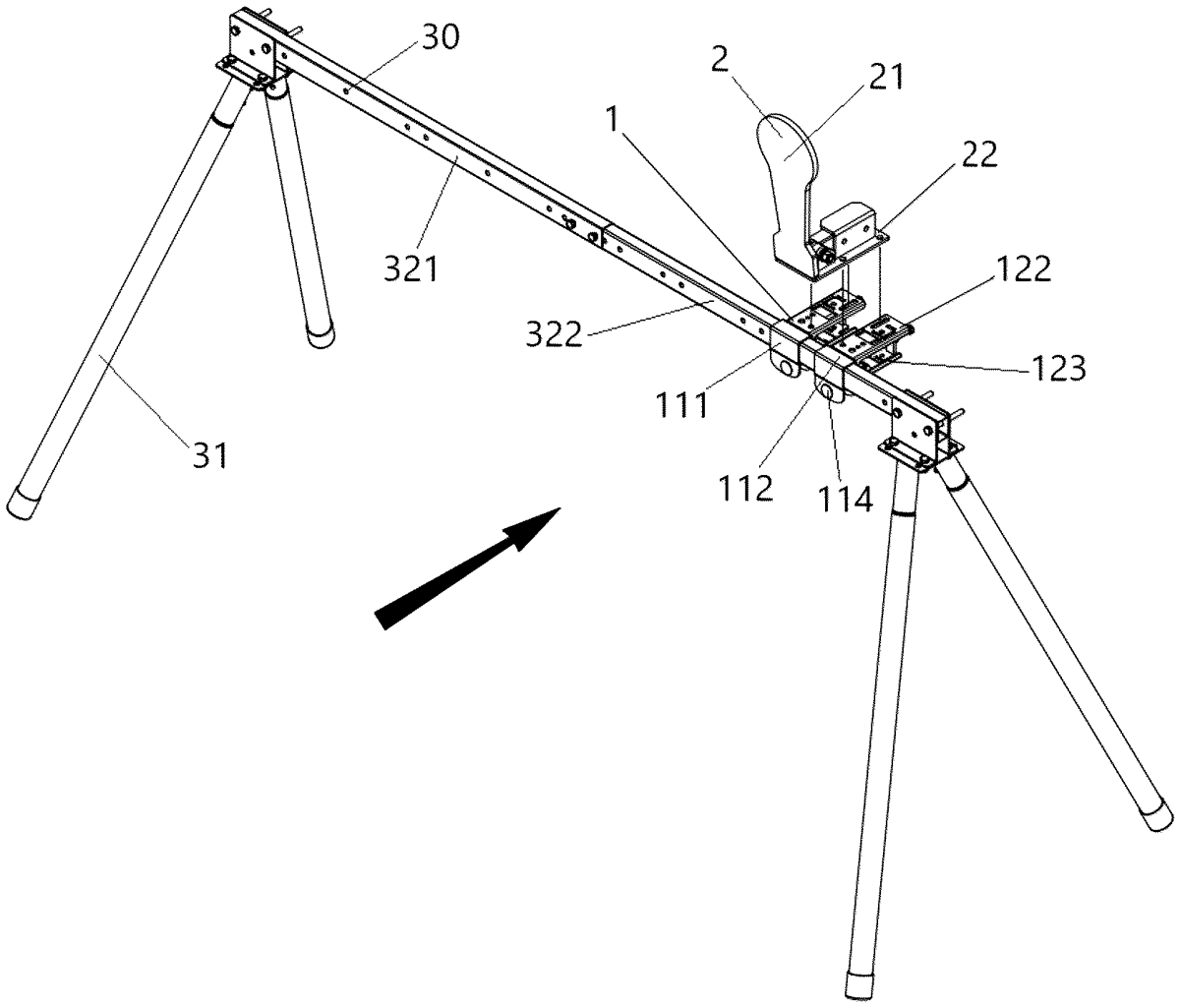

The patent describes an extension adapter designed to enhance the adaptability and stability of mounting targets on various target stands. It features a connecting member and a target mounting seat with multiple parts that allow for secure attachment of targets, accommodating different sizes and specifications.
Claim 1
1 . An extension adapter for mounting a target on a target stand, comprising: a connecting member configured for connecting to the target stand; a target mounting seat interconnected with the connecting member and configured for mounting the target, wherein the target mounting seat comprises a first part and a second part arranged parallel to each other, wherein each of the first part and the second part has an insertion hole and a fastener hole; and wherein the target mounting seat is configured to allow the target to pass sequentially through the first part and the second part; wherein the insertion hole is configured to receive a bottom of the target inserted into or screwed into the insertion hole to fix the target on the extension adapter, and wherein the fastener hole is configured to allow a fastener to pass through the fastener hole to fix the target on the extension adapter; and a fastener for the first and second part that passes through the fastener hole of one or both of the first part and the second part, wherein the target mounting seat further comprises a third part and a fastener for the third part, wherein the third part is connected perpendicularly to at least one of the first part and the second part, wherein the third part has a through hole; and wherein the fastener for the third part is configured to pass through the through hole of the third part to abut against the bottom of the target, so that the target is fixed to the target mounting seat; or the fastener for the third part is configured to pass sequentially through the through hole of the third part and the bottom of the target, so that the target is fixed to the target mounting seat. a connecting member configured for connecting to the target stand; a target mounting seat interconnected with the connecting member and configured for mounting the target, wherein the target mounting seat comprises a first part and a second part arranged parallel to each other, wherein each of the first part and the second part has an insertion hole and a fastener hole; and wherein the target mounting seat is configured to allow the target to pass sequentially through the first part and the second part; wherein the insertion hole is configured to receive a bottom of the target inserted into or screwed into the insertion hole to fix the target on the extension adapter, and wherein the fastener hole is configured to allow a fastener to pass through the fastener hole to fix the target on the extension adapter; and a fastener for the first and second part that passes through the fastener hole of one or both of the first part and the second part, wherein the target mounting seat further comprises a third part and a fastener for the third part, wherein the third part is connected perpendicularly to at least one of the first part and the second part, wherein the third part has a through hole; and wherein the fastener for the third part is configured to pass through the through hole of the third part to abut against the bottom of the target, so that the target is fixed to the target mounting seat; or the fastener for the third part is configured to pass sequentially through the through hole of the third part and the bottom of the target, so that the target is fixed to the target mounting seat.
