US12774869 - Sight for shooting system

The patent describes a sighting system for firearms that utilizes a transparent electronic display to project an image, which is then collimated by a catadioptric optical device into a sighting window. This innovative design allows the displayed image to be superimposed on the user’s direct view of the target scene.

Claim 1

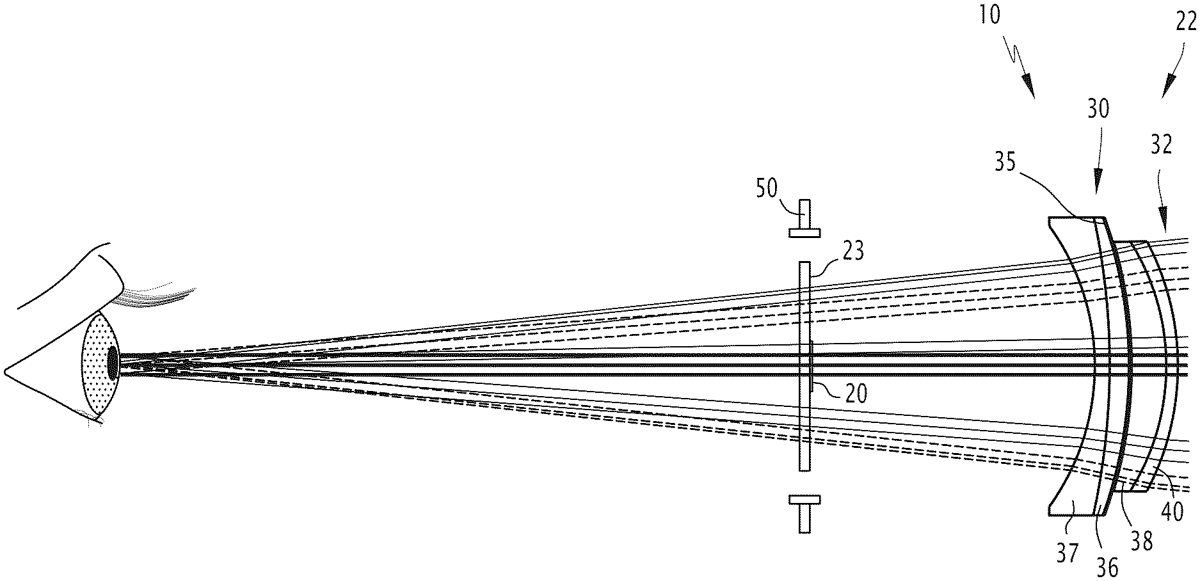

1 . A sight for a shooting system, comprising: a transparent screen comprising a transparent electronic display displaying an image on its transparent surface, the light forming the displayed image being emitted by the display; and a catadioptric optical device collimating an incident light beam, from the image displayed on said transparent screen, into a sighting window superimposed on the direct vision of a scene, the optical device presenting an exit pupil delimited by a diaphragm. a transparent screen comprising a transparent electronic display displaying an image on its transparent surface, the light forming the displayed image being emitted by the display; and a catadioptric optical device collimating an incident light beam, from the image displayed on said transparent screen, into a sighting window superimposed on the direct vision of a scene, the optical device presenting an exit pupil delimited by a diaphragm.
