US12768624 - Aerodynamically stabilized probe for a remote-acting electroshock weapon

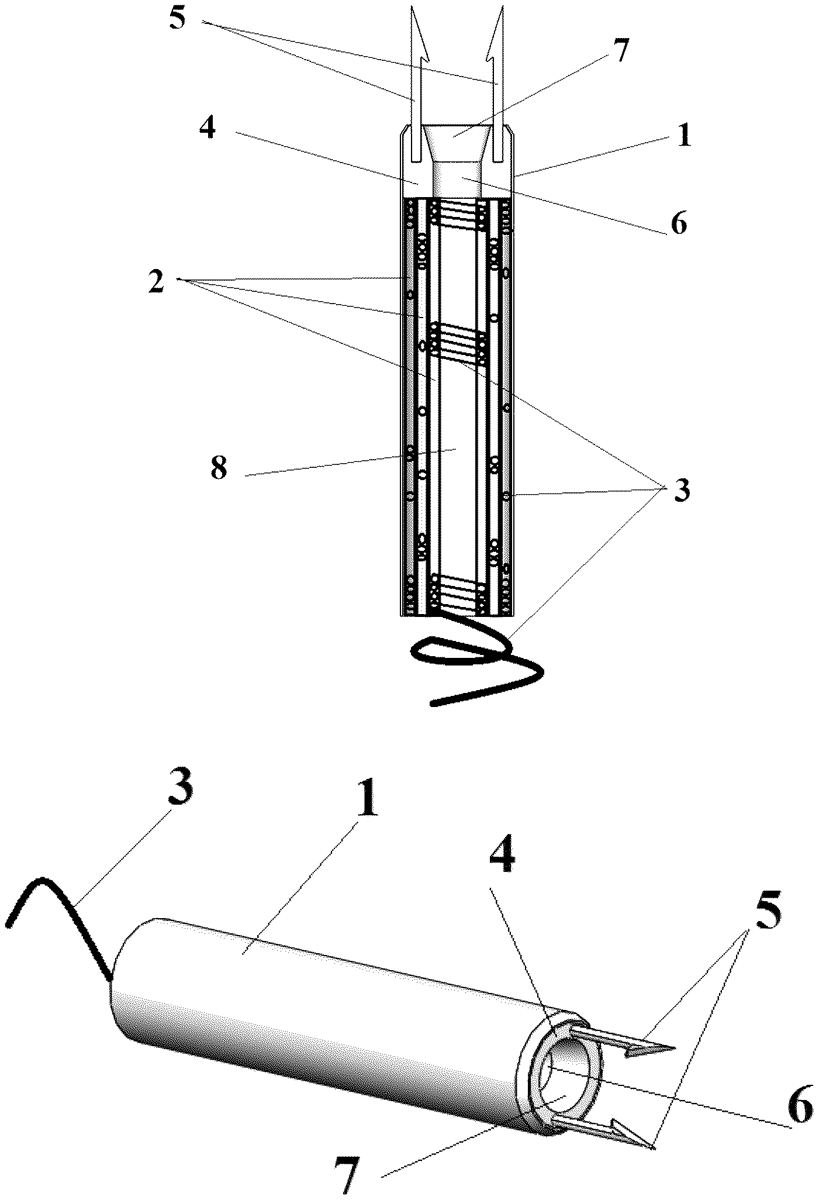

A stabilized probe for a remote-acting electroshock weapon comprises a current conducting or non-current conducting non-deformable or elastic casing with a device for attaching to a target, which is in the form of a barbed needle, inside which casing is a conducting wire arrangement in the form of a multi-layered self-supported coil with a conducting wire, and a weighting head made of a high-density metal, which is configured in the form of a tubular shell and to which at least one device for attaching to a target is radially attached. The conducting wire is arranged in layers with the coils touching one another. One end of the conducting wire is attached to the firing part of the electroshock weapon, and the other end of the conducting wire is disposed near to or is attached to the front face of the casing or to the device for attaching to a target. The end of the conducting wire extending out of the last upper layer of the arrangement is attached to the casing or to the head or is disposed near the head. The invention makes it possible to increase the precision with which the probes hit a target during firing.

Inventors: Yuriy Aleksandrovich Gabliya, Yuriy Olegovich Ladyagin
Filing date: 2021-09-20

electroshockweaponprobestabilizeddefense

The patent describes a stabilized probe for a remote-acting electroshock weapon that features a multi-layered conducting wire coil and a high-density metal weighting head to enhance target precision. The design includes a barbed needle for attachment to the target and aims to improve the effectiveness of the electroshock weapon during use.

Claim 1

1 . The stabilized remote-acting electroshock weapon probe, which contains a conductive or nonconductive non-deformable or elastic casing with a device for attaching to a target in the form of at least one barbed needle, with a conducting wire laid inside it in the form of a multilayer frameless coil with a conductor laid layer by layer coil to coil with one end of the conducting wire fixed on the firing part of the RESW and coming out of the hole formed by the first lower layer of the laying during the probe’s flight to the target, and the other end of conducting wire, coming out of the last upper layer of laying and located near or fixed on the front end of the casing or device for attaching to a target, differing in that it has a head weighting from metals with high density, made in the form of a tubular shell, on which at least one device for attaching to a target is radially fixed, and the end of conducting wire, coming out of the last upper layer of laying, is fixed on the casing or head or located near the head.
