US12761002 - Modular camouflage system and uses thereof

Multispectral camouflage systems, apparatuses, and methods describes herein may include an assembled array of one or more discrete camouflage units, wherein each of the one or more discrete camouflage units includes a composite material having at least one predetermined structurally related property and at least one predetermined camouflage-related property, and wherein each of the one or more discrete camouflage units is joined to one or more neighboring unit to provide a laterally positioned camouflage cover configured to conceal an object from visible detection, infrared detection, thermal imaging, and radar detection.

Assignee: Ametrine Technologies Ltd.
Inventors: Elad Morag, Uria Kaplan
Filing date: 2023-02-01

The patent describes a modular multispectral camouflage system composed of discrete tiles that combine various visual, infrared, and radar profiles to effectively conceal objects from multiple detection methods. Each tile can be joined laterally with others, allowing for customizable coverage tailored to specific operational needs.

Claim 1

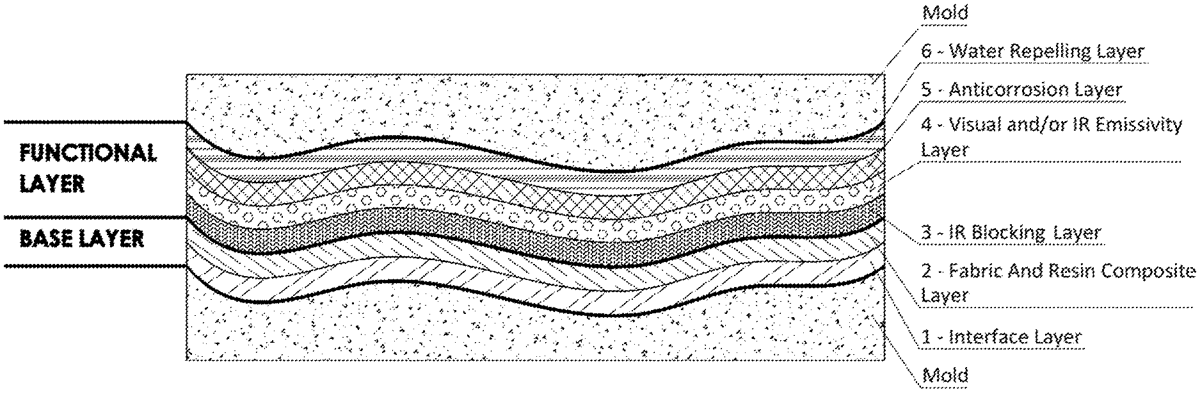

1 . A system comprising: a multispectral camouflage covering comprising: a first camouflage tile having a first camouflage profile and first plurality of layers comprising: a first visual layer having a first visual profile; and a first infrared blocking layer having a first infrared profile, the first camouflage profile comprising: the first visual profile, the first infrared profile, and a first radar profile; and a second camouflage tile having a second camouflage profile and a second plurality of layers comprising: a second visual layer having a second visual profile that differs from the first visual profile; and a second infrared blocking layer having, a second infrared profile that differs from the first infrared profile, the second camouflage profile comprising: the second visual profile, the second infrared profile, and/or a second radar profile that differs from the first radar profile, the second camouflage tile being laterally joined with the first camouflage tile, and the multispectral camouflage covering configured to cover at least a portion of an object. a multispectral camouflage covering comprising: a first camouflage tile having a first camouflage profile and first plurality of layers comprising: a first visual layer having a first visual profile; and a first infrared blocking layer having a first infrared profile, a first visual layer having a first visual profile; and a first infrared blocking layer having a first infrared profile, the first camouflage profile comprising: the first visual profile, the first infrared profile, and a first radar profile; and a second camouflage tile having a second camouflage profile and a second plurality of layers comprising: a second visual layer having a second visual profile that differs from the first visual profile; and a second infrared blocking layer having, a second infrared profile that differs from the first infrared profile, a second visual layer having a second visual profile that differs from the first visual profile; and a second infrared blocking layer having, a second infrared profile that differs from the first infrared profile, the second camouflage profile comprising: the second visual profile, the second infrared profile, and/or a second radar profile that differs from the first radar profile, the second camouflage tile being laterally joined with the first camouflage tile, and the multispectral camouflage covering configured to cover at least a portion of an object.
