Oct 13, 2026

US12760998 - Electronic display for a rifle scope turret

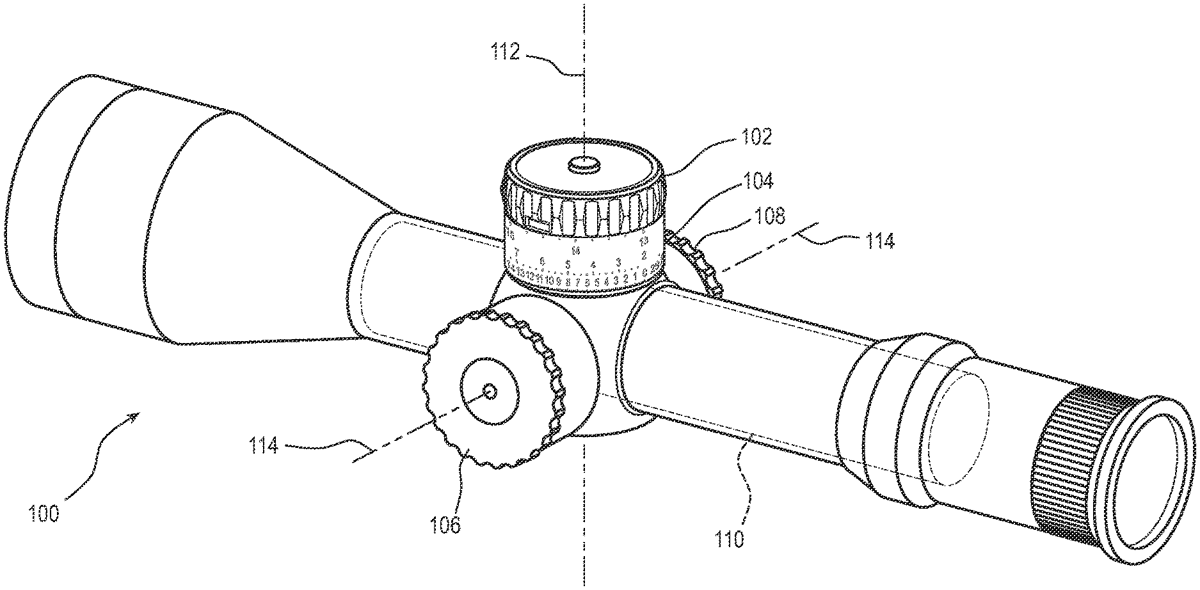

A turret of a scope can include a cap, a turret body connected to the cap, an electronic display wrapped circumferentially around the turret body, and a button positioned on or through a surface of the cap to engage the electronic display. In certain implementations, upon depressing the button, the electronic display presents a graphical visualization. In addition, the graphical visualization can include at least one of distance compensation data, a ballistic profile, or environmental conditions.

Assignee: GUNWERKS, LLC
Inventors: Aaron Davidson, Haizhou Li
Filing date: 2022-06-02

firearmscopeturretoptics

The patent describes a rifle scope turret featuring an electronic display that provides graphical visualizations, such as distance compensation data and ballistic profiles, when activated by a button. This innovative design aims to enhance the functionality and user experience of rifle scopes.

Claim 1

1 . A turret of a scope, comprising: a cap; a turret body connected to the cap; an electronic display wrapped circumferentially around the turret body; and an actuator to engage the electronic display. a cap; a turret body connected to the cap; an electronic display wrapped circumferentially around the turret body; and an actuator to engage the electronic display.
