Oct 6, 2026

US12753990 - Firearm bracket

A firearm bracket suitable for mounting a pistol to a rifle may include a bracket body. At least one rifle attachment rail slot may be provided in the bracket body. The rifle attachment rail slot may facilitate attachment of the firearm bracket to a rifle attachment rail on a rifle. At least one pistol opening may extend through the bracket body. The pistol opening may be suitably sized and configured to receive the barrel of at least one pistol. Accordingly, in typical application of the firearm bracket, the rifle attachment rail on the rifle may engaged with the rifle attachment rail slot in the bracket body. The barrel of the pistol may be extended through the pistol opening in the bracket body. The user of the firearm bracket may grasp the rifle grip on the rifle with one hand and the pistol grip on the pistol with the other hand to achieve better stability and comfort and ready firing access to both the rifle and the pistol during target practice, hunting, law enforcement or military exercises.

Inventors: James Barker
Filing date: 2023-07-12

firearmbracketmountingpistolrifle

The patent describes a firearm bracket designed to securely mount a pistol to a rifle, featuring a bracket body with attachment rail slots for both the rifle and pistol, as well as a tension adjustment mechanism for a customized fit. This innovative design allows users to maintain stability and accessibility to both firearms during various activities such as target practice and law enforcement operations.

Claim 1

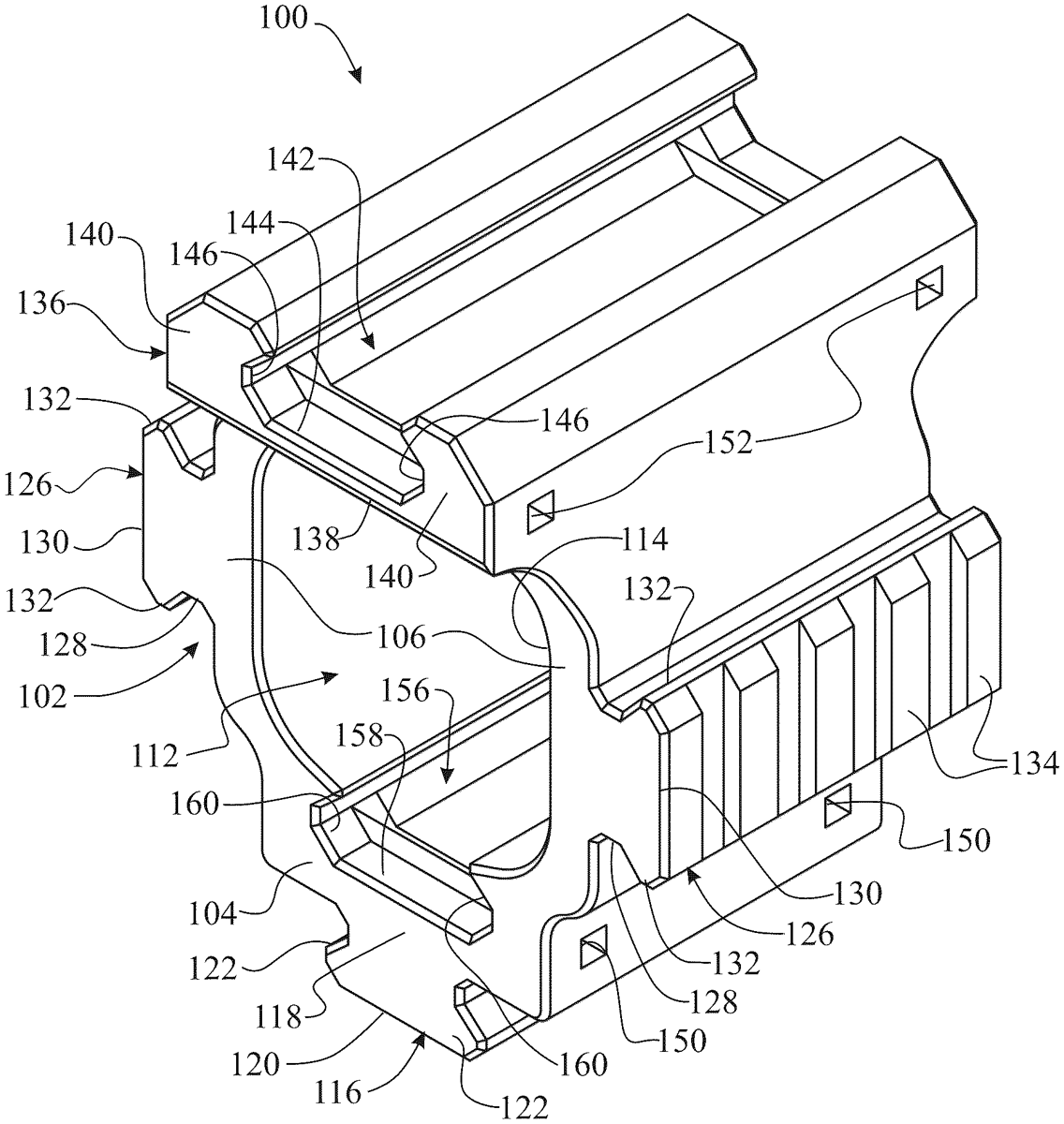

1 . A firearm bracket suitable for mounting a pistol to a rifle, comprising: a bracket body including a bottom bracket body wall, a pair of spaced-apart side bracket body walls extending from the bottom bracket body wall, and a top bracket body wall extending between the side bracket body walls; at least one rifle attachment rail slot in the bracket body, the at least one rifle attachment rail slot configured to facilitate attachment of the firearm bracket to a rifle attachment rail on a rifle, including a locking mechanism; wherein the rifle attachment rail slot is provided in a rifle slot housing on the bracket body, the rifle slot housing including a housing base extending outwardly from the bracket body and a pair of spaced-apart side housing portions extending longitudinally from the housing base, and wherein the rifle attachment rail slot is formed by and between the housing base and the side housing portions, with an inner slot portion extending along the housing base and a pair of elongated, parallel, spaced-apart side slot portions extending along the respective side housing portions; at least one pistol opening extending through the bracket body, the at least one pistol opening suitably sized and configured to receive a barrel of at least one pistol, wherein the pistol opening includes a pistol attachment rail slot for securing the pistol to the bracket, the pistol opening including an interior pistol opening surface, and the pistol attachment rail slot extending into the interior pistol opening surface and into the bottom bracket body wall, further including a tension adjustment mechanism comprising a set screw disposed in communication with the pistol attachment rail slot, the set screw being received in a pistol set screw opening extending laterally into the bracket body, the set screw being configured to engage a pistol attachment rail on the pistol barrel to apply variable compressive force based on the size and configuration of the pistol; and at least one exterior bracket attachment rail extending along the bracket body, including a pair of side bracket attachment rails extending from the respective side bracket body walls, each side bracket attachment rail having a side rail base, a side rail head, and a pair of elongated, parallel, spaced-apart side rail flanges extending along the side rail head, with a plurality of spaced-apart side rail ridges provided on the side rail head, and a bottom bracket attachment rail extending from the bottom bracket body wall, the bottom bracket attachment rail including a bottom rail base, a bottom rail head, a pair of elongated, parallel, spaced-apart bottom rail flanges extending along the bottom rail head, and a plurality of spaced-apart bottom rail ridges on the bottom rail head. a bracket body including a bottom bracket body wall, a pair of spaced-apart side bracket body walls extending from the bottom bracket body wall, and a top bracket body wall extending between the side bracket body walls; at least one rifle attachment rail slot in the bracket body, the at least one rifle attachment rail slot configured to facilitate attachment of the firearm bracket to a rifle attachment rail on a rifle, including a locking mechanism; wherein the rifle attachment rail slot is provided in a rifle slot housing on the bracket body, the rifle slot housing including a housing base extending outwardly from the bracket body and a pair of spaced-apart side housing portions extending longitudinally from the housing base, and wherein the rifle attachment rail slot is formed by and between the housing base and the side housing portions, with an inner slot portion extending along the housing base and a pair of elongated, parallel, spaced-apart side slot portions extending along the respective side housing portions; at least one pistol opening extending through the bracket body, the at least one pistol opening suitably sized and configured to receive a barrel of at least one pistol, wherein the pistol opening includes a pistol attachment rail slot for securing the pistol to the bracket, the pistol opening including an interior pistol opening surface, and the pistol attachment rail slot extending into the interior pistol opening surface and into the bottom bracket body wall, further including a tension adjustment mechanism comprising a set screw disposed in communication with the pistol attachment rail slot, the set screw being received in a pistol set screw opening extending laterally into the bracket body, the set screw being configured to engage a pistol attachment rail on the pistol barrel to apply variable compressive force based on the size and configuration of the pistol; and at least one exterior bracket attachment rail extending along the bracket body, including a pair of side bracket attachment rails extending from the respective side bracket body walls, each side bracket attachment rail having a side rail base, a side rail head, and a pair of elongated, parallel, spaced-apart side rail flanges extending along the side rail head, with a plurality of spaced-apart side rail ridges provided on the side rail head, and a bottom bracket attachment rail extending from the bottom bracket body wall, the bottom bracket attachment rail including a bottom rail base, a bottom rail head, a pair of elongated, parallel, spaced-apart bottom rail flanges extending along the bottom rail head, and a plurality of spaced-apart bottom rail ridges on the bottom rail head.
