US12747923 - Trigger block

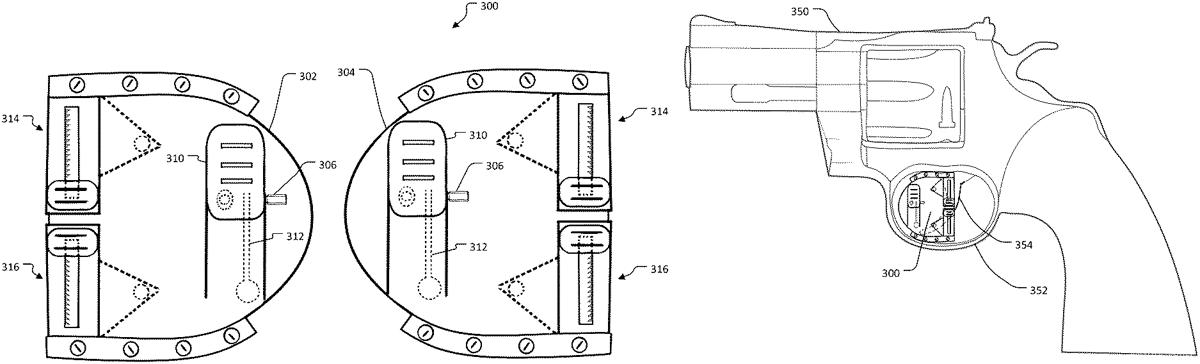

A plurality of trigger blocks are described. An embodiment of the trigger block can be implemented as a slide trigger block adapted to shroud a trigger to aid in preventing accidental discharges of a firearm. The slide trigger block can implement slide trigger block can include frame members each having an engagement assembly to removably couple to one another.

Assignee: James Montgomery
Inventors: James Montgomery
Filing date: 2025-06-12

triggerfirearmsafety

The patent describes a trigger block designed to shroud a firearm’s trigger within its trigger guard, preventing accidental discharges. It consists of two frame members with engagement assemblies that securely couple together, along with locking members to restrict their movement.

Claim 1

1 . A trigger block for shrouding a trigger in a trigger guard, the trigger block comprising: a first frame member having a first engagement assembly; a second frame member having a second engagement assembly adapted to removably mate to the first engagement assembly, the first frame member and the second frame member shrouding the trigger and being located substantially within the trigger guard when mated; a first locking member adapted to restrict movement of the first engagement assembly; and a second locking member adapted to restrict movement of the second engagement assembly. a first frame member having a first engagement assembly; a second frame member having a second engagement assembly adapted to removably mate to the first engagement assembly, the first frame member and the second frame member shrouding the trigger and being located substantially within the trigger guard when mated; a first locking member adapted to restrict movement of the first engagement assembly; and a second locking member adapted to restrict movement of the second engagement assembly.
