US12742609 - Toy rifle

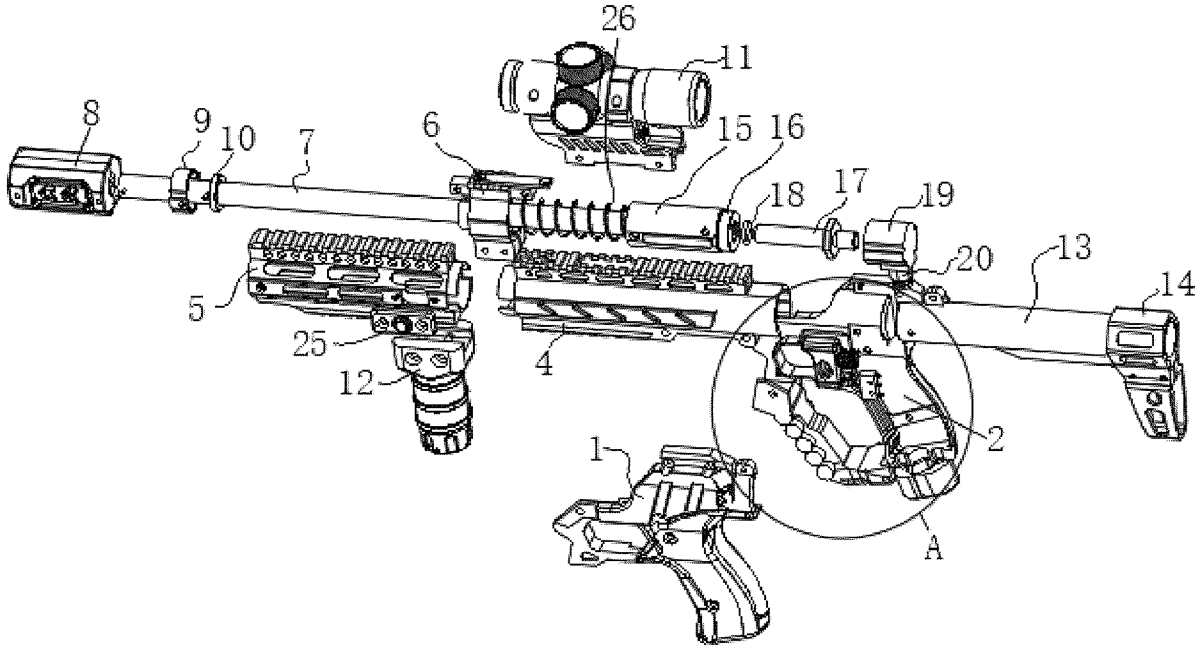

A toy rifle, including a first grip, a second grip, a front frame, a rear frame, a sliding component, a trigger and a restrainer; the first grip and second grip are respectively provided with a grip protector; the front frame is mounted on the first grip and second grip; the sliding component further includes a cylinder, a gas nozzle, a gas transmission unit, and a restrainer; when a player pulls the trigger, an external gas pump communicates with the cylinder through a pipe; an air pressure drives the sliding component to move and produce a reverse force, thereby forming a recoil force; the recoil force works back on the player, thereby increasing a simulation effect and experience.

Assignee: Guangzhou Huoshi Chuanyu Technology Co., Ltd.
Inventors: Jiu Huang, Chunyang Wang, Zhaofeng Yan, Haiyu Dai, Baoqi Wang, Xiaoqin Shi
Filing date: 2024-05-17

toyriflepneumaticairgun

The patent describes a toy rifle designed to simulate recoil through a gas-powered sliding component that moves when the trigger is pulled, enhancing the play experience. It includes various features such as grip protectors, a gas nozzle, and a sight component, all aimed at creating a realistic and engaging toy firearm.

Claim 1

1 . A toy rifle, which comprises a first grip, a second grip, a front frame, and a rear frame, the first grip and the second grip are respectively connected with a grip protector, and the first grip and the second grip are fixedly connected to the front frame, which is connected with the rear frame, wherein the toy rifle further comprises a sliding component, which comprises an inner tube, a silencer, a sliding block and a cylinder; the front frame and the rear frame are connected with the sliding component; wherein the toy rifle further comprises a gas nozzle restrainer, which is installed on an upper end inside the first grip and the second grip, adjacent to the front frame; wherein the toy rifle further comprises a gas nozzle, which connects to the gas nozzle restrainer; wherein the toy rifle further comprises a gas transmission unit, which connects to a lower end of the gas nozzle restrainer; wherein the toy rifle further comprises a trigger, which connects to the first grip and the second grip; wherein the toy rifle further comprises a microswitch, which is arranged inside the first grip and second grip; wherein the toy rifle further comprises a restrainer, which is arranged on a lower end of the first grip and the second grip; wherein the toy rifle further comprises a sight component, which is mounted on the front frame; and wherein the toy rifle further comprises a front grip and a button component; the front grip and the button component are arranged on the rear frame. wherein the toy rifle further comprises a sliding component, which comprises an inner tube, a silencer, a sliding block and a cylinder; the front frame and the rear frame are connected with the sliding component; wherein the toy rifle further comprises a gas nozzle restrainer, which is installed on an upper end inside the first grip and the second grip, adjacent to the front frame; wherein the toy rifle further comprises a gas nozzle, which connects to the gas nozzle restrainer; wherein the toy rifle further comprises a gas transmission unit, which connects to a lower end of the gas nozzle restrainer; wherein the toy rifle further comprises a trigger, which connects to the first grip and the second grip; wherein the toy rifle further comprises a microswitch, which is arranged inside the first grip and second grip; wherein the toy rifle further comprises a restrainer, which is arranged on a lower end of the first grip and the second grip; wherein the toy rifle further comprises a sight component, which is mounted on the front frame; and wherein the toy rifle further comprises a front grip and a button component; the front grip and the button component are arranged on the rear frame.
