Sep 15, 2026

US12736306 - Protective cover for an optic device

Viewing optics, and more particularly a protective cover for a viewing optic is disclosed herein. In one embodiment, a cover including a frame with one or more holes configured to slide over one or more mounting studs, a connector coupling the frame to a protective material, the protective material configured to cover a viewing window is disclosed.

Assignee: Sheltered Wings, Inc.
Inventors: Calen Havens, William Lowry, Sam Hamilton, Ian Klemm, Tom Cody, Garrison Bollig, Cory Taylor, Tim Rue, Alexander Lewis, Tony Palzkill, Zach Sausen
Filing date: 2023-07-20

opticcoverprotective

The patent describes a protective cover designed for viewing optics, specifically a laser rangefinder, which features a frame that can be easily attached to the device using mounting studs. This cover includes a protective material that shields the viewing window from damage while maintaining accessibility.

Claim 1

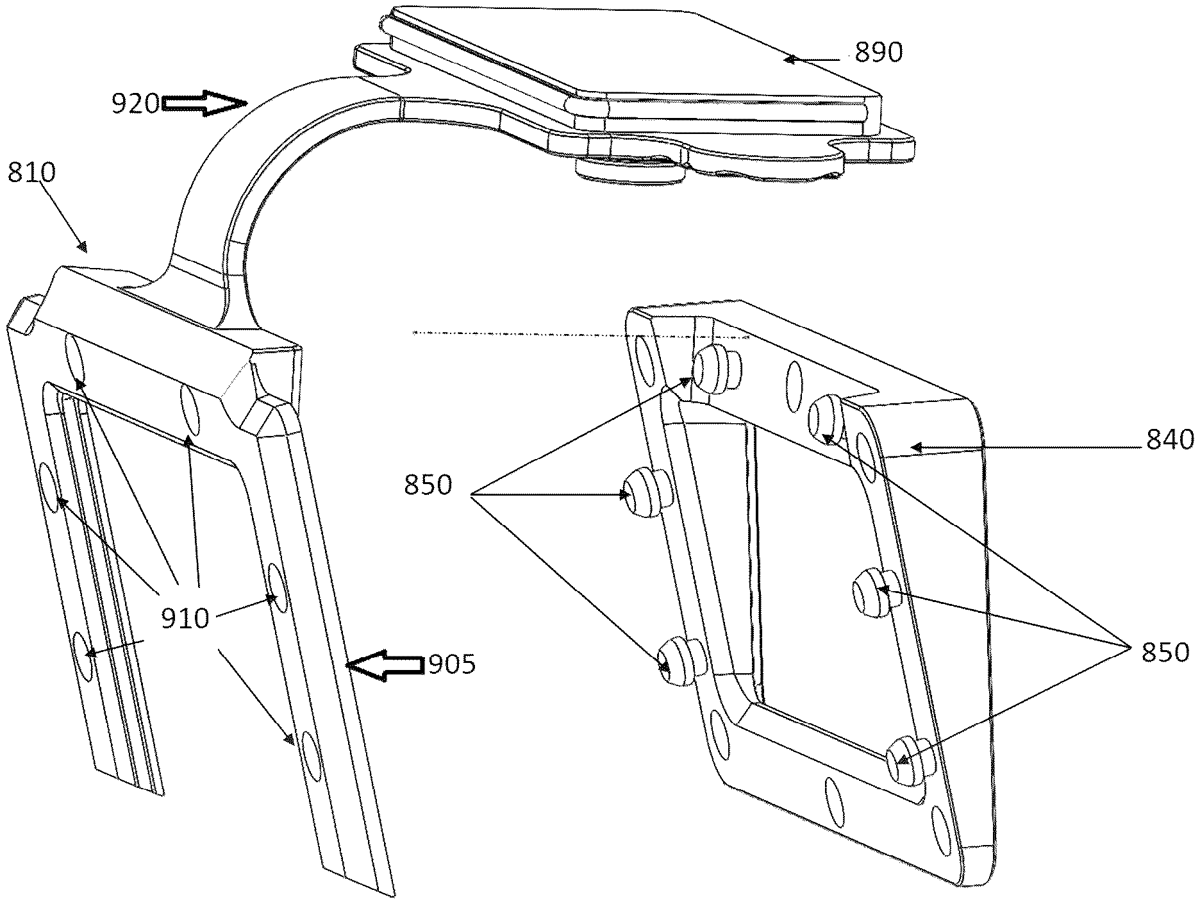

1 . A system comprising: a laser rangefinder for a viewing optic, the laser rangefinder having a viewing window and a window frame that surrounds at least a portion of the viewing window, the window frame having one or more mounting studs, and a cover having a frame with one or more holes configured to slide over the one or more mounting studs of the window frame, a protective material configured to cover the viewing window of the laser rangefinder; and a connector coupling the frame to the protective material.
