US12736300 - Automatic shooting device of toy gun
The patent describes an automatic shooting device for a toy gun that utilizes a laser detection system to identify target objects and initiate shooting operations. This system enhances gameplay by allowing for automatic shooting based on accurate and long-range detection capabilities.
Claim 1

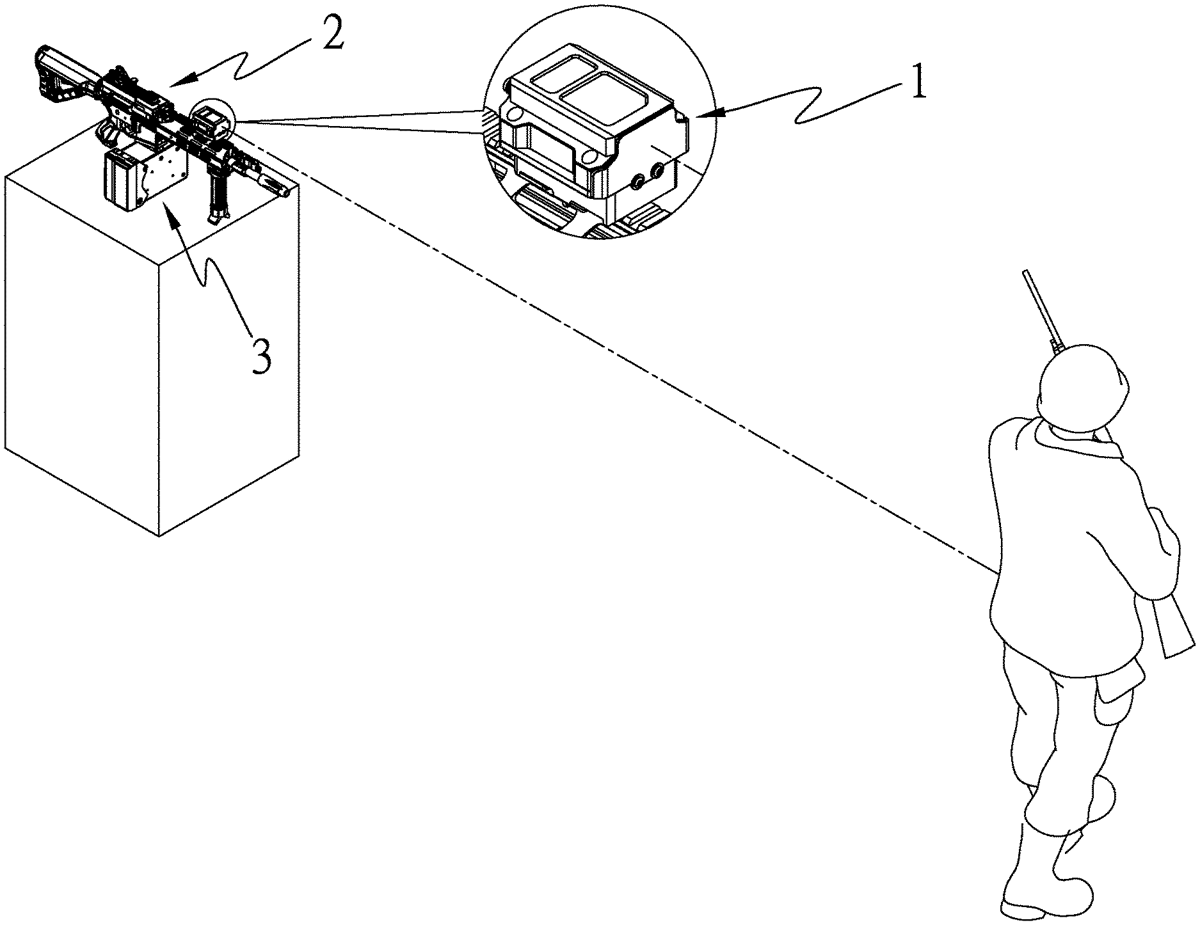

1 . A toy gun automatic shooting device, mainly comprising: a laser detection device, which detects whether a target object enters a range of detection of the laser detection device; a toy gun body, which is arranged at one side of the laser detection device and comprises a shooting module and an electronic trigger module operatively connected with the shooting module; and a reaction device, which is arranged on the toy gun body and comprises: a shot storage module, which receives therein a plurality of shots, a control substrate, which is arranged at one side of the shot storage module and is in information connection with the laser detection device to receive a signal of detection by the laser detection device and control the electronic trigger module to drive the shooting module to carry out a shooting operation, wherein the control substrate comprises a loudspeaker device to give off sounding corresponding to a status of the control substrate, and an electrical power supply unit, which is in electrical connection with the control substrate, wherein, when the laser detection device detects the target object enters the range of detection of the laser detection device, the laser detection device immediately transmits the signal of detection to the control substrate, and the control substrate receives the signal of detection and then transmits a shooting signal to control the electronic trigger module to drive the shooting module to carry out a shooting operation. a laser detection device, which detects whether a target object enters a range of detection of the laser detection device; a toy gun body, which is arranged at one side of the laser detection device and comprises a shooting module and an electronic trigger module operatively connected with the shooting module; and a reaction device, which is arranged on the toy gun body and comprises: a shot storage module, which receives therein a plurality of shots, a control substrate, which is arranged at one side of the shot storage module and is in information connection with the laser detection device to receive a signal of detection by the laser detection device and control the electronic trigger module to drive the shooting module to carry out a shooting operation, wherein the control substrate comprises a loudspeaker device to give off sounding corresponding to a status of the control substrate, and an electrical power supply unit, which is in electrical connection with the control substrate, wherein, when the laser detection device detects the target object enters the range of detection of the laser detection device, the laser detection device immediately transmits the signal of detection to the control substrate, and the control substrate receives the signal of detection and then transmits a shooting signal to control the electronic trigger module to drive the shooting module to carry out a shooting operation.
