Sep 15, 2026

US12736298 - Bow holder retention apparatus and associated systems and methods

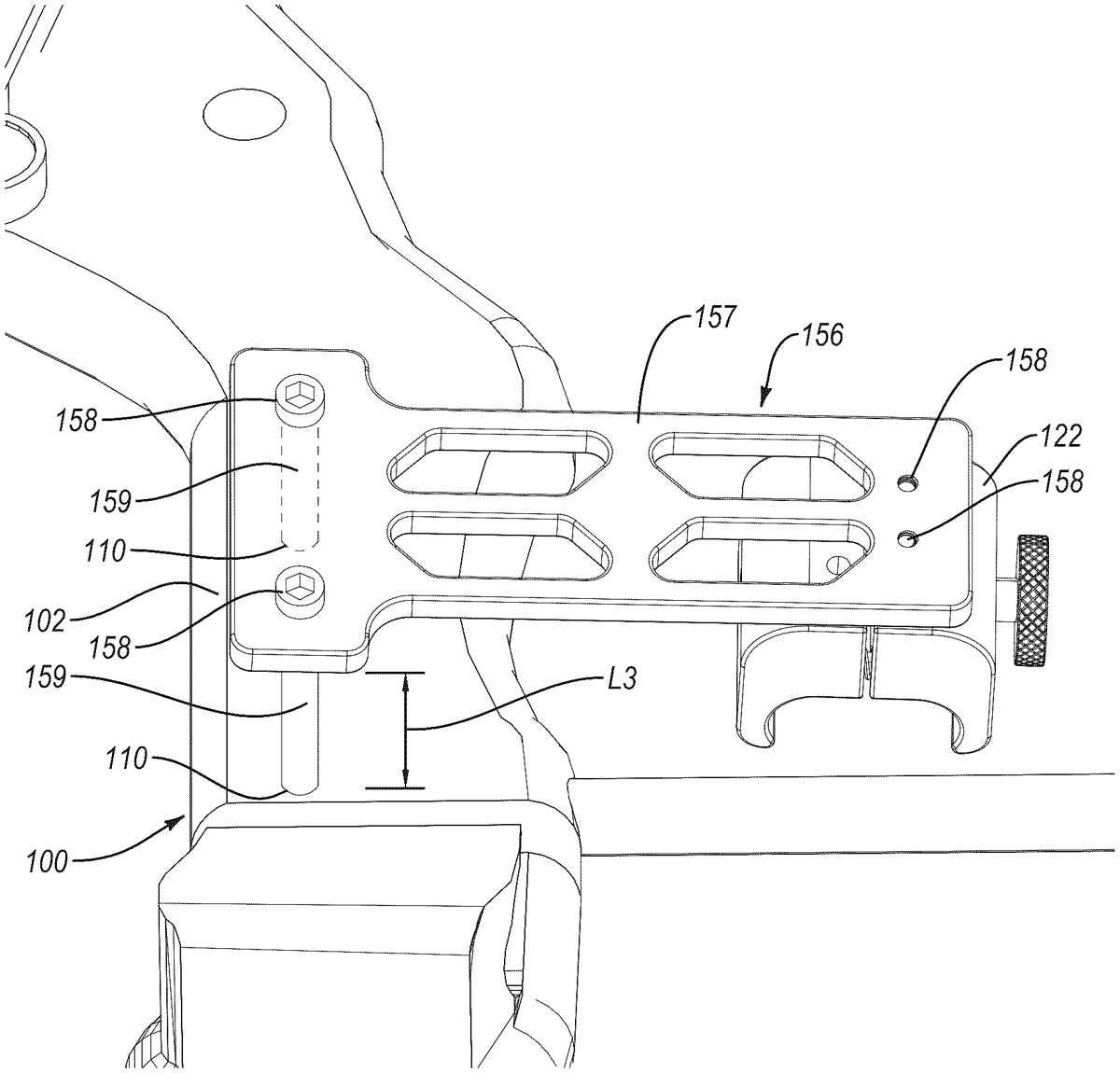

Disclosed herein is a bow holder retention apparatus. The bow holder retention apparatus includes a body portion having a first retention end and a second retention end positioned in proximity to each other. The bow holder retention apparatus also includes at least one securing element configured to releasably secure the first retention end relative to the second retention end. The bow holder retention apparatus further includes at least one attachment element configured to attach the body portion to a bow. An inner surface of the body portion defines a retention opening configured to removably retain a bow holder when the at least one securing element is releasably securing the first retention end relative to the second retention end.

Inventors: Mike L. Lance
Filing date: 2024-07-01

bowholderretentionapparatus

The patent describes a bow holder retention apparatus that features a body with two retention ends and a retention opening designed to securely hold a bow holder. It includes securing elements for maintaining the retention ends together and attachment elements for connecting the apparatus to a bow.

Claim 1

1 . A bow holder retention apparatus, comprising: a body portion comprising a first retention end and a second retention end positioned in proximity to each other, the body portion having an inner surface that is at least partially curved and defines a retention opening, and the body portion having at least one attachment aperture extending within the retention opening; at least one securing element configured to releasably secure the first retention end relative to the second retention end; and at least one attachment element configured to attach the body portion to a bow, wherein the at least one attachment element is receivable within the at least one attachment aperture; wherein the retention opening is configured to removably retain a bow holder when the at least one securing element is releasably securing the first retention end relative to the second retention end. a body portion comprising a first retention end and a second retention end positioned in proximity to each other, the body portion having an inner surface that is at least partially curved and defines a retention opening, and the body portion having at least one attachment aperture extending within the retention opening; at least one securing element configured to releasably secure the first retention end relative to the second retention end; and at least one attachment element configured to attach the body portion to a bow, wherein the at least one attachment element is receivable within the at least one attachment aperture; wherein the retention opening is configured to removably retain a bow holder when the at least one securing element is releasably securing the first retention end relative to the second retention end.
